Home >> Lexus >> 2007 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Power Window Control System >> Parts Location

Parts Location

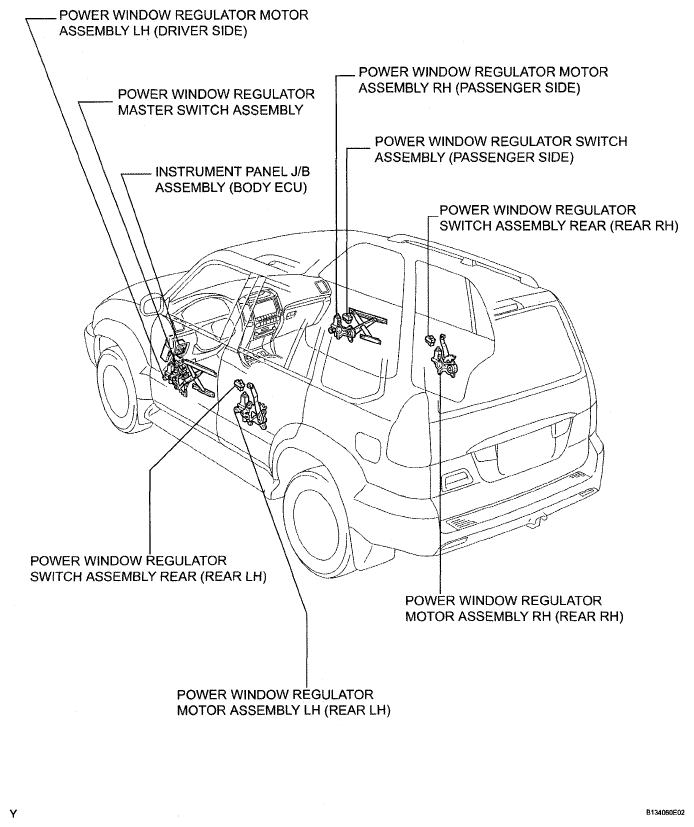

Fig 1: Identifying Power Window Control System Replacement Components (1 Of 2)
G05266722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

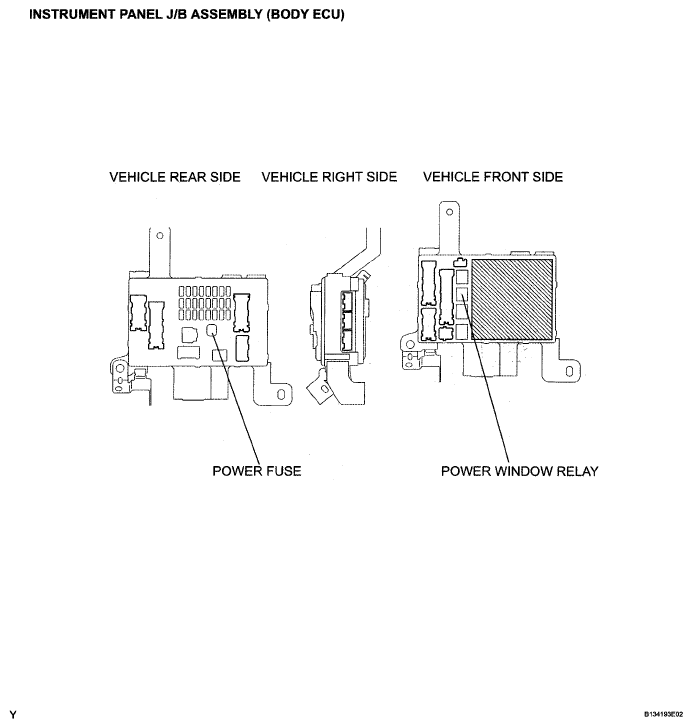

Fig 2: Identifying Power Window Control System Replacement Components (2 Of 2)
G05266723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
