Windshield Glass: Components

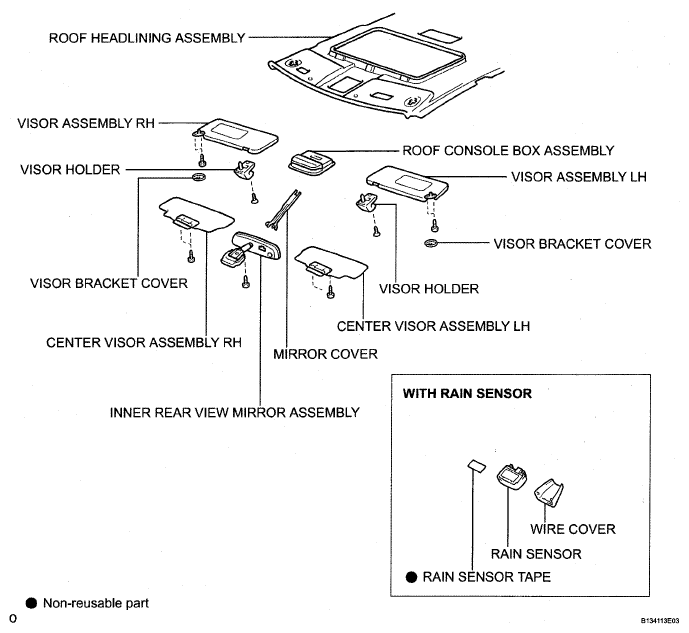

Fig 1: Identifying Windshield Glass Replacement Components
G05266781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

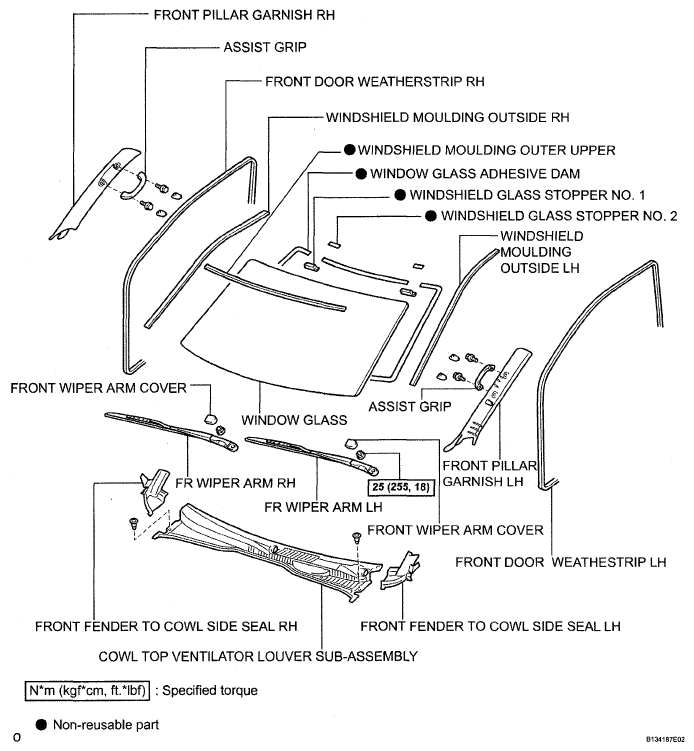

Fig 2: Windshield Glass Replacement Components With Torque Specifications
G05266782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
