Cigarette Lighter Assembly: Components

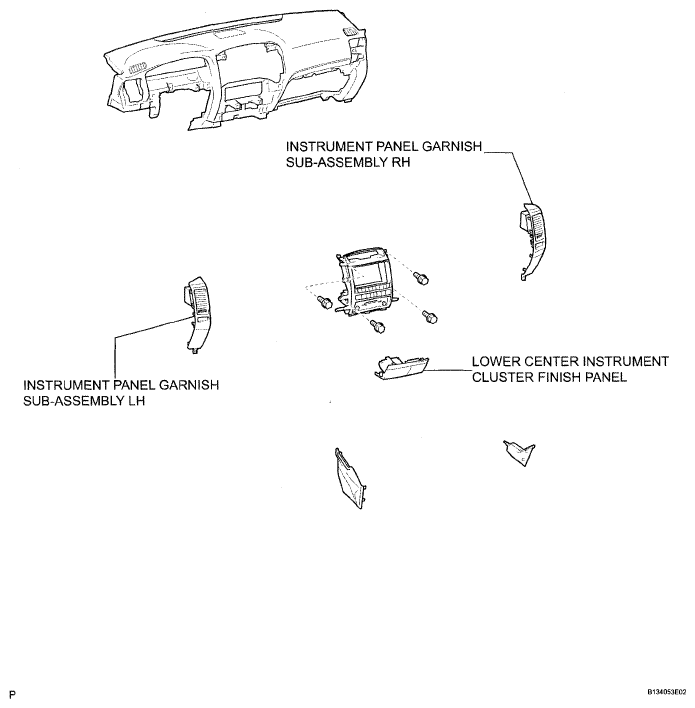

Fig 1: Identifying Cigarette Lighter Assembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

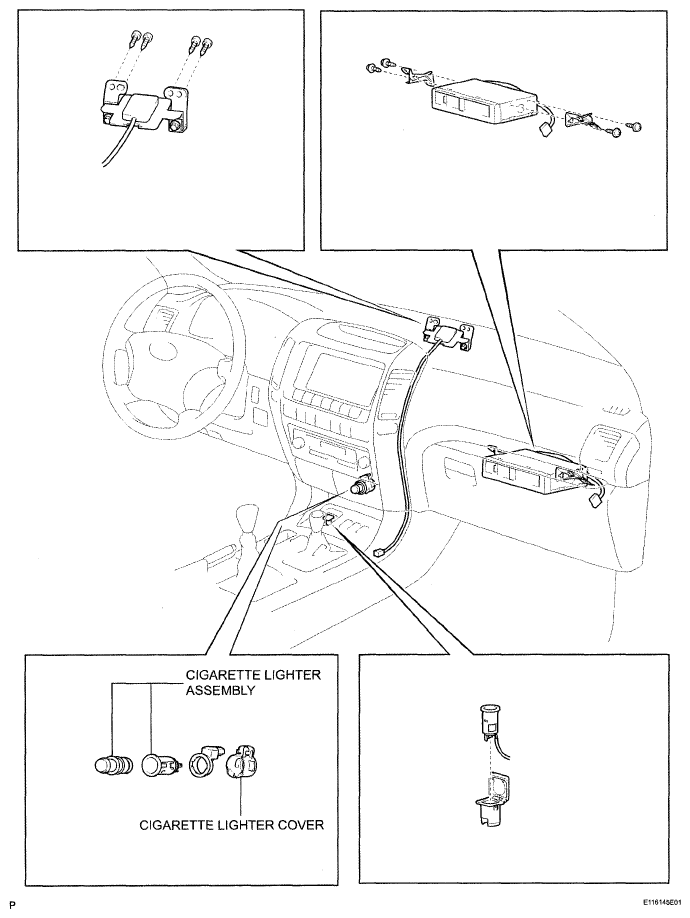

Fig 2: Identifying Cigarette Lighter Assembly Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

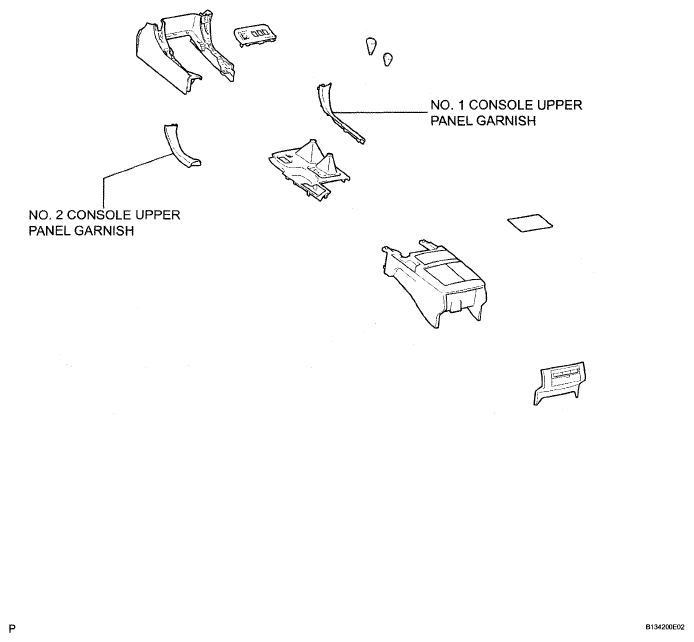

Fig 3: Identifying Cigarette Lighter Assembly Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
