Power Outlet Socket: Components

Fig 1: Identifying Power Outlet Socket Components (1 Of 2)
G05266710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

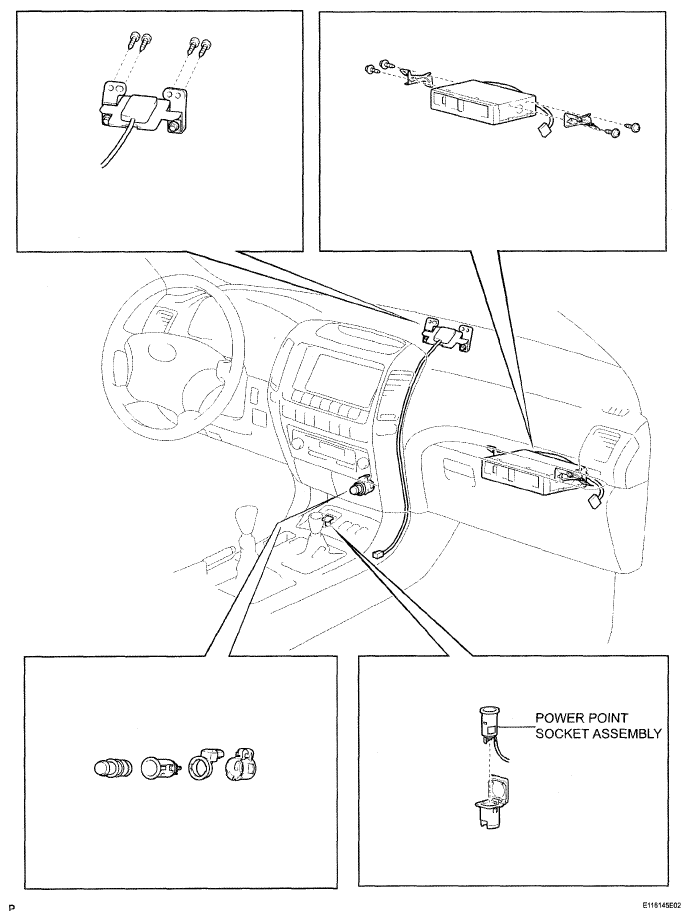

Fig 2: Identifying Power Outlet Socket Components (2 Of 2)
G05266711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
