Audio System with LEXUS Navigation System
>>
Notes
Audio System with LEXUS Navigation System: Notes

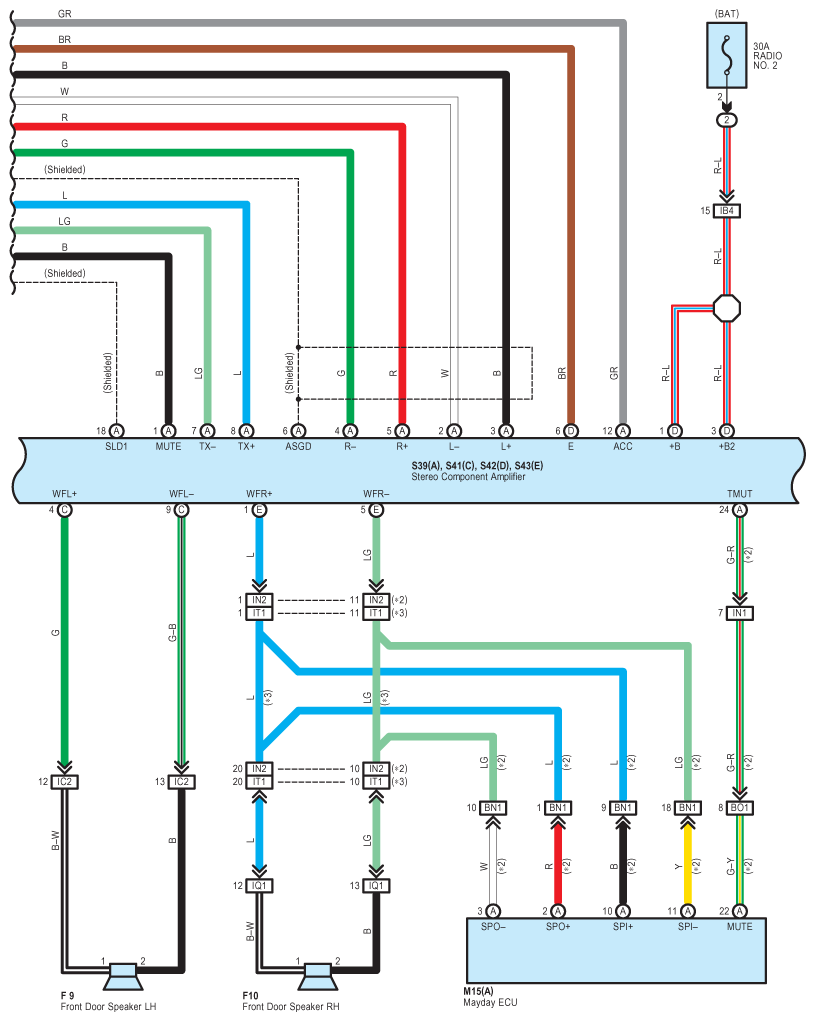

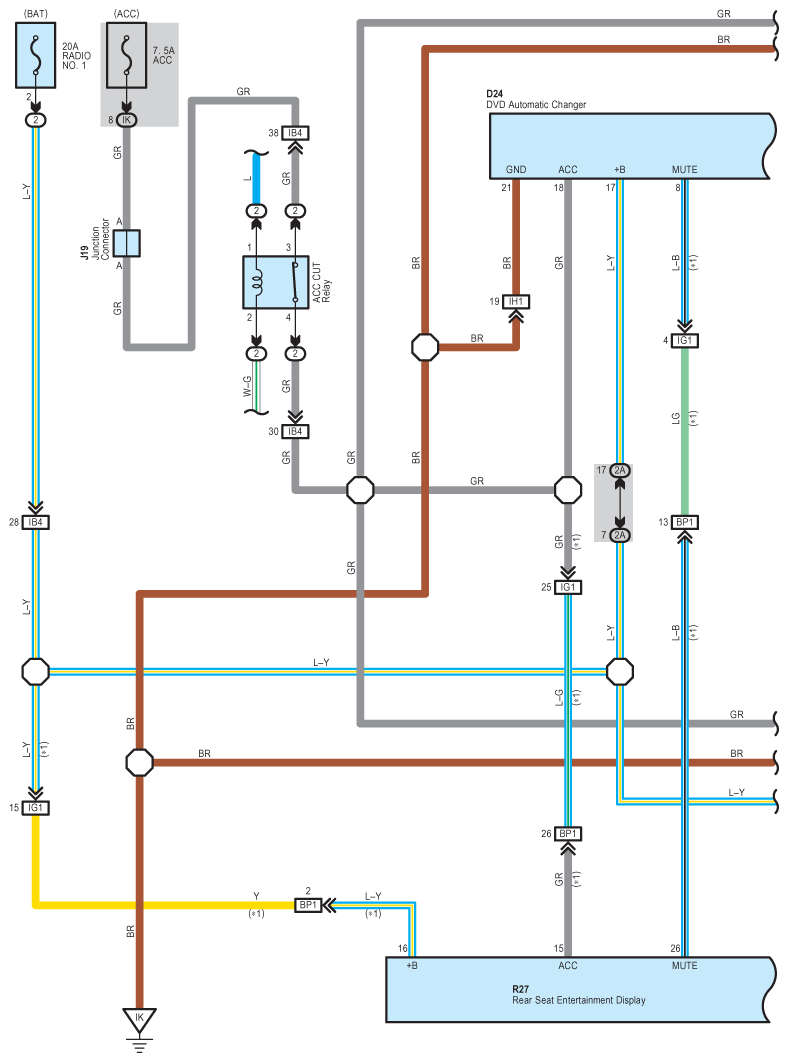

Fig 1: Audio System With LEXUS Navigation System Wiring Diagram (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

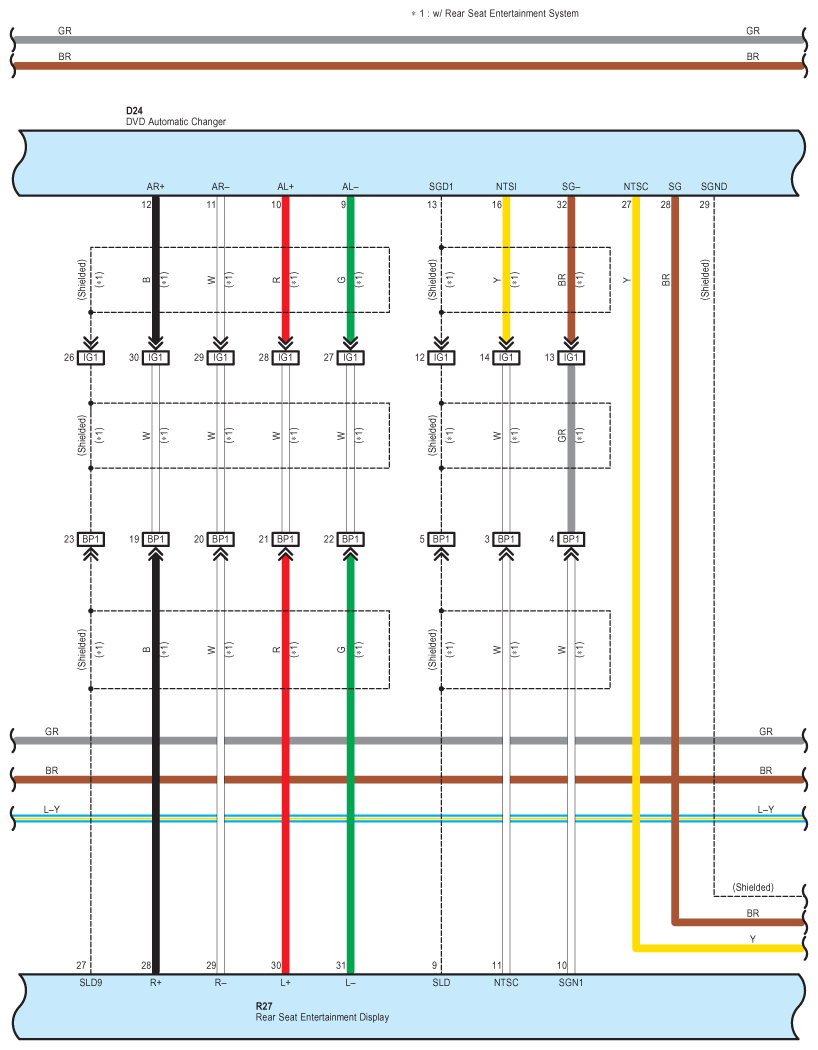

Fig 2: Audio System With LEXUS Navigation System Wiring Diagram (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

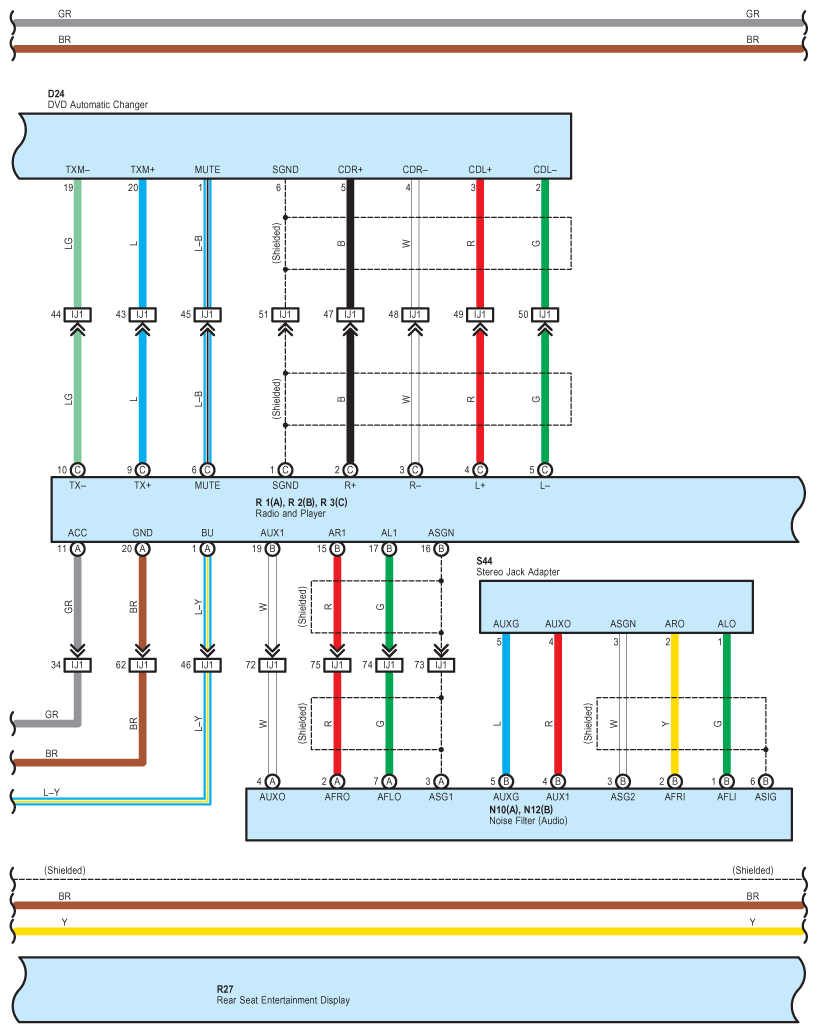

Fig 3: Audio System With LEXUS Navigation System Wiring Diagram (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

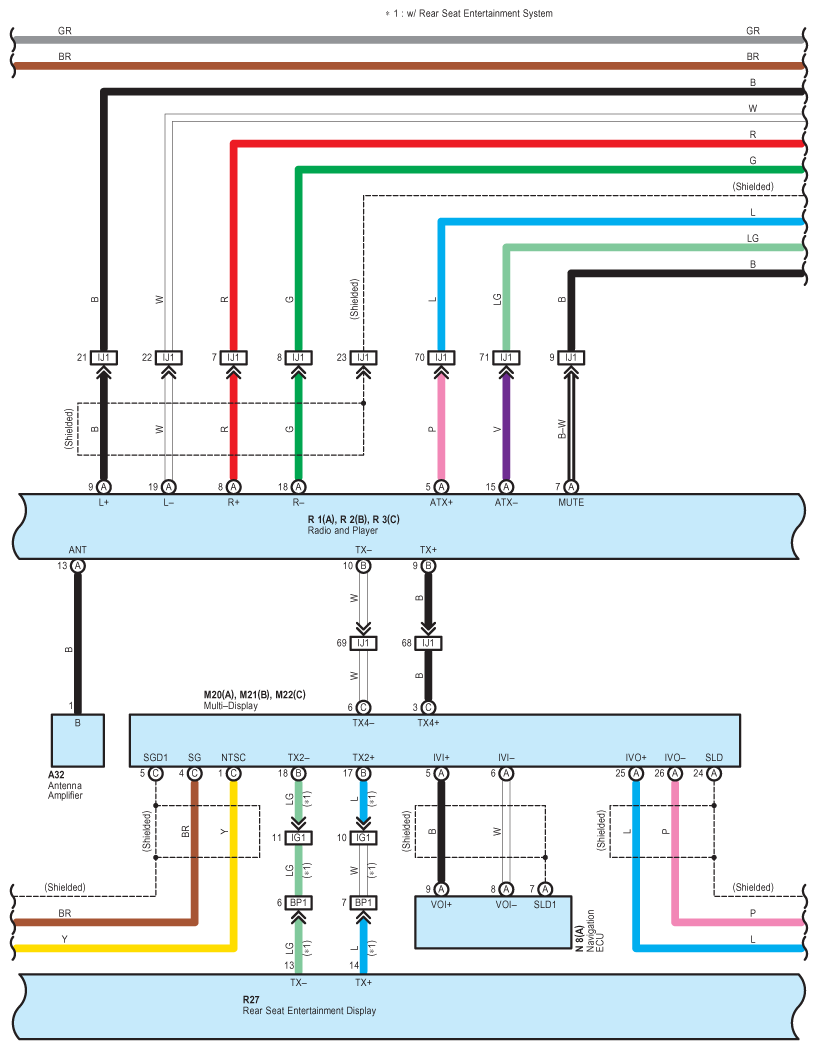

Fig 4: Audio System With LEXUS Navigation System Wiring Diagram (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

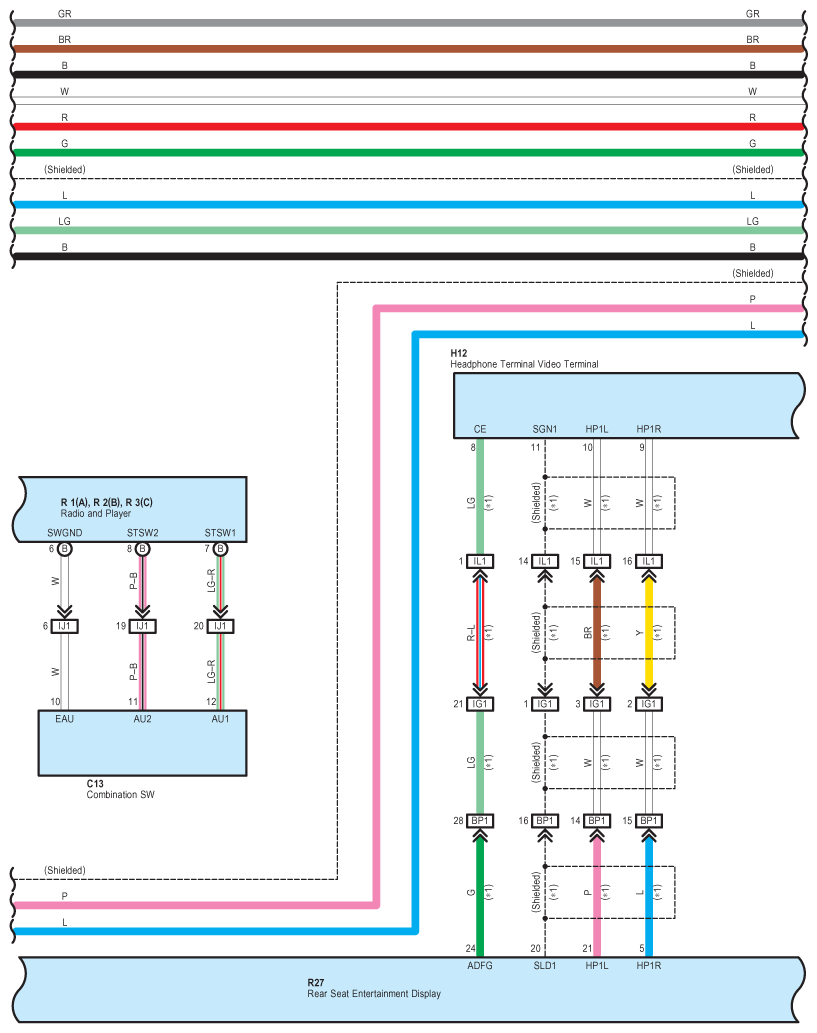

Fig 5: Audio System With LEXUS Navigation System Wiring Diagram (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

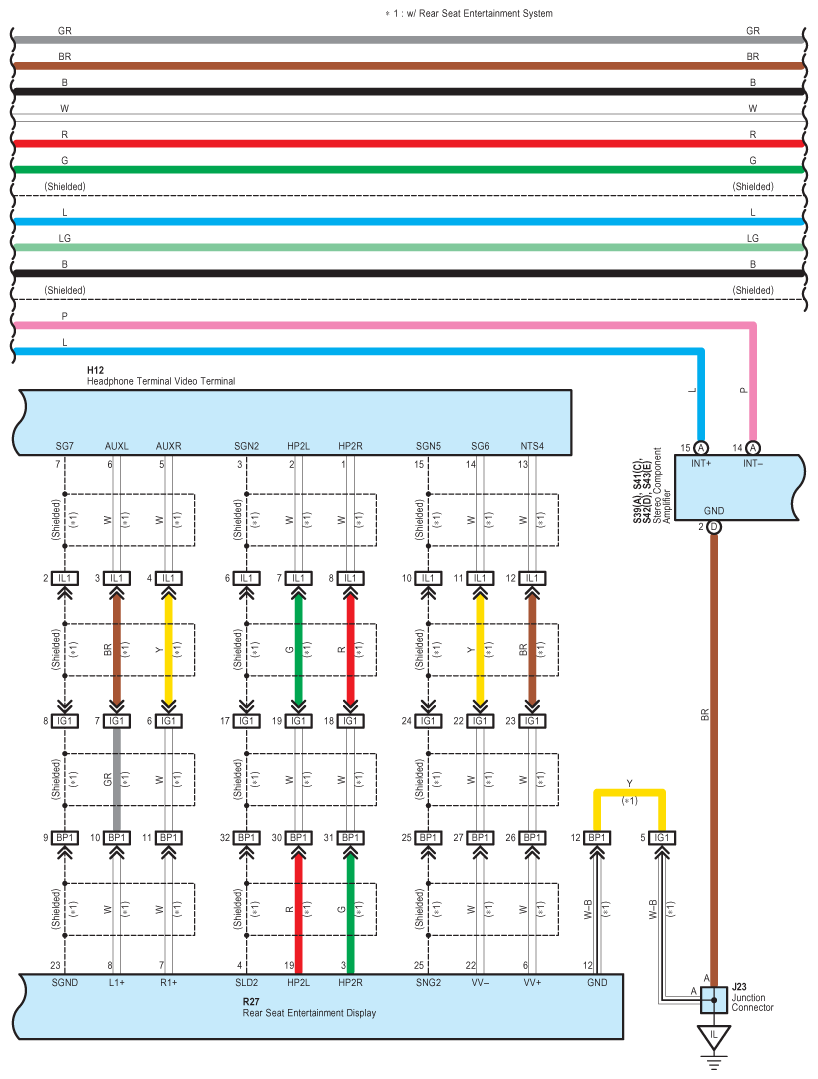

Fig 6: Audio System With LEXUS Navigation System Wiring Diagram (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Audio System With LEXUS Navigation System Wiring Diagram (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

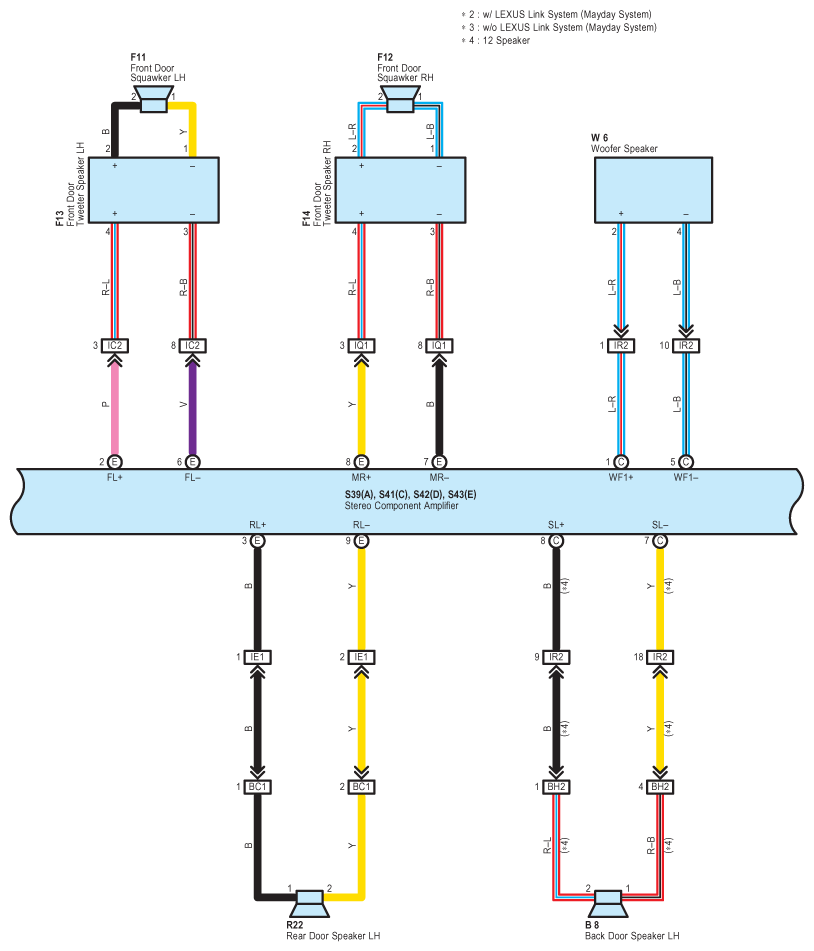

Fig 8: Audio System With LEXUS Navigation System Wiring Diagram (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

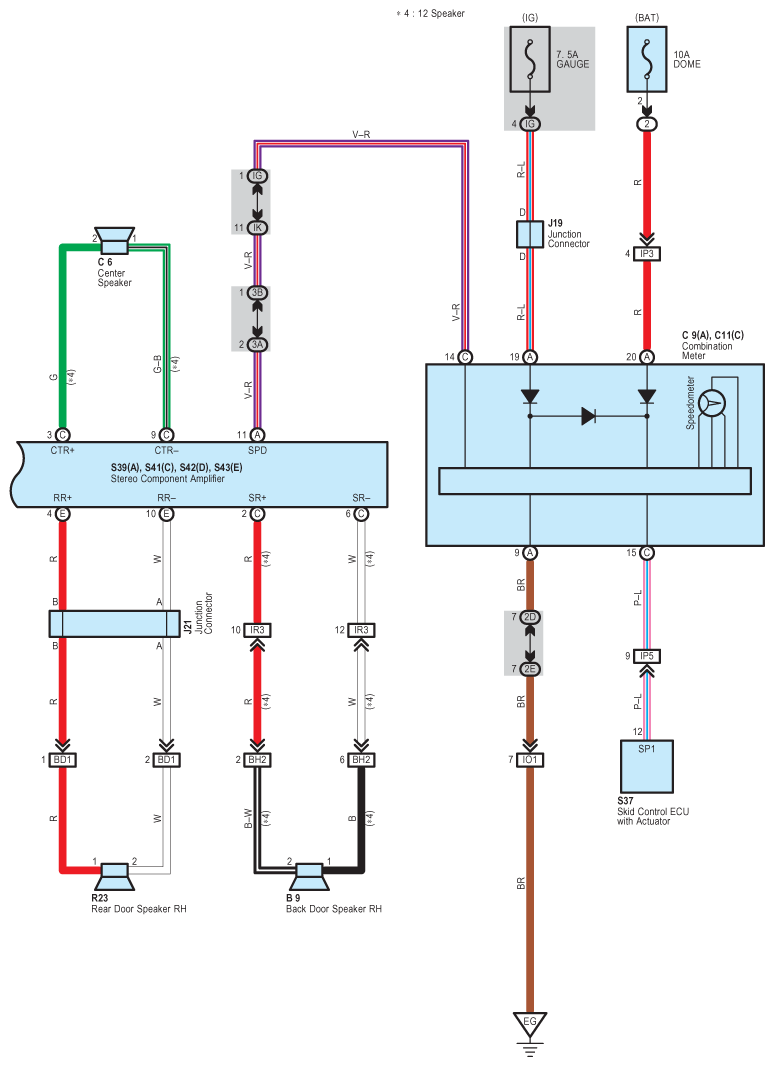

Fig 9: Audio System With LEXUS Navigation System Wiring Diagram (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
