Audio System without LEXUS Navigation System: Notes

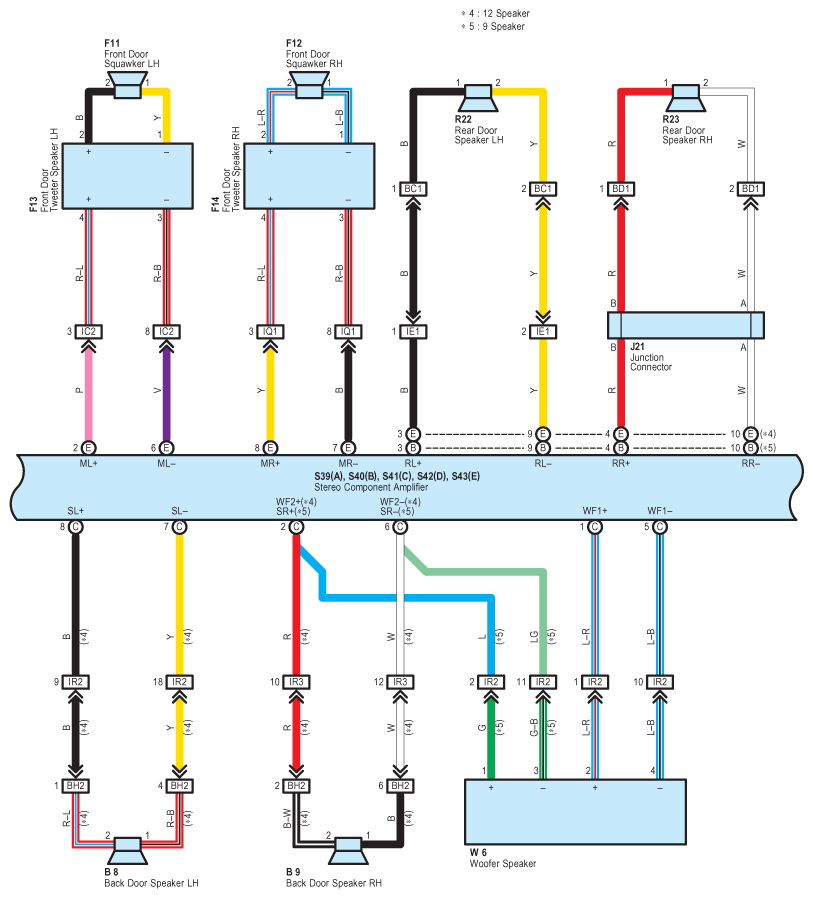

Fig 1: Audio System Without LEXUS Navigation System Wiring Diagram (1 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

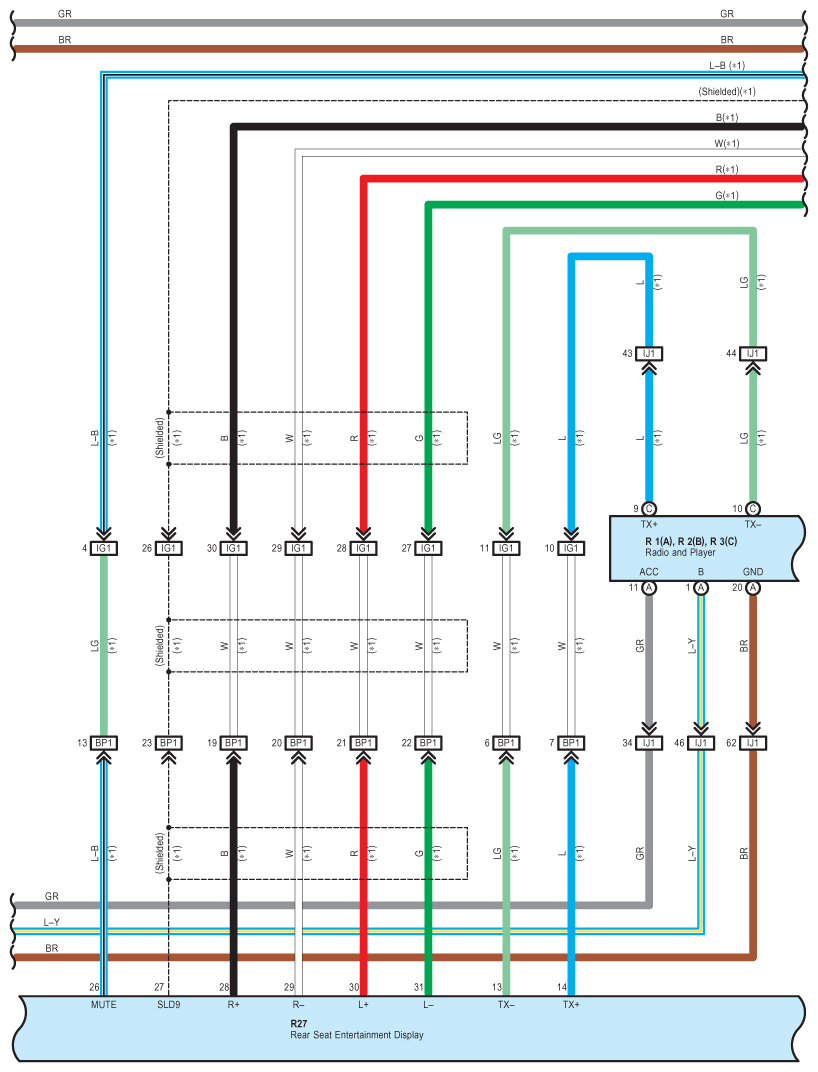

Fig 2: Audio System Without LEXUS Navigation System Wiring Diagram (2 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

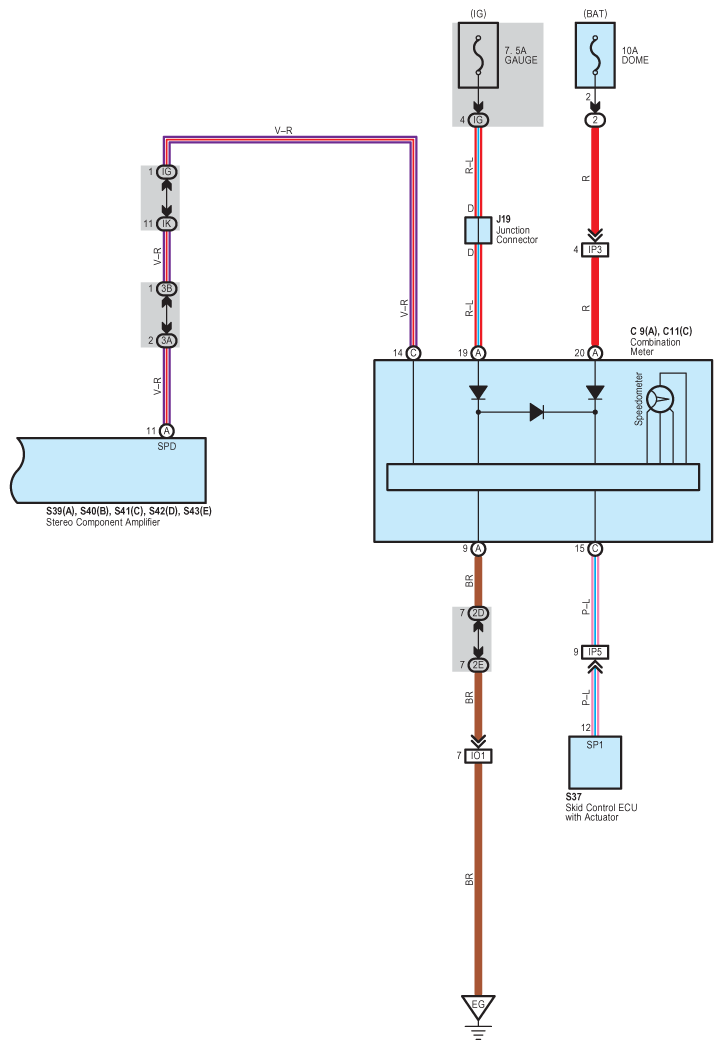

Fig 3: Audio System Without LEXUS Navigation System Wiring Diagram (3 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

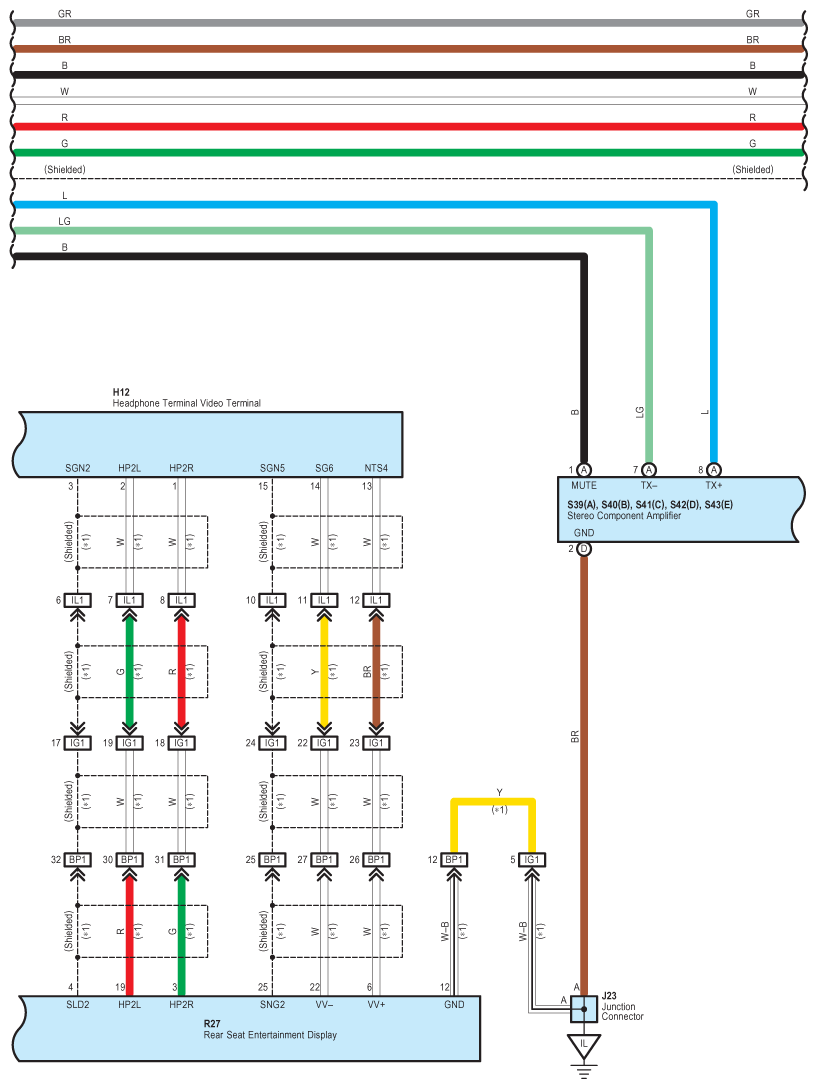

Fig 4: Audio System Without LEXUS Navigation System Wiring Diagram (4 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

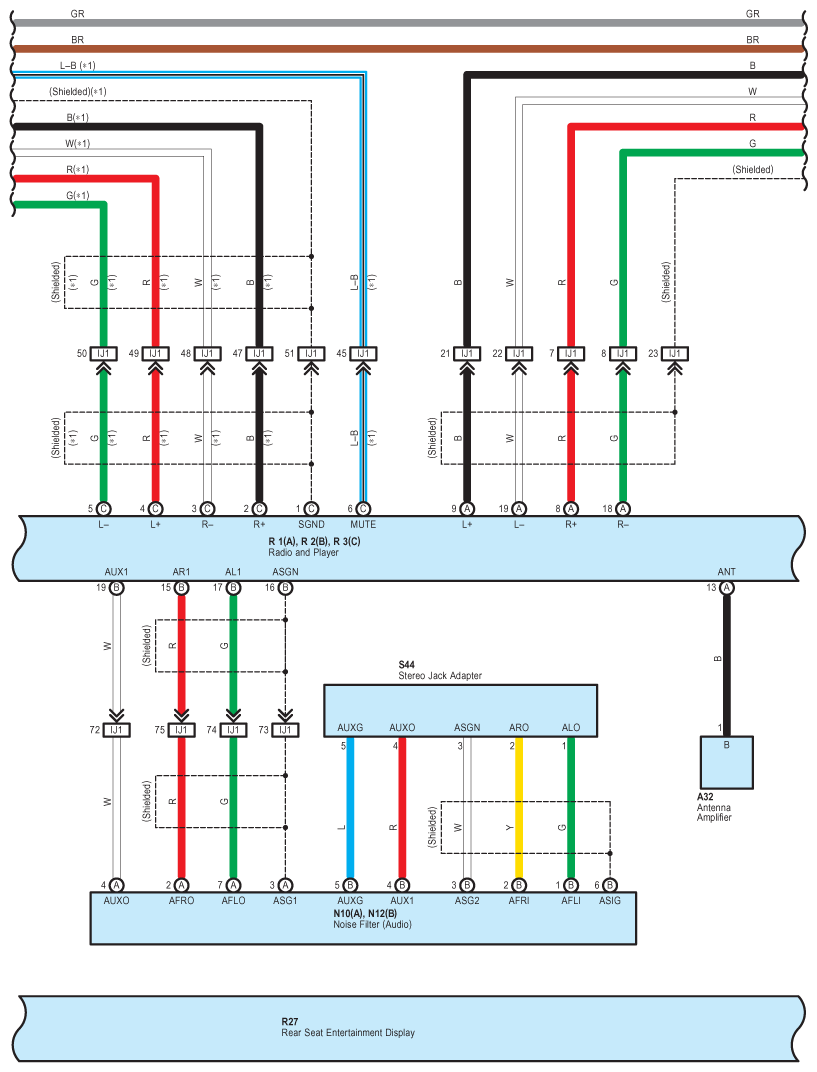

Fig 5: Audio System Without LEXUS Navigation System Wiring Diagram (5 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

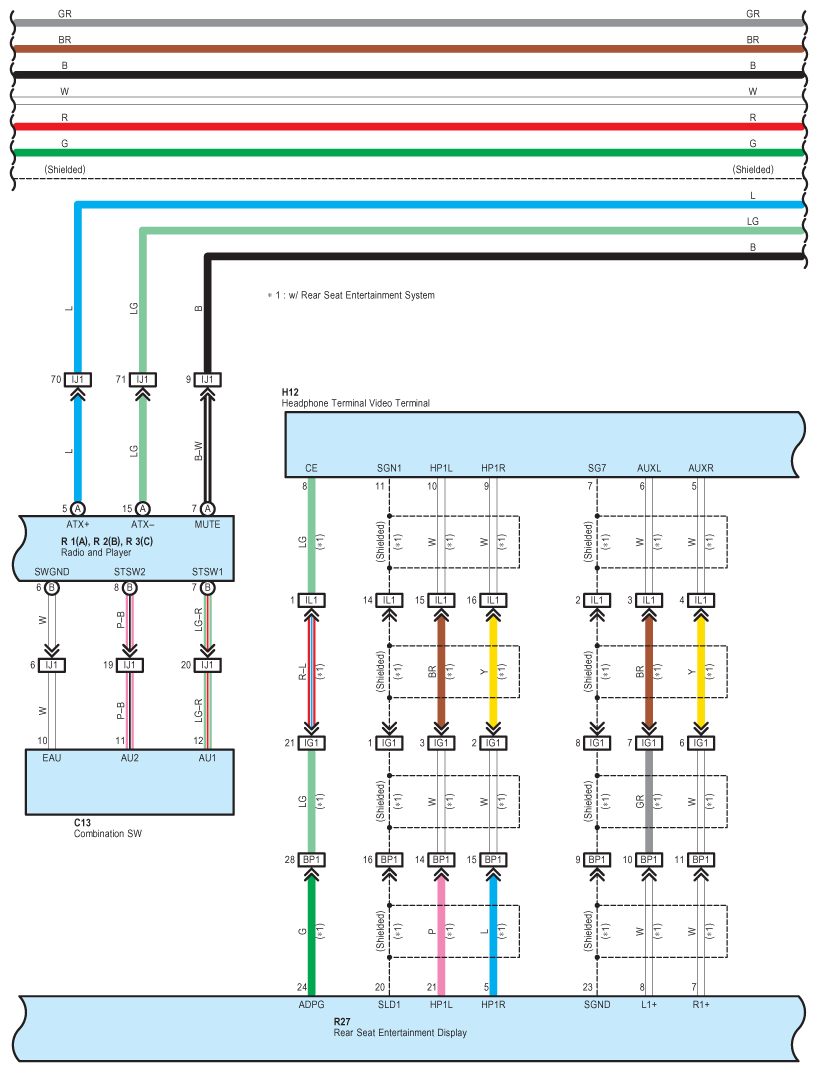

Fig 6: Audio System Without LEXUS Navigation System Wiring Diagram (6 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

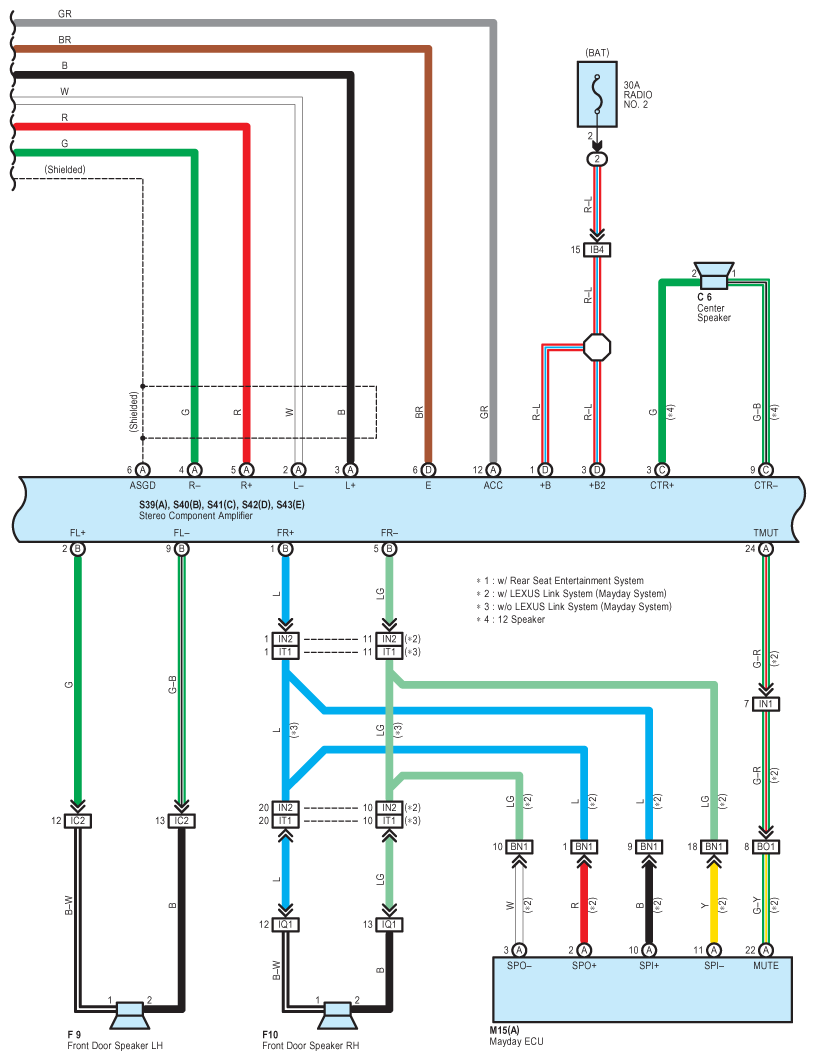

Fig 7: Audio System Without LEXUS Navigation System Wiring Diagram (7 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

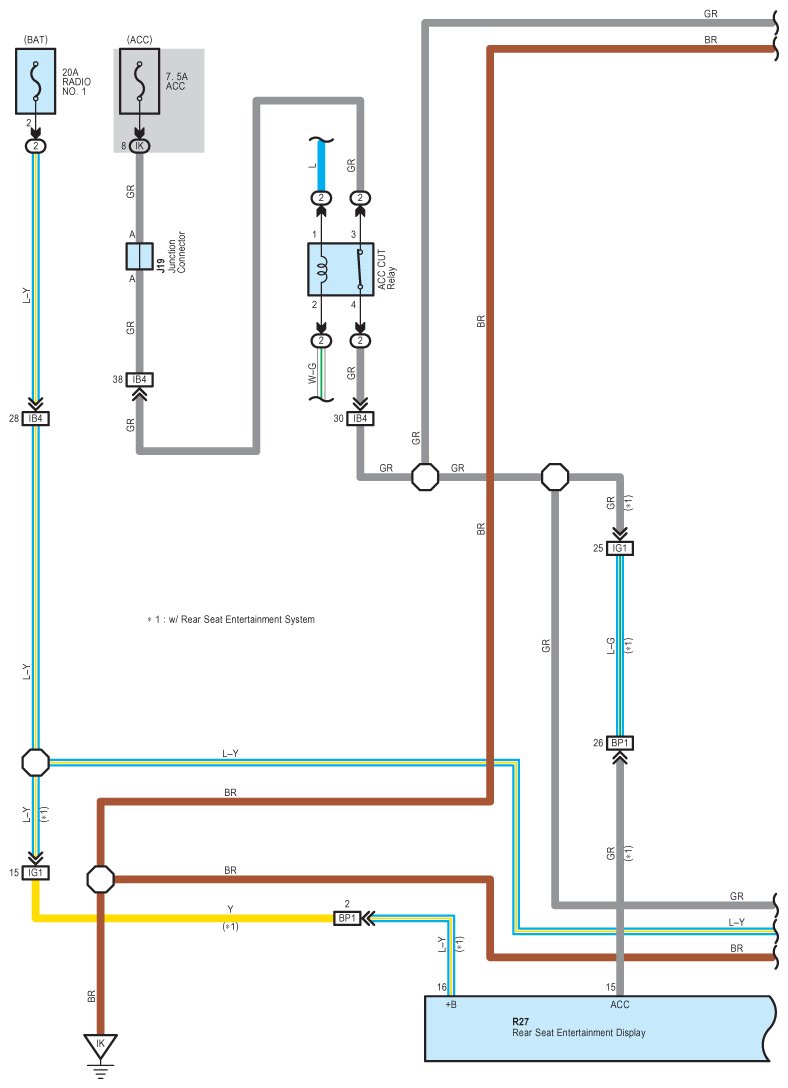

Fig 8: Audio System Without LEXUS Navigation System Wiring Diagram (8 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
