Kinetic Dynamic Suspension System: Notes

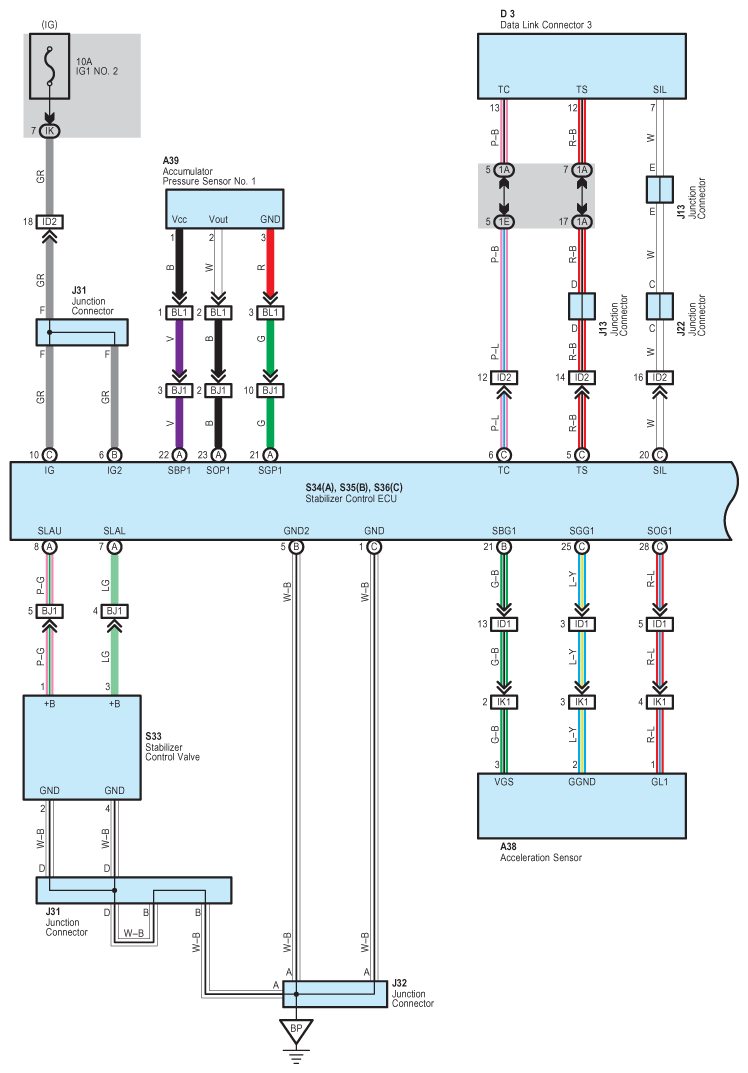

Fig 1: Kinetic Dynamic Suspension System Wiring Diagram (1 Of 2)
G08917642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

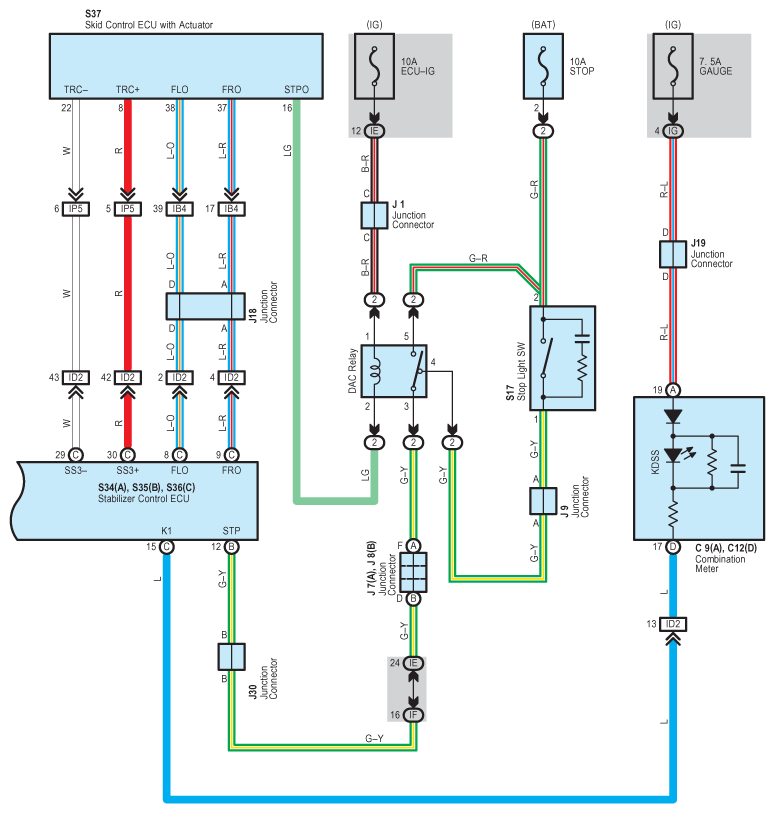

Fig 2: Kinetic Dynamic Suspension System Wiring Diagram (2 Of 2)
G08917643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
