Rear Air Conditioning: Notes

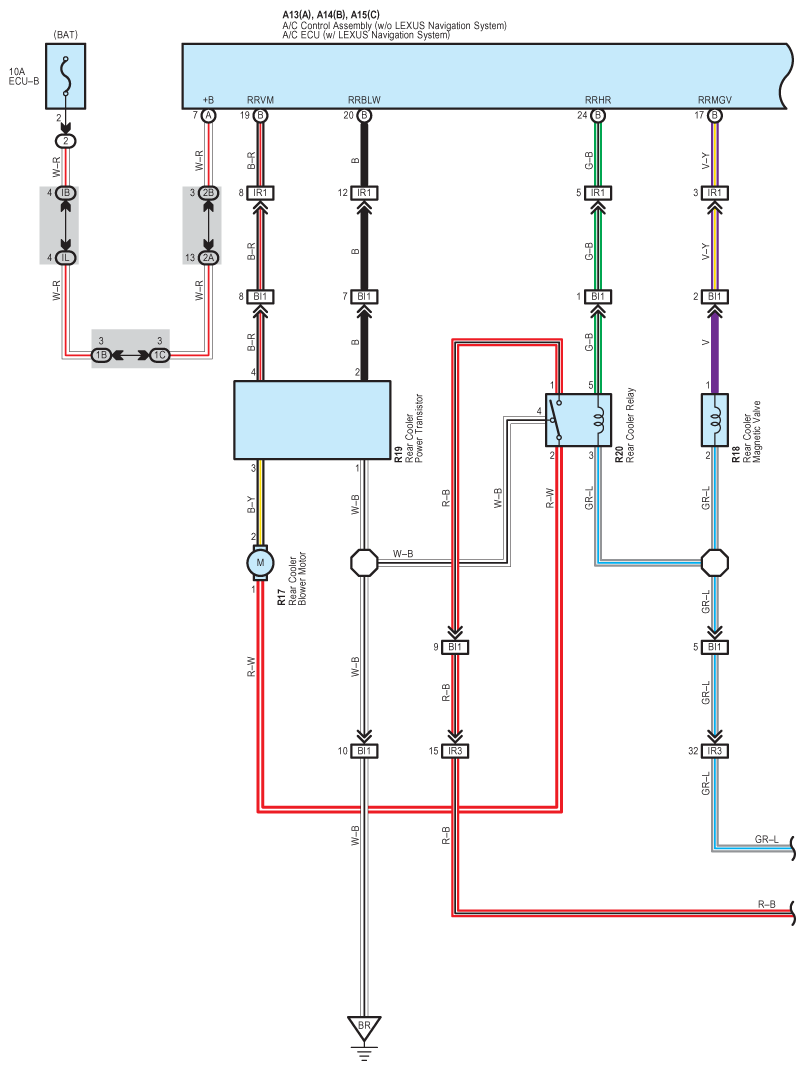

Fig 1: Rear Air Conditioning System Wiring Diagram (1 Of 2)
G08917720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

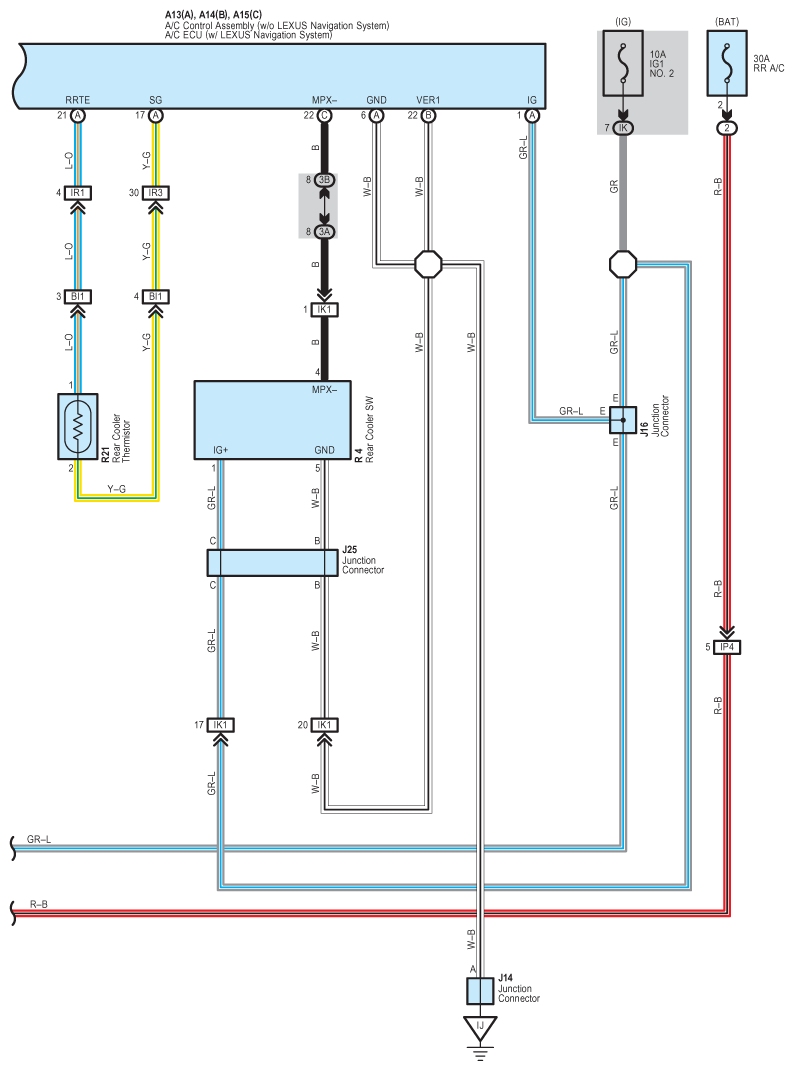

Fig 2: Rear Air Conditioning System Wiring Diagram (2 Of 2)
G08917721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
