Combination Meter: Components

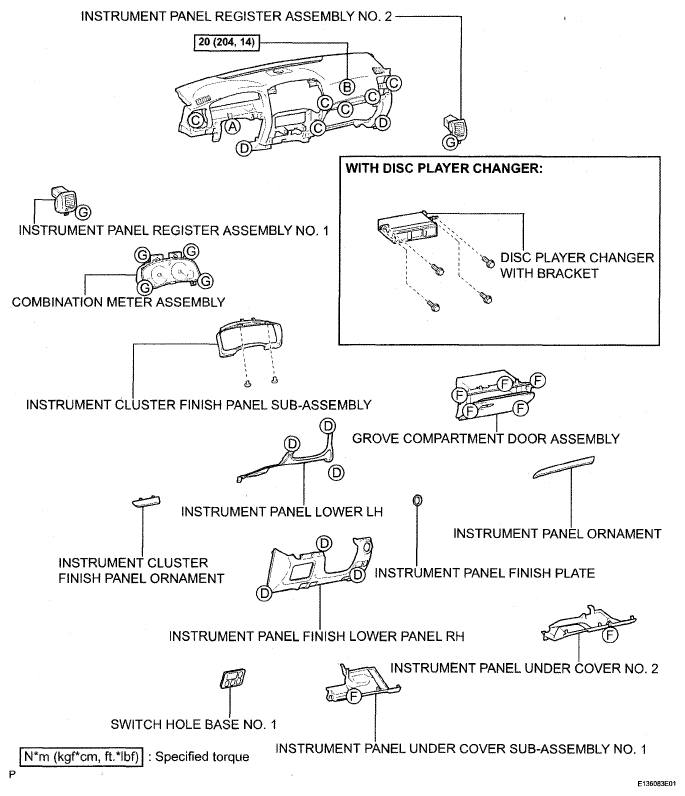

Fig 1: Identifying Combination Meter Replacement Components With Torque Specifications (1 Of 2)
G05266041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

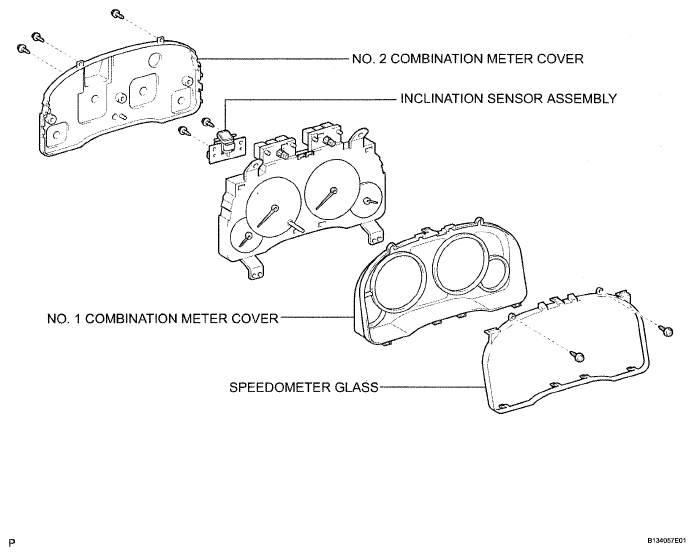

Fig 2: Identifying Combination Meter Replacement Components (2 Of 2)
G05266042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
