Ignition Switch: Components

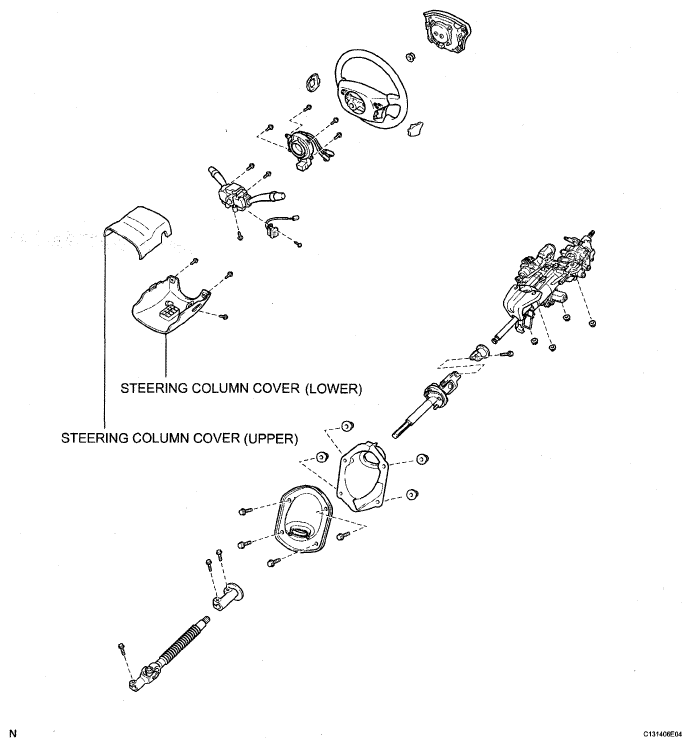

Fig 1: Identifying Ignition Switch Components (1 Of 2)
G05265086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

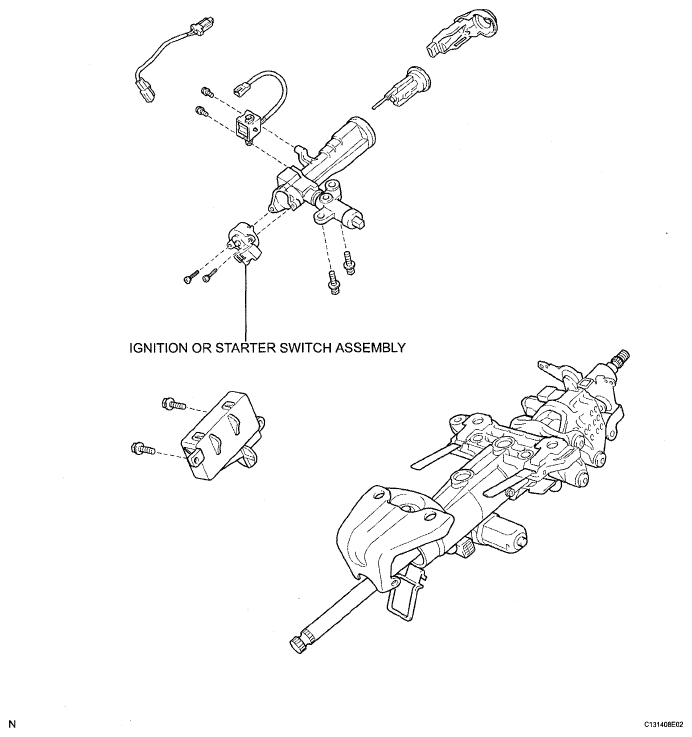

Fig 2: Identifying Ignition Switch Components (2 Of 2)
G05265087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
