Home >> Lexus >> 2007 >> GX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Oil Pump >> Components

Oil Pump: Components

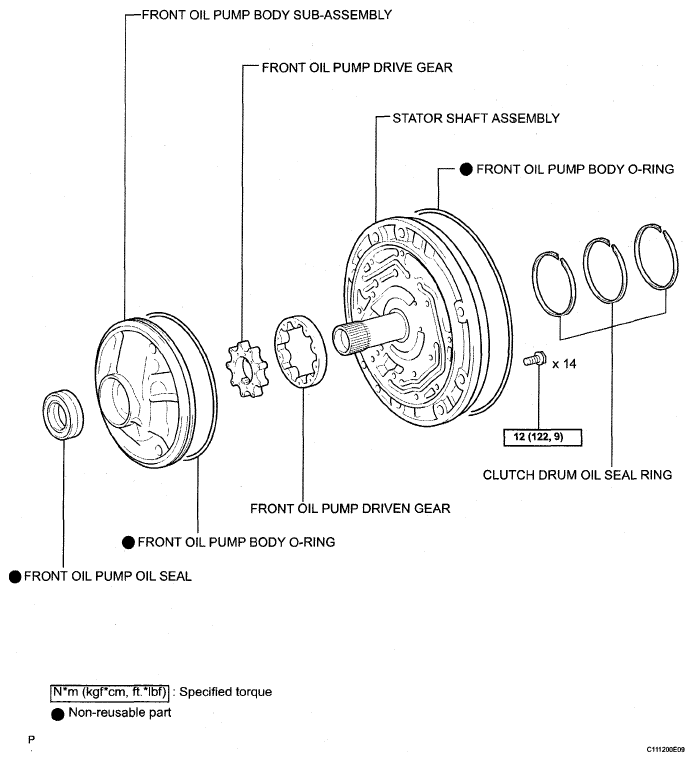

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications

G05261597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
