Speed Sensor: Installation

  1. INSTALL SPEED SENSOR
    1. Coat a new O-ring with ATF.

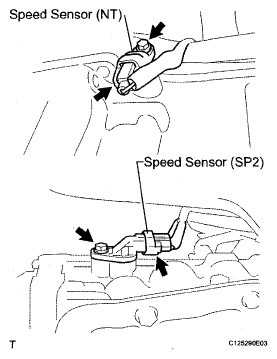

      2. Fig 1: Identifying Speed Sensor Bolt
      G05261308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the speed sensor with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the connector.
