Back Window Glass: Components

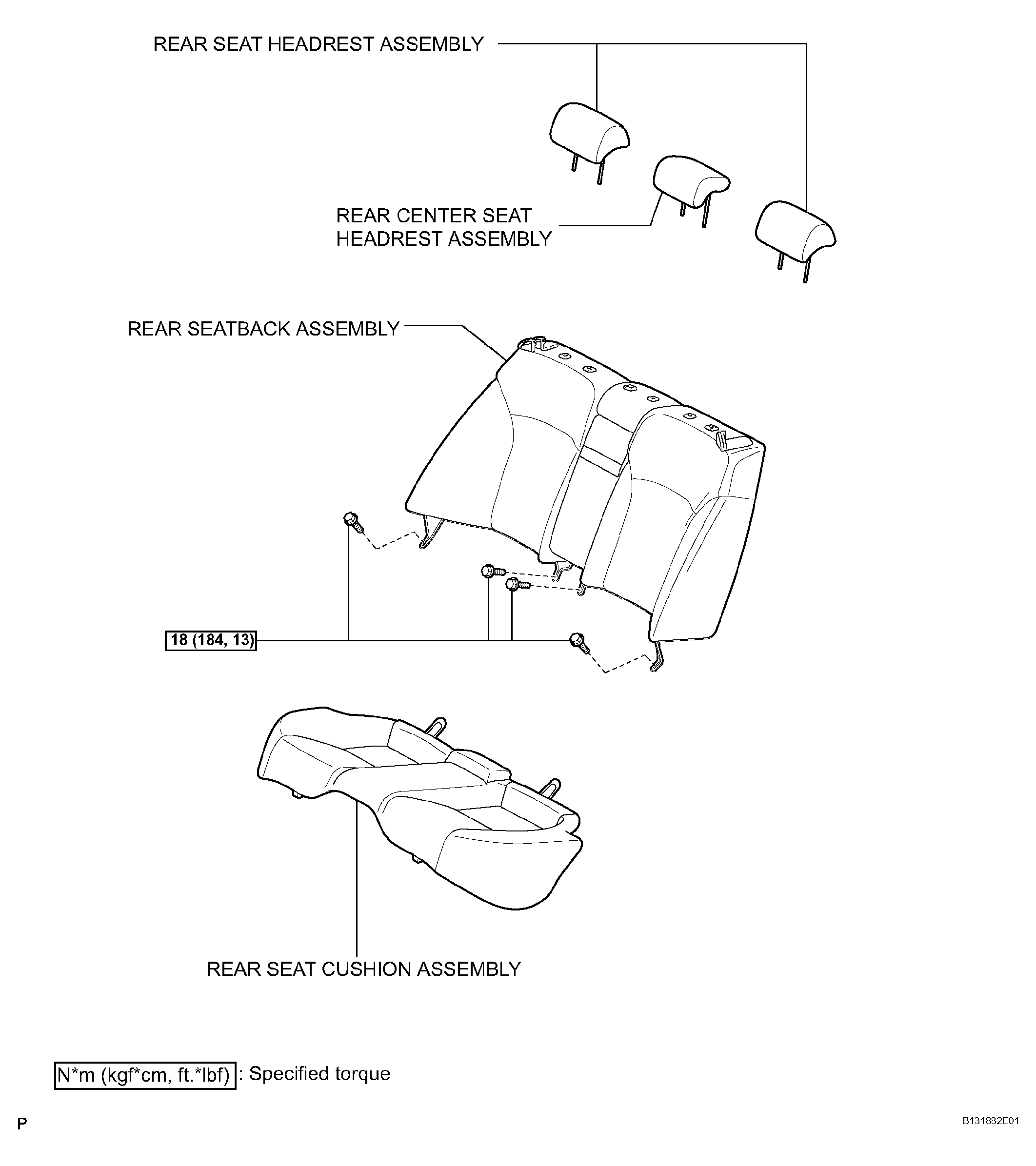

Fig 1: Back Window Glass Replacement Components With Torque Specifications (1 Of 3)
G04050763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

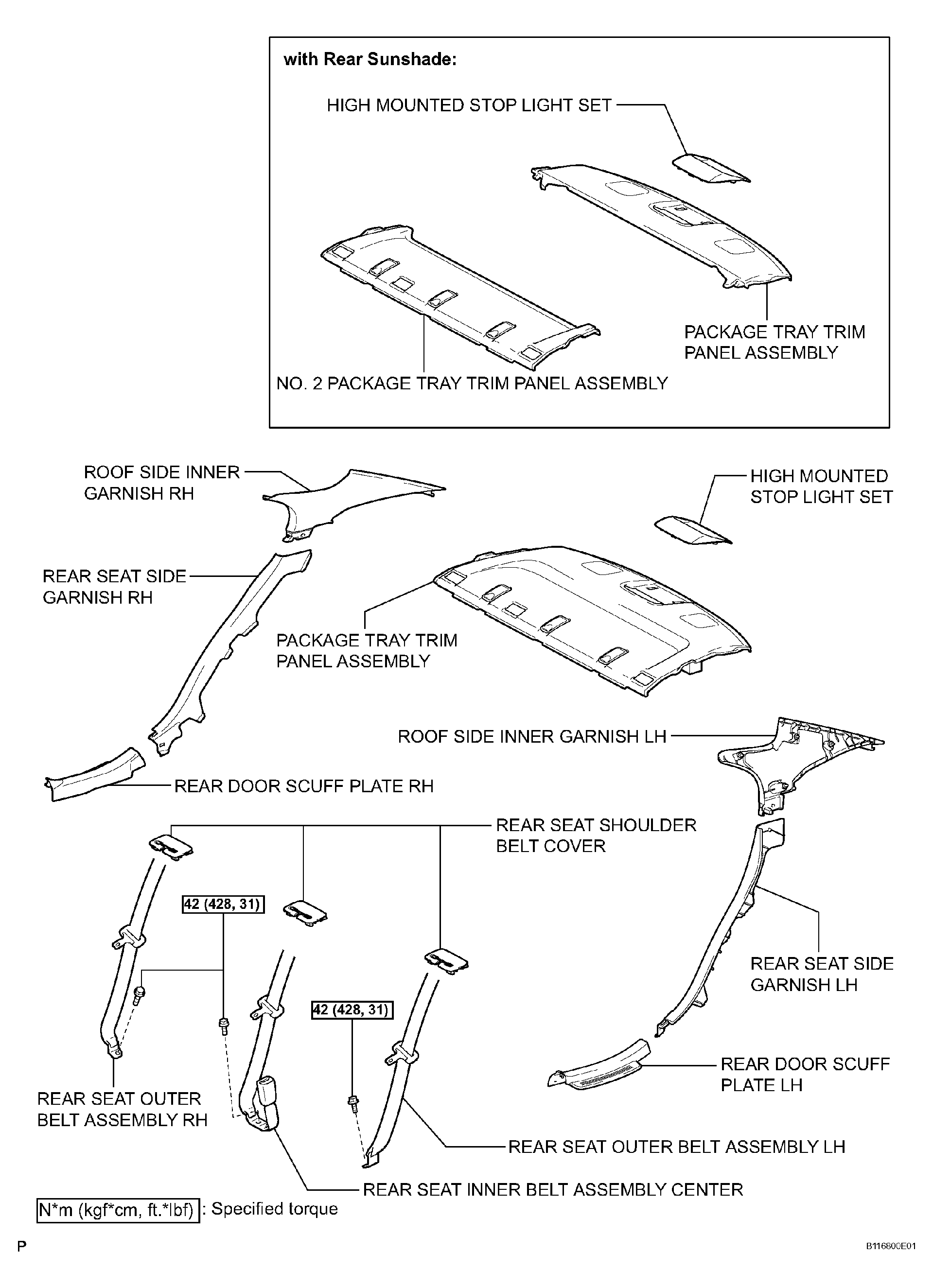

Fig 2: Back Window Glass Replacement Components With Torque Specifications s(2 Of 3)
G04050764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

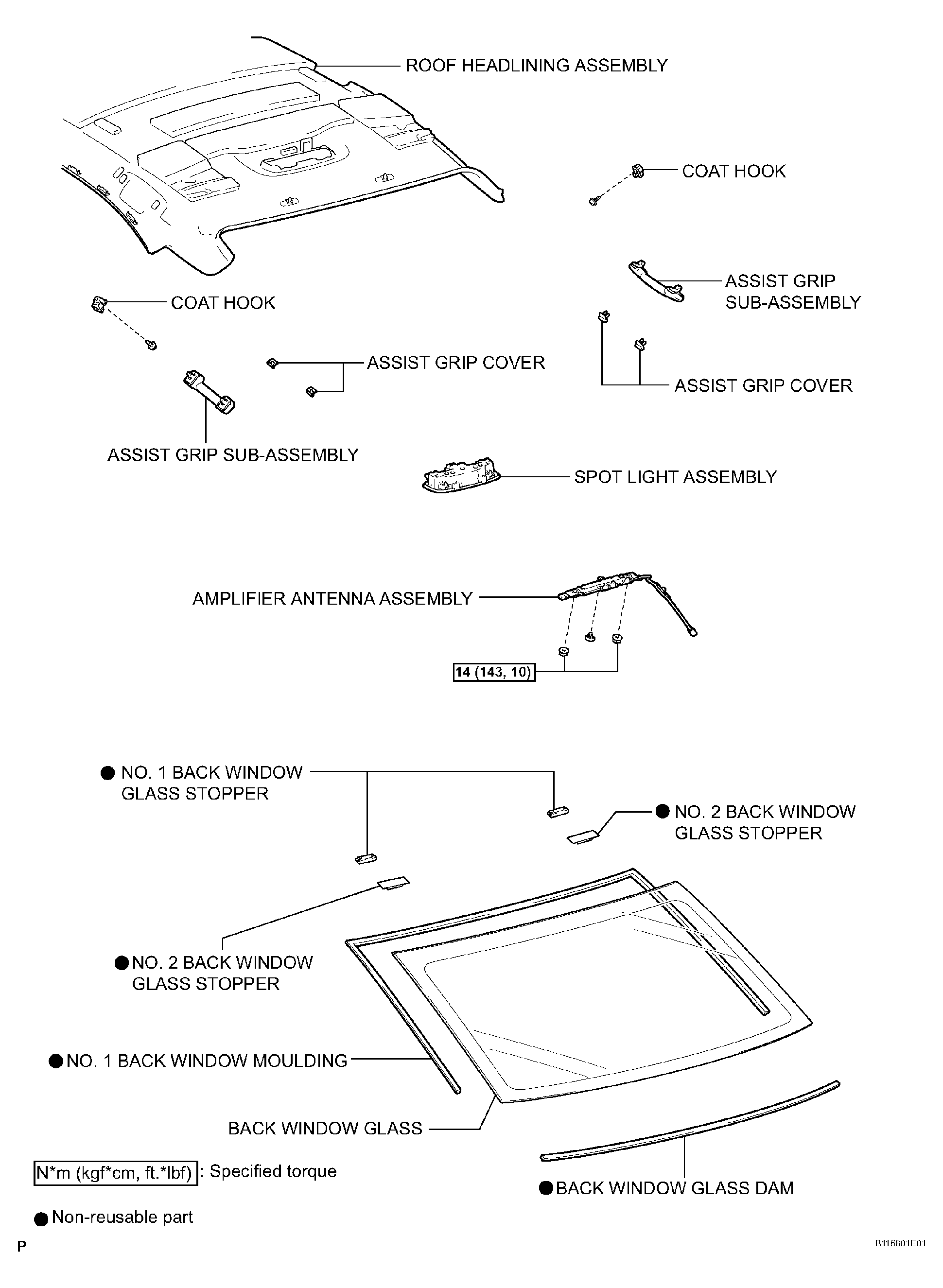

Fig 3: Back Window Glass Replacement Components With Torque Specifications (3 Of 3)
G04050765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
