Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass >> Windshield Glass >> Components

Windshield Glass: Components

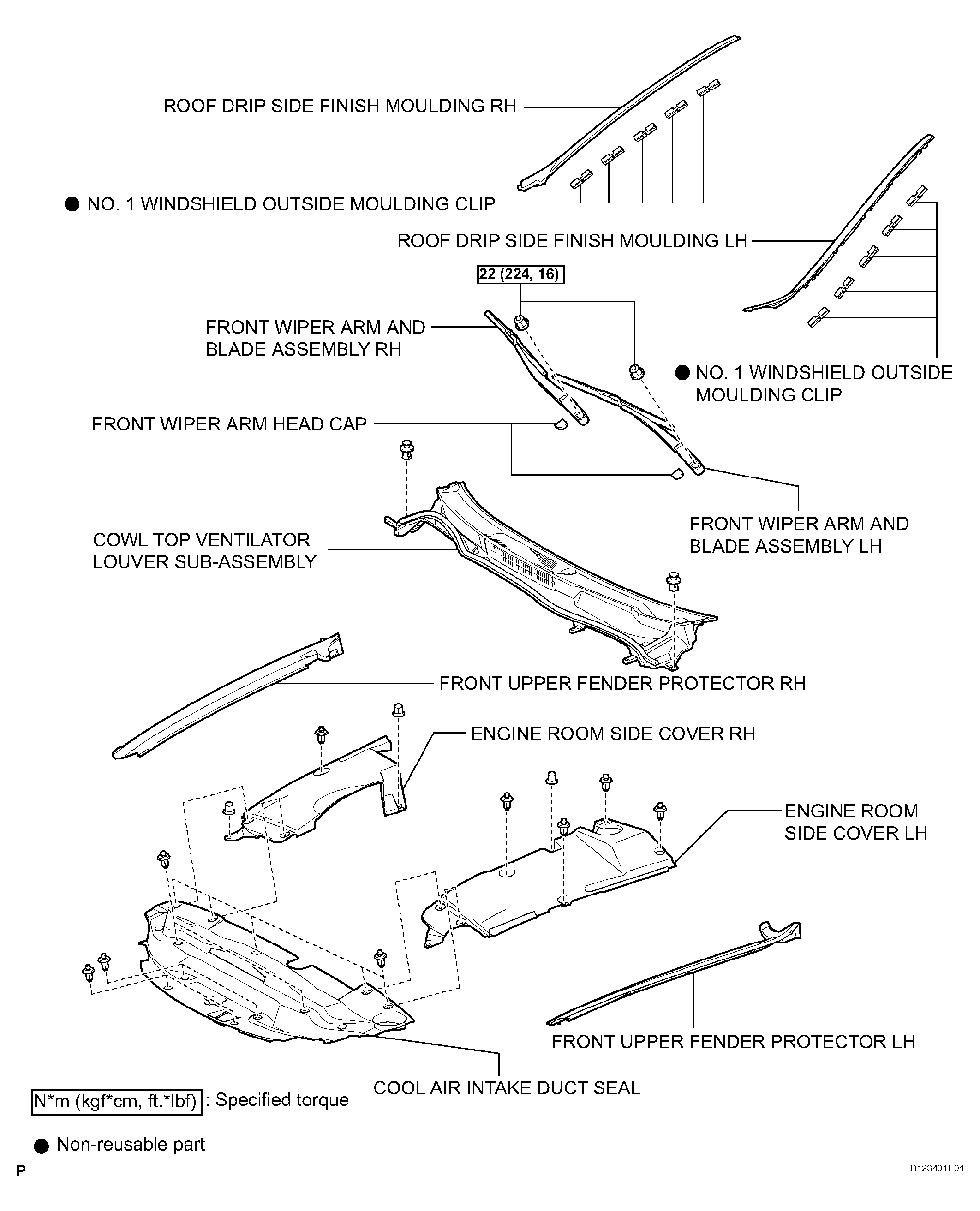

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 3)
G04050745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 3)
G04050746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

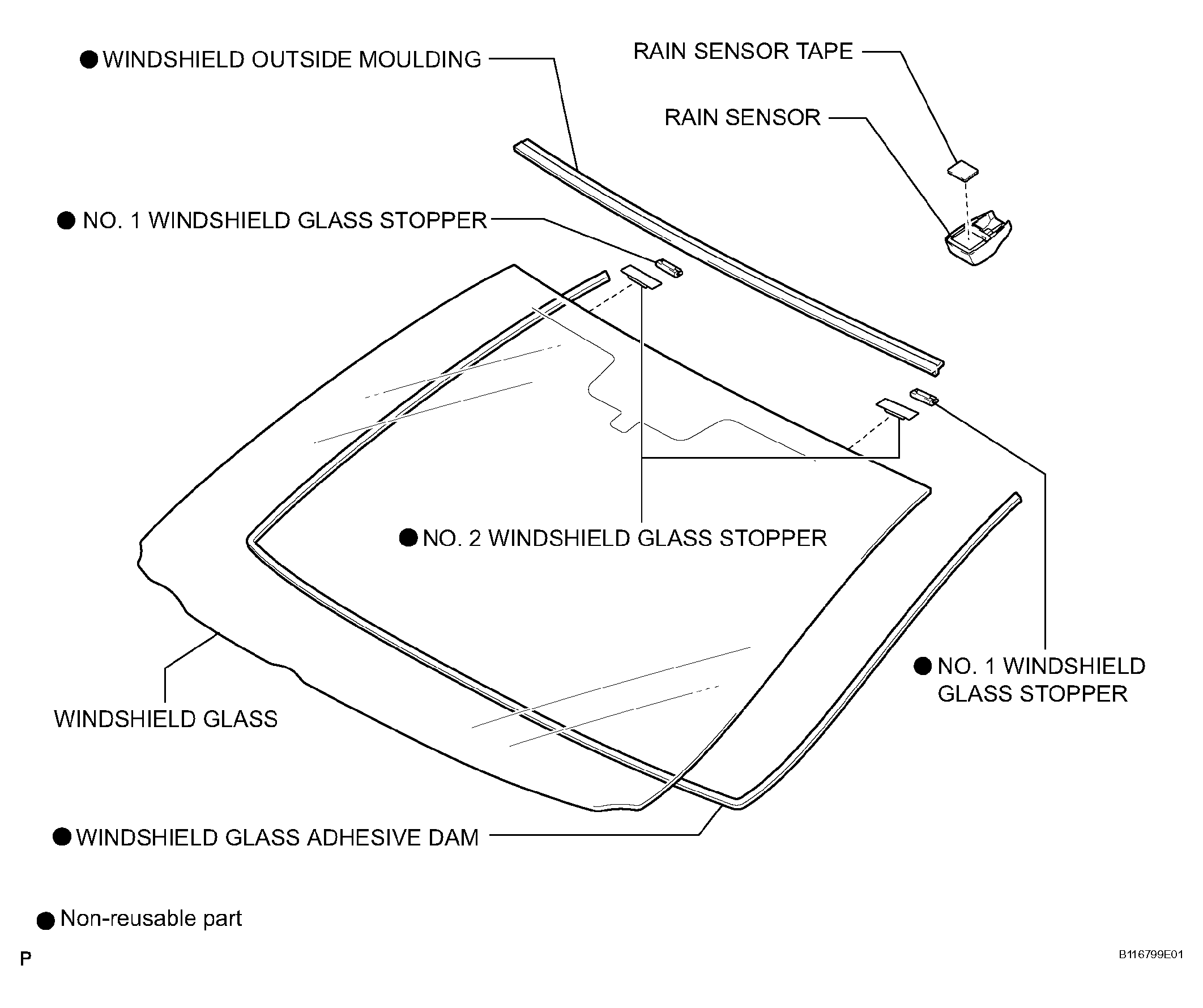

Fig 3: Identifying Windshield Glass Components (3 Of 3)
G04050747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
