Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Brake Actuator >> Components

Brake Actuator: Components

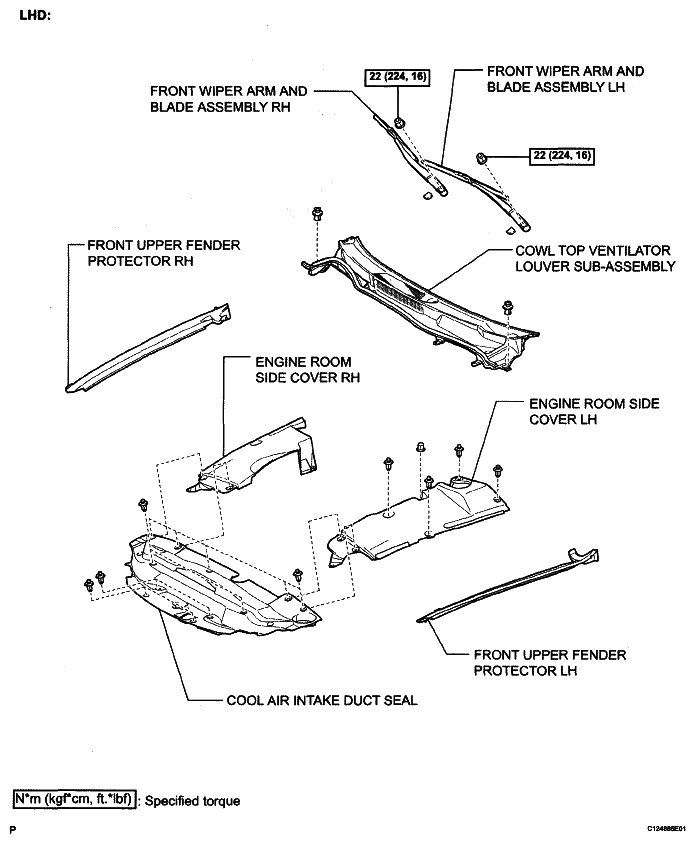

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G05319561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

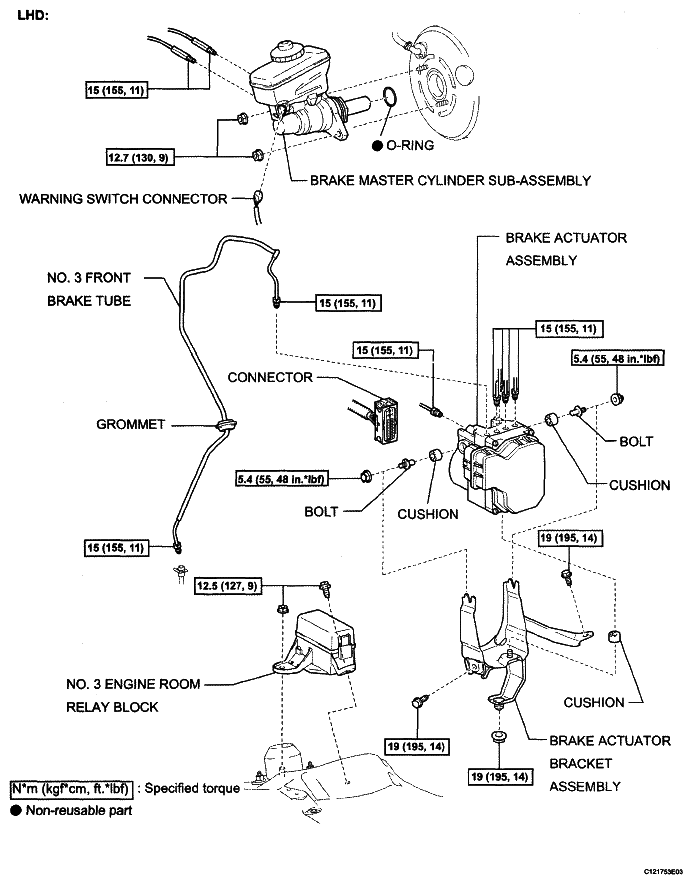

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G05319562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
