Cigarette Lighter Assembly: Components: Installation

  1. INSTALL CIGARETTE LIGHTER ASSEMBLY
    1. Install the cigarette lighter socket.

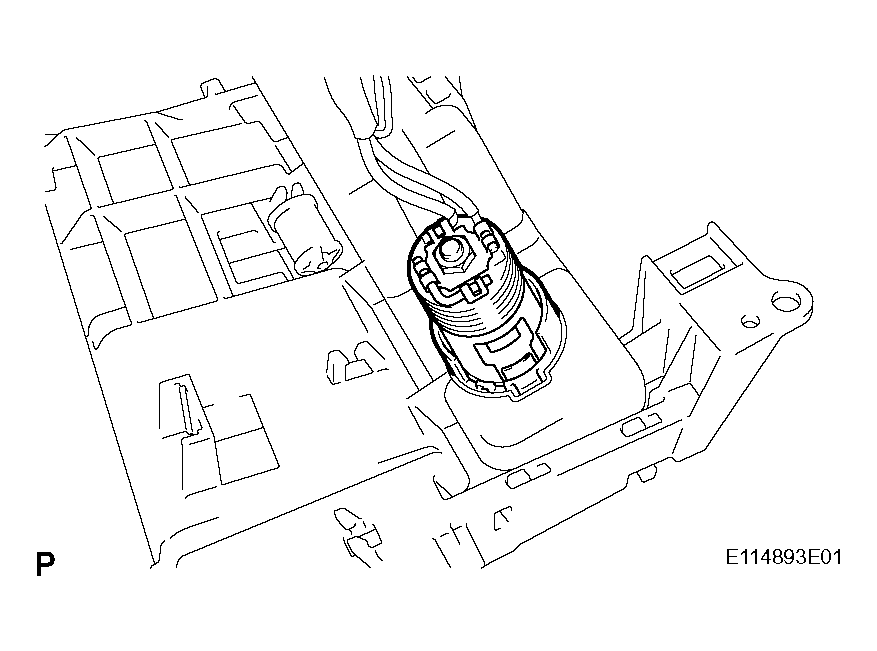

      Fig 1: Installing Cigarette Lighter Socket
      G04050692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cigarette lighter retainer.

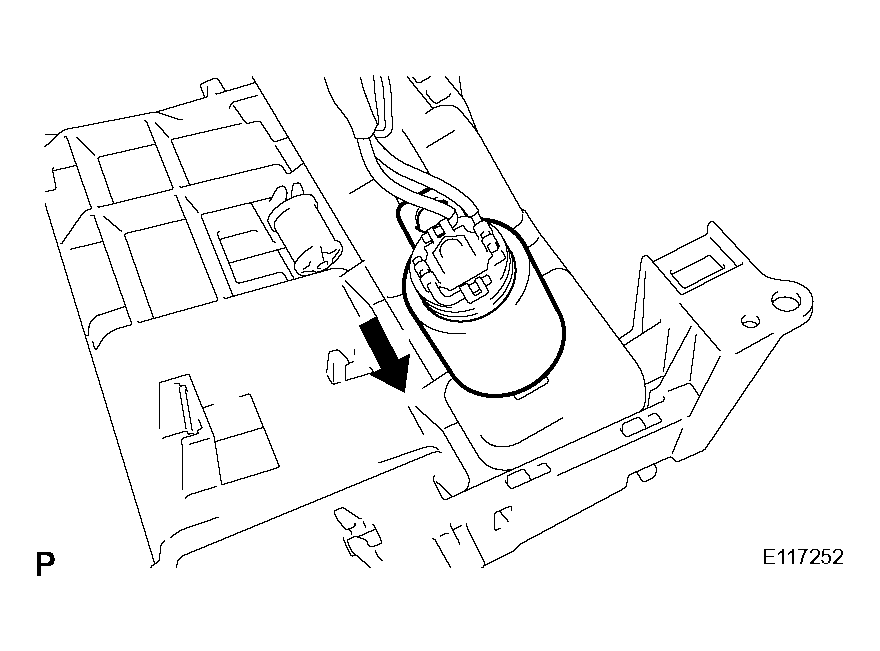

      Fig 2: Installing Cigarette Lighter Retainer
      G04050693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the cigarette lighter nut in the direction indicated by the arrow to install it.

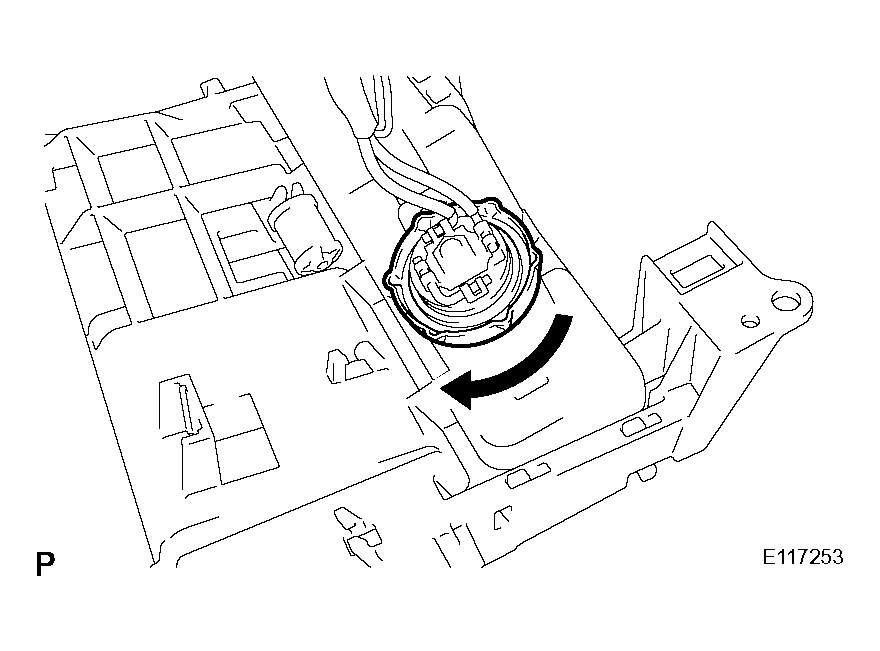

      4. Fig 3: Turning Cigarette Lighter Nut
      G04050694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the clip.
    NOTE: For installation of the items listed in steps  2 thru  9, refer to appropriate steps under INSTALLATION under INSTRUMENT PANEL SAFETY PAD in INSTRUMENT PANELS article  .
  2. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See Step 44 In  INSTALLATION  )
  3. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 45 in  INSTALLATION  )
  4. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 46 in  INSTALLATION  )
  5. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See Step 47 in  INSTALLATION  )
  6. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 48 in  INSTALLATION  )
  7. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 49 in  INSTALLATION  )
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

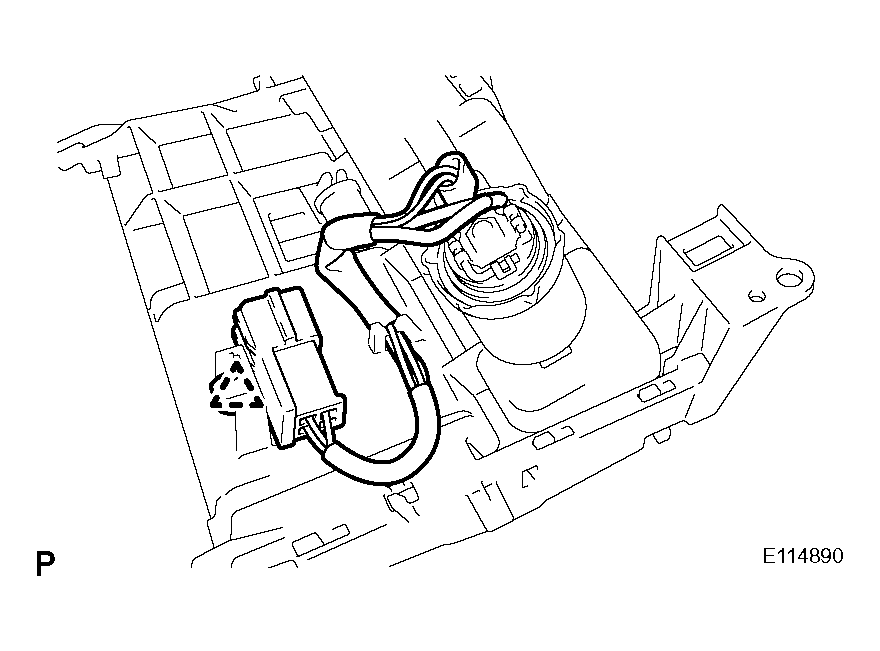

    Fig 4: Engaging Clip
    G04050695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
