OEM System Circuits: EPS: Notes

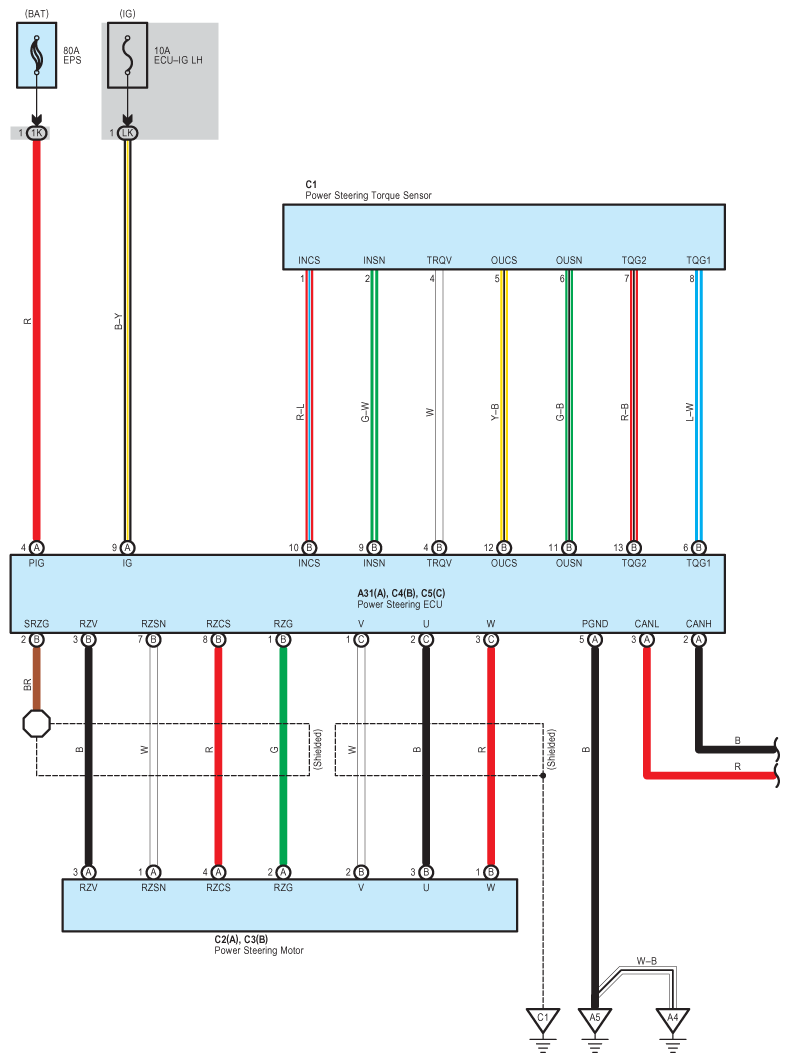

Fig 1: EPS - Wiring Diagram (1 Of 4)
G08918578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

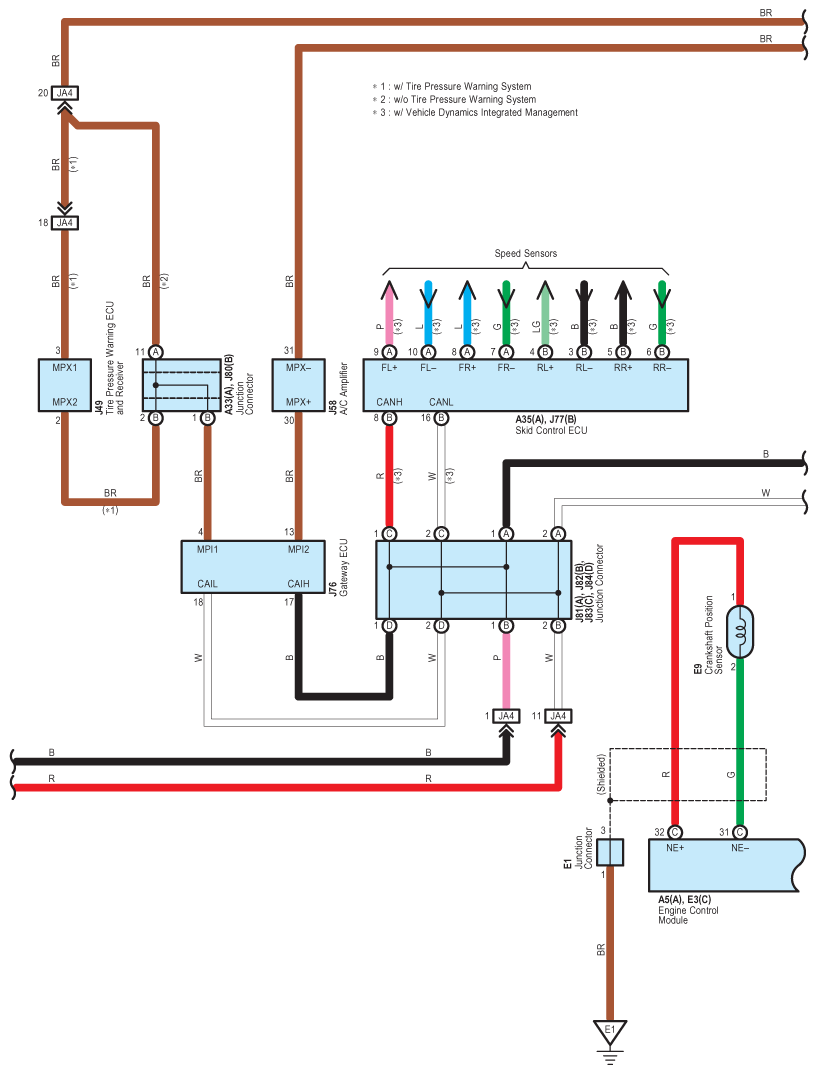

Fig 2: EPS - Wiring Diagram (2 Of 4)
G08918579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

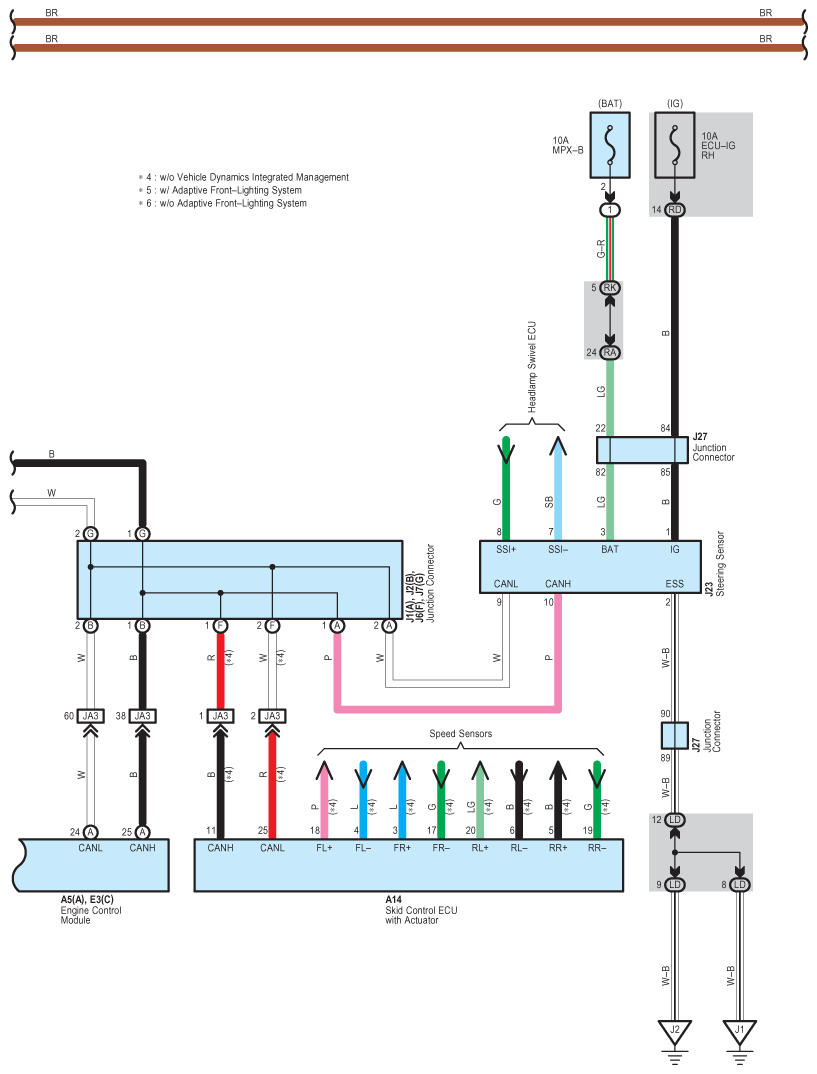

Fig 3: EPS - Wiring Diagram (3 Of 4)
G08918580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

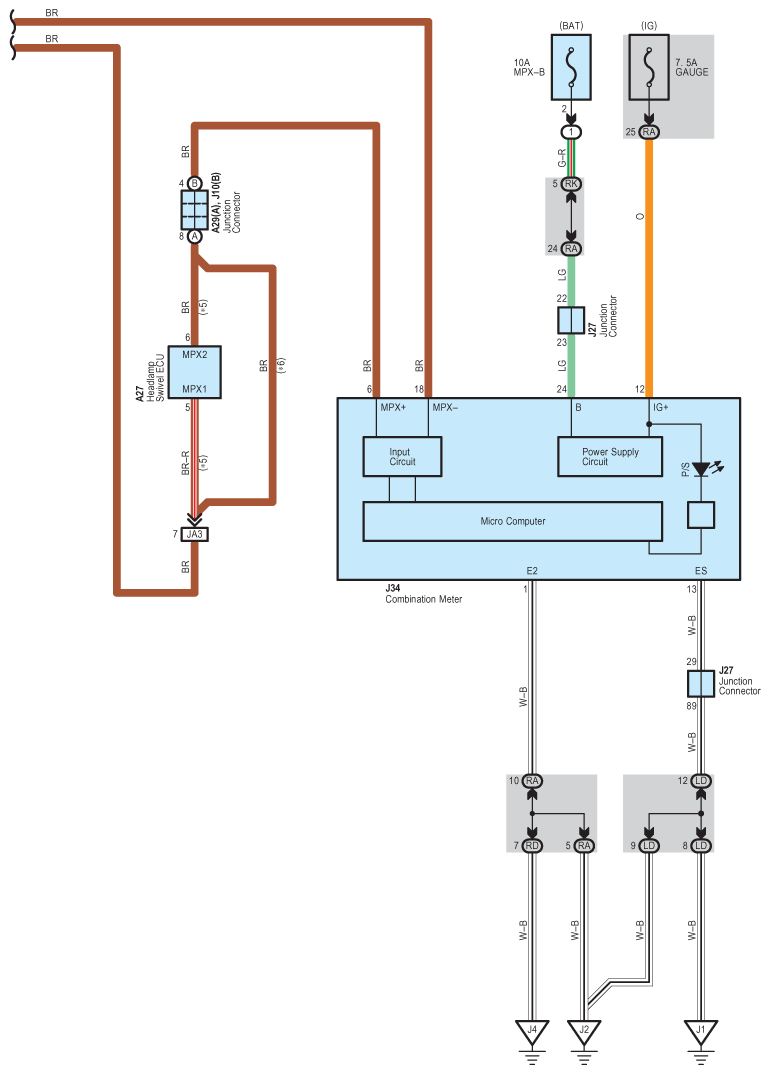

Fig 4: EPS - Wiring Diagram (4 Of 4)
G08918581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
