Headlight Cleaner: Notes

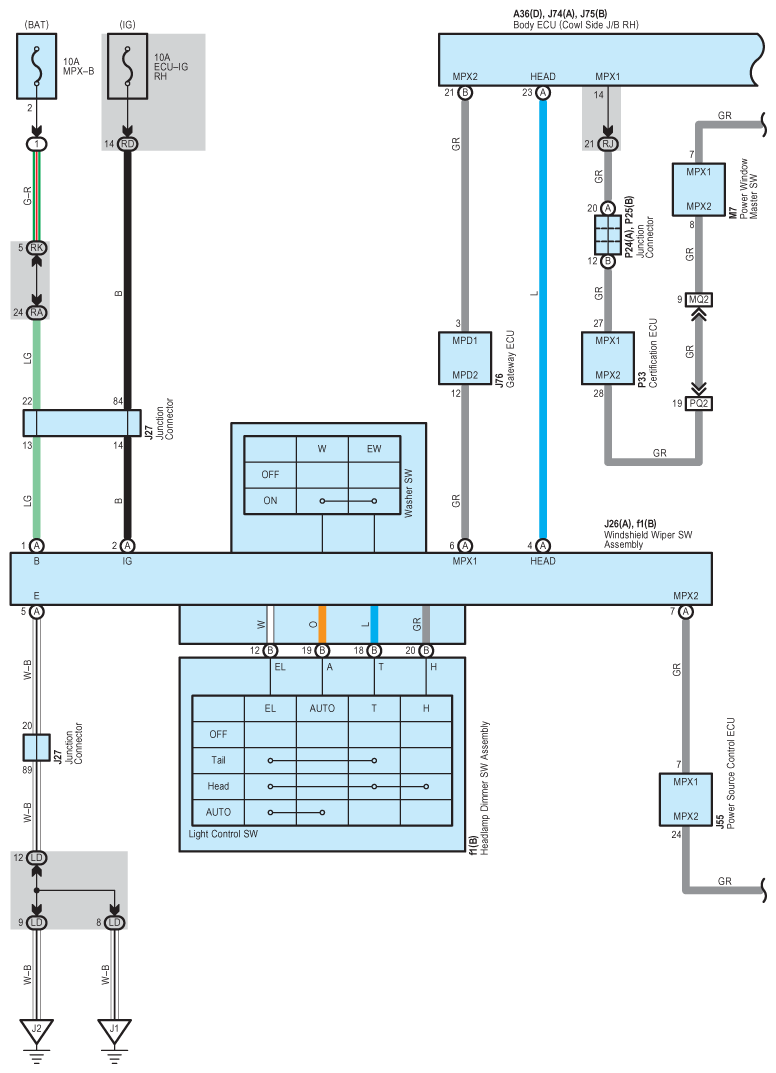

Fig 1: Headlight Cleaner - Wiring Diagram (1 Of 2)
G08918459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

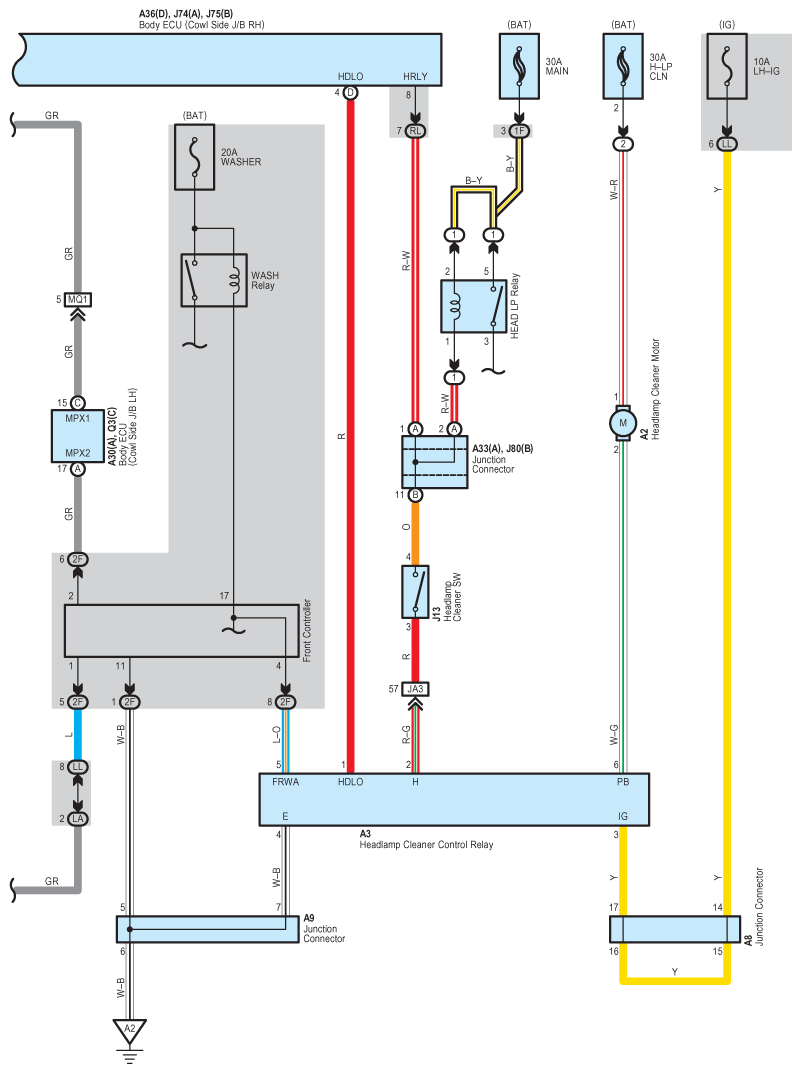

Fig 2: Headlight Cleaner - Wiring Diagram (2 Of 2)
G08918460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
