Ignition for 4GR-FSE: Notes

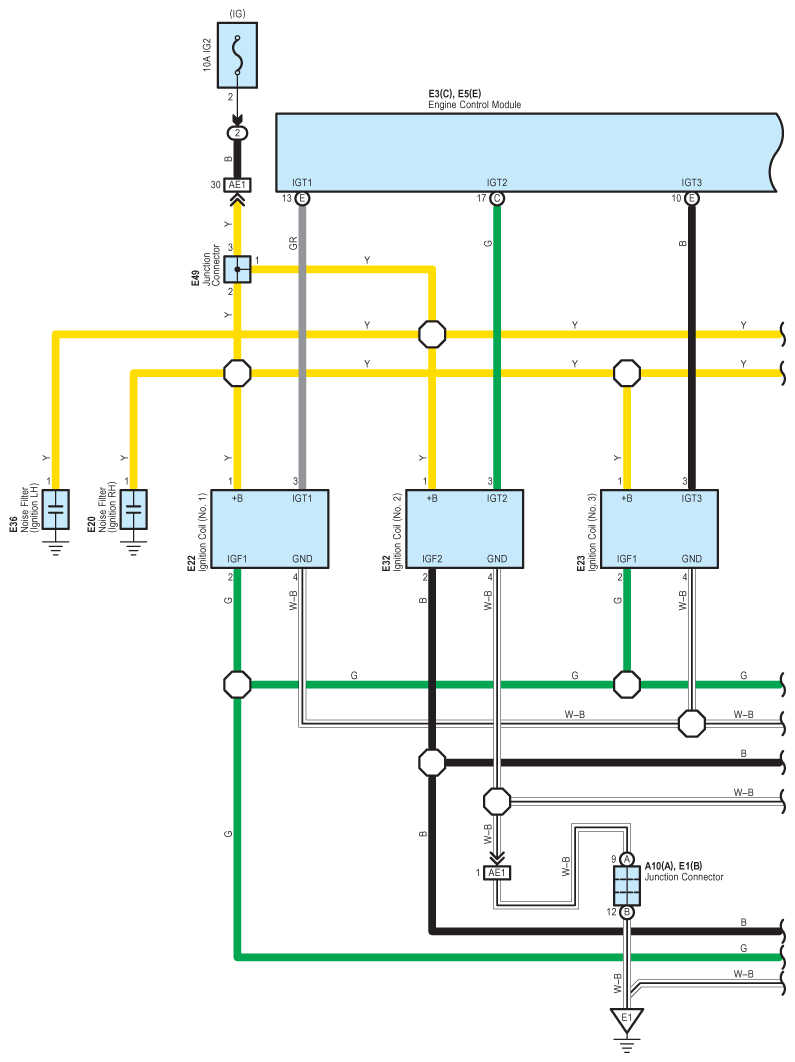

Fig 1: Ignition For 4GR-FSE - Wiring Diagram (1 Of 2)
G08918352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

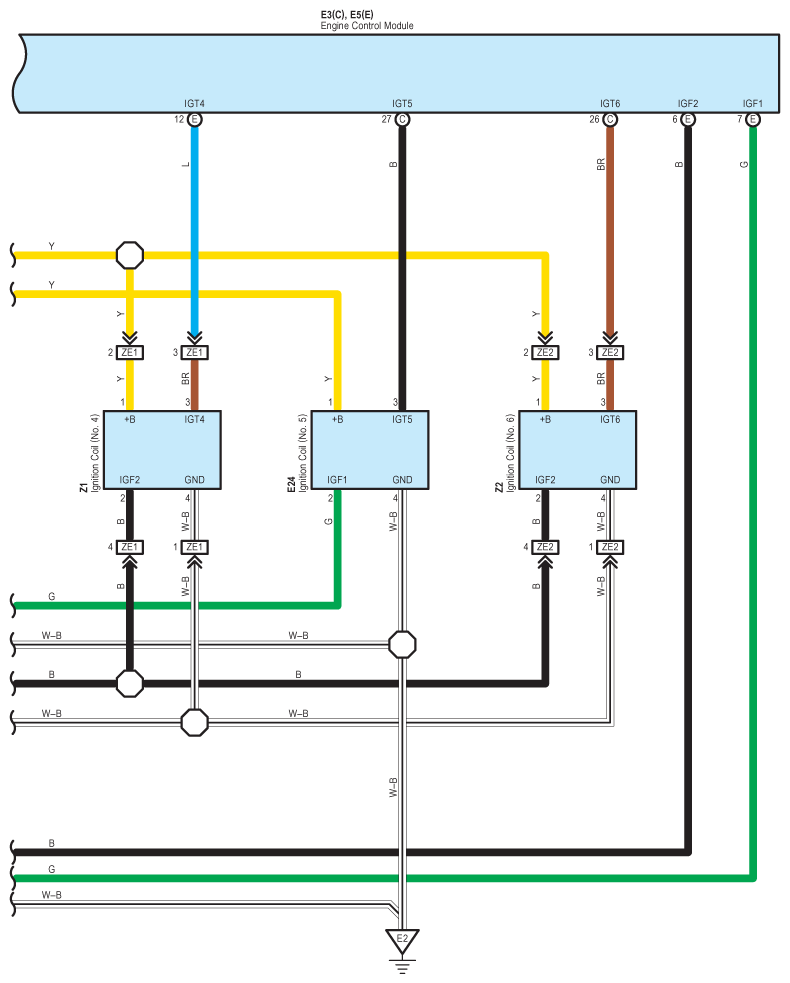

Fig 2: Ignition For 4GR-FSE - Wiring Diagram (2 Of 2)
G08918353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
