Multiplex Communication System - CAN: Notes

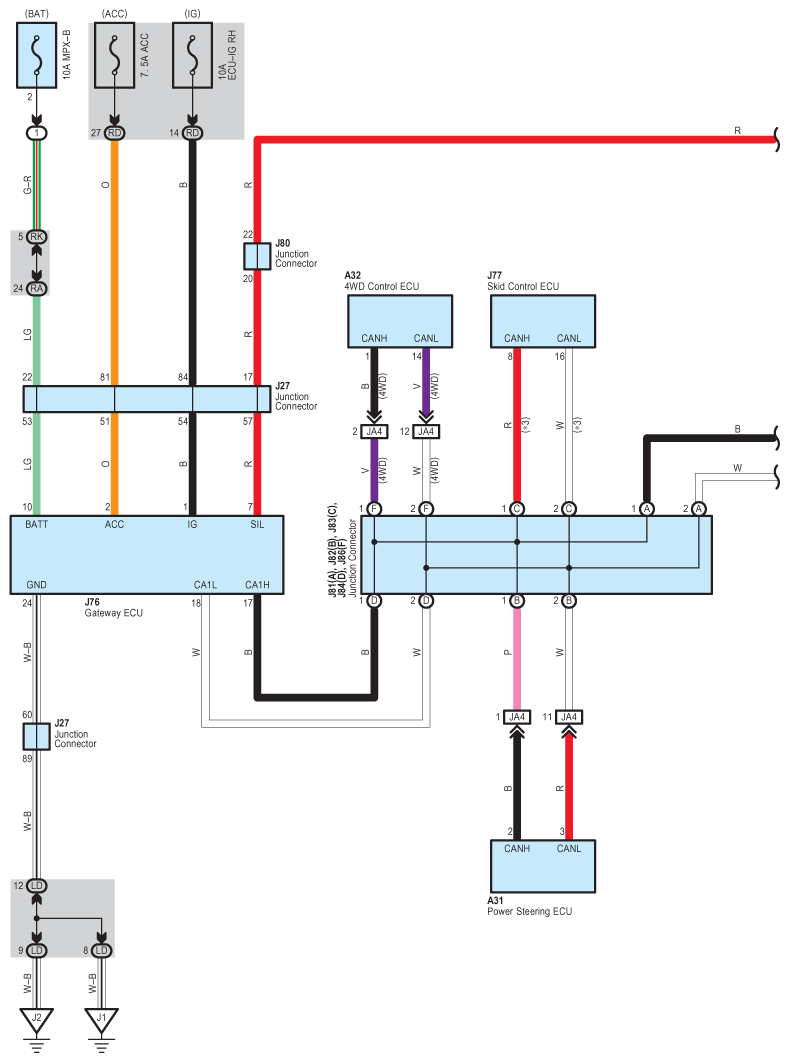

Fig 1: Multiplex Communication System - CAN - Wiring Diagram (1 Of 2)
G08918395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

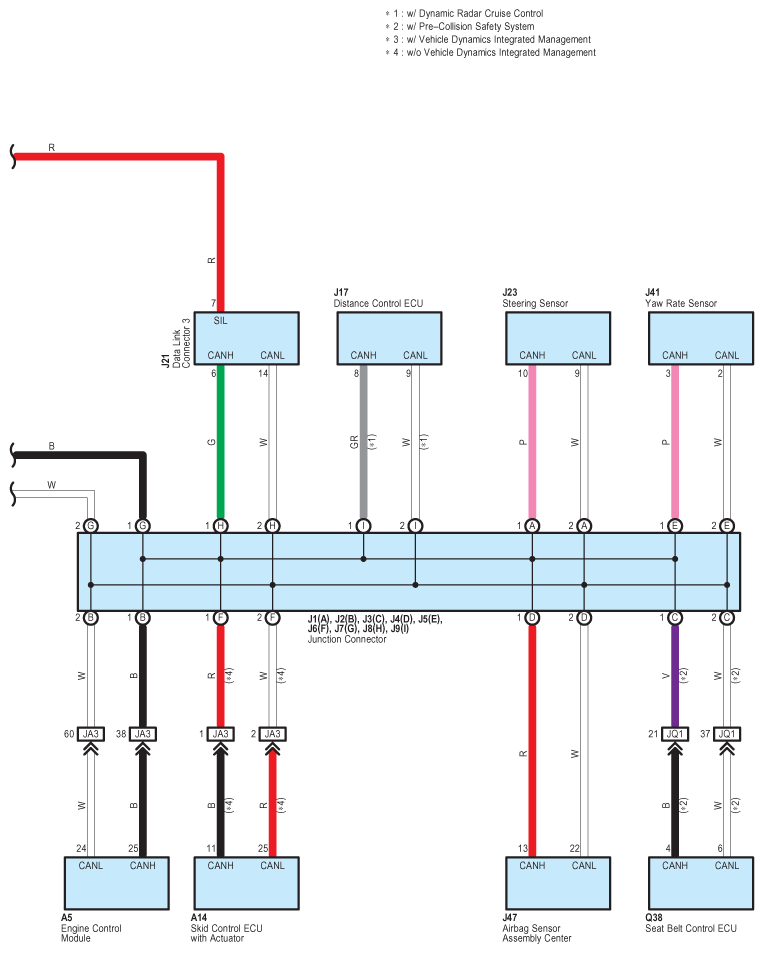

Fig 2: Multiplex Communication System - CAN - Wiring Diagram (2 Of 2)
G08918396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
