Remote Control Mirror without Memory: Notes

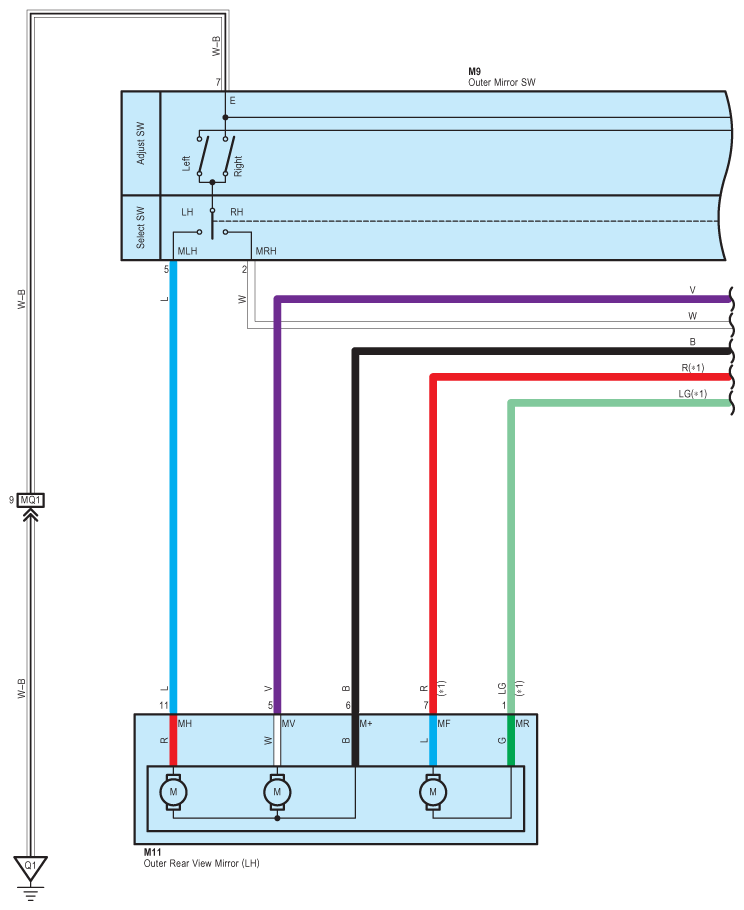

Fig 1: Remote Control Mirror Without Memory - Wiring Diagram (1 Of 2)
G08918647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

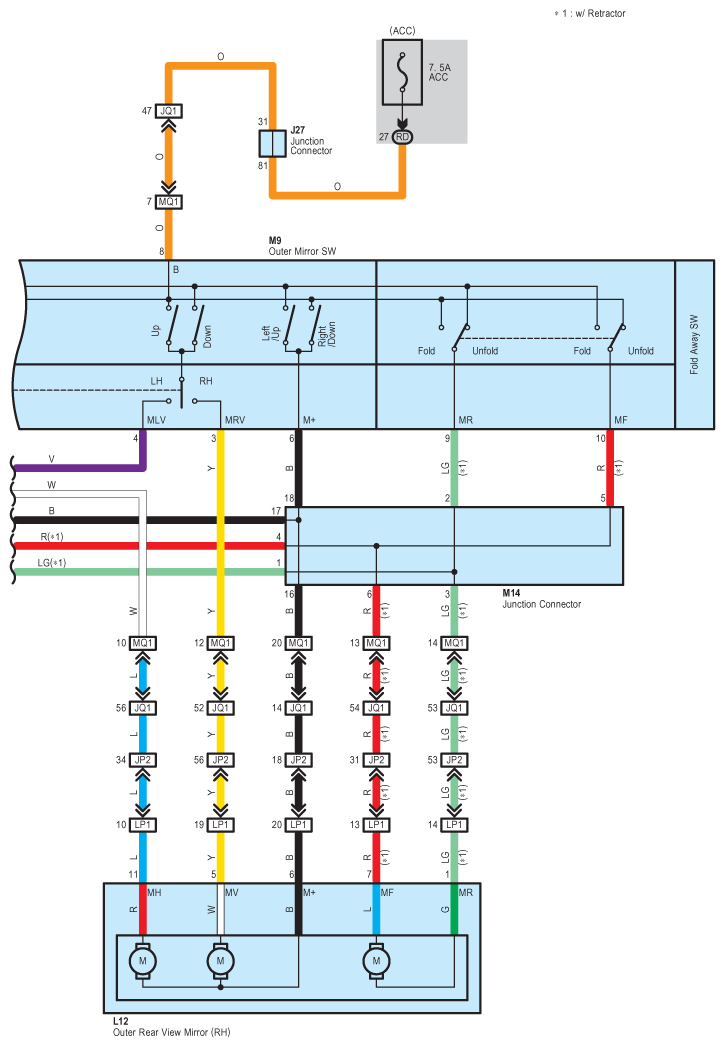

Fig 2: Remote Control Mirror Without Memory - Wiring Diagram (2 Of 2)
G08918648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
