Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel (2GR-FSE) >> Fuel Pump >> Components

Fuel Pump: Components

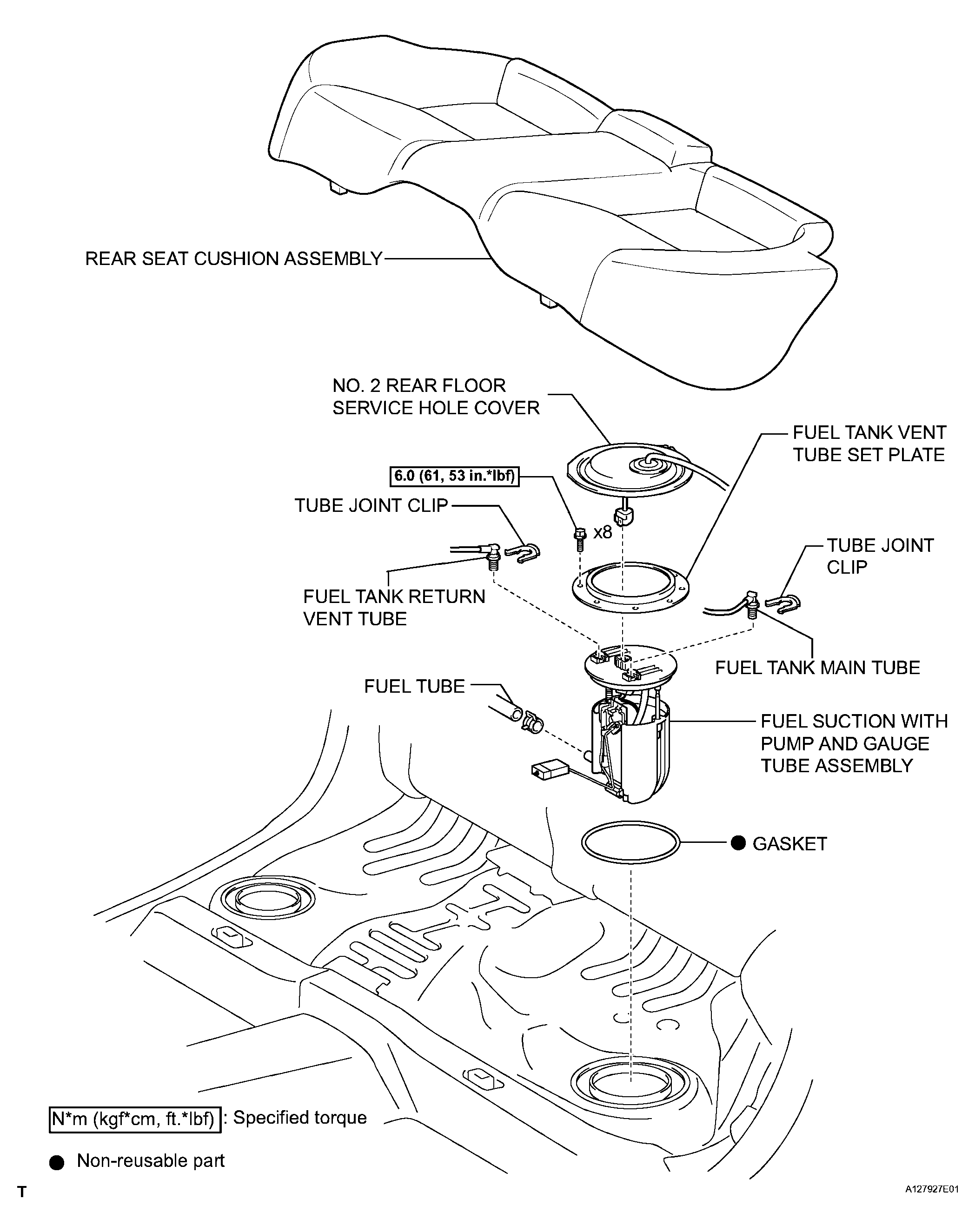

Fig 1: Exploded View Of Fuel Pump Components With Torque Specifications (1 Of 2)
G04056488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

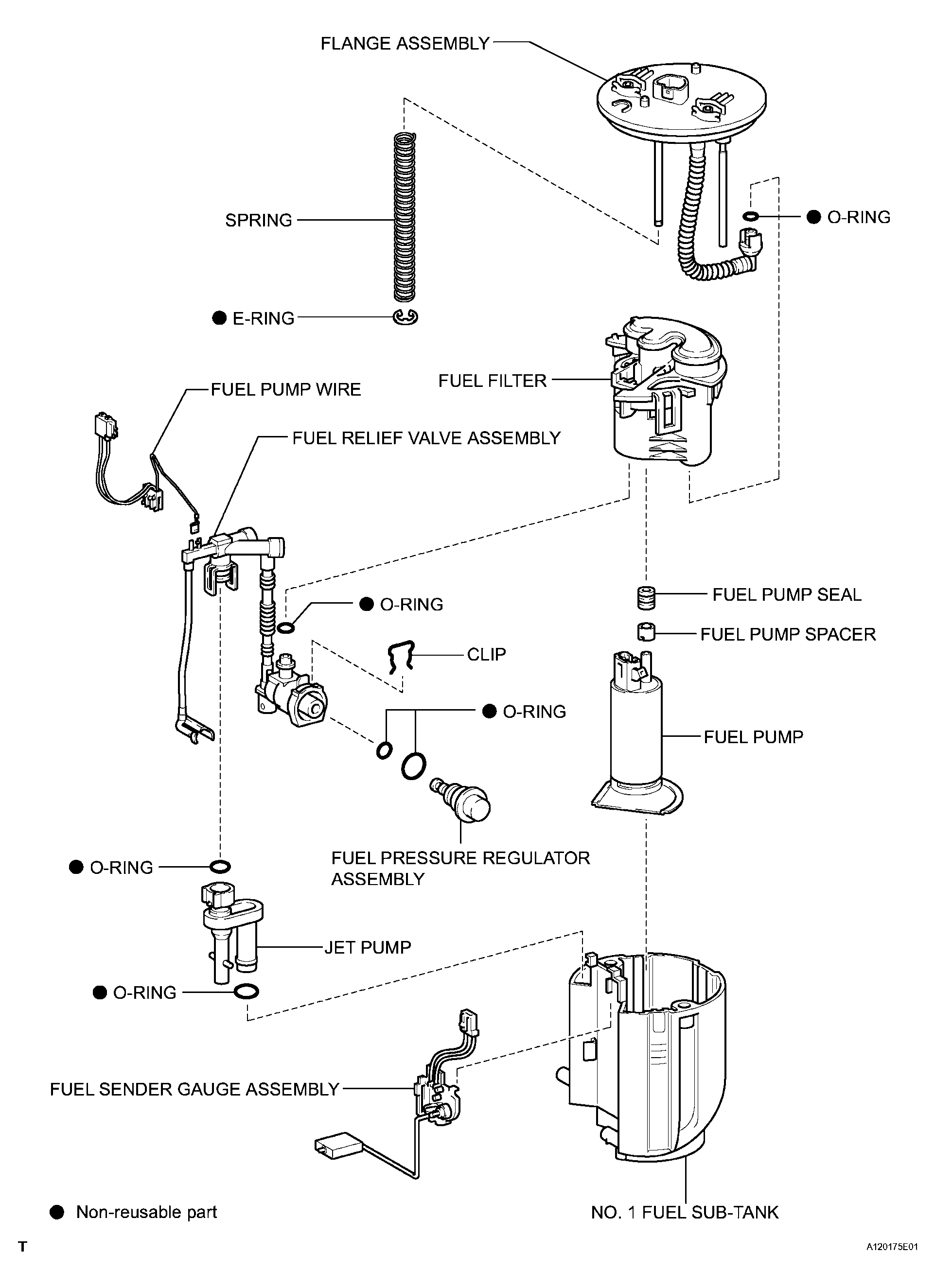

Fig 2: Exploded View Of Fuel Pump Components With Torque Specifications (2 Of 2)
G04056489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
