Parts Location

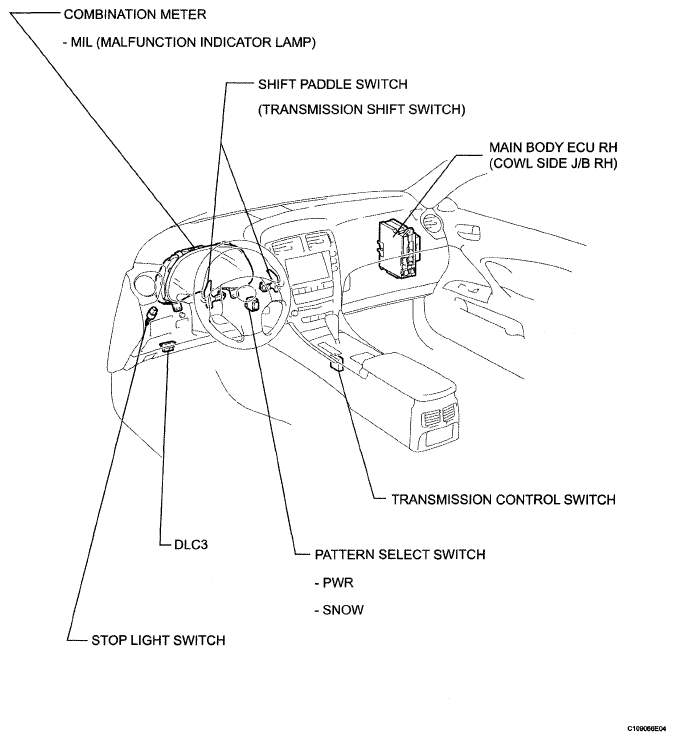

Fig 1: Identifying Automatic Transmission System Parts Location (1 Of 2)
G05316787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

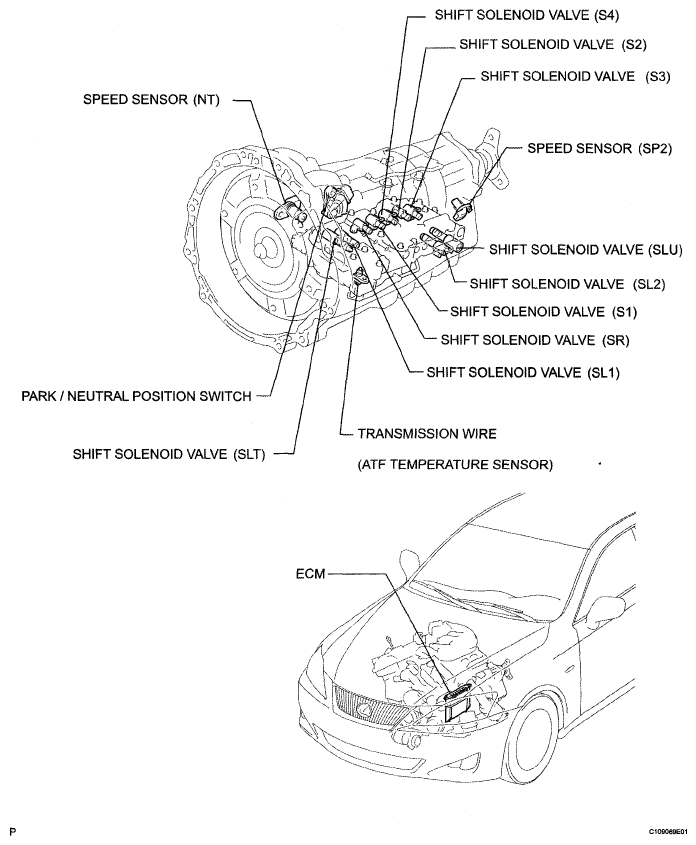

Fig 2: Identifying Automatic Transmission System Parts Location (2 Of 2)
G05316788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
