Shift Lever Assembly: Components

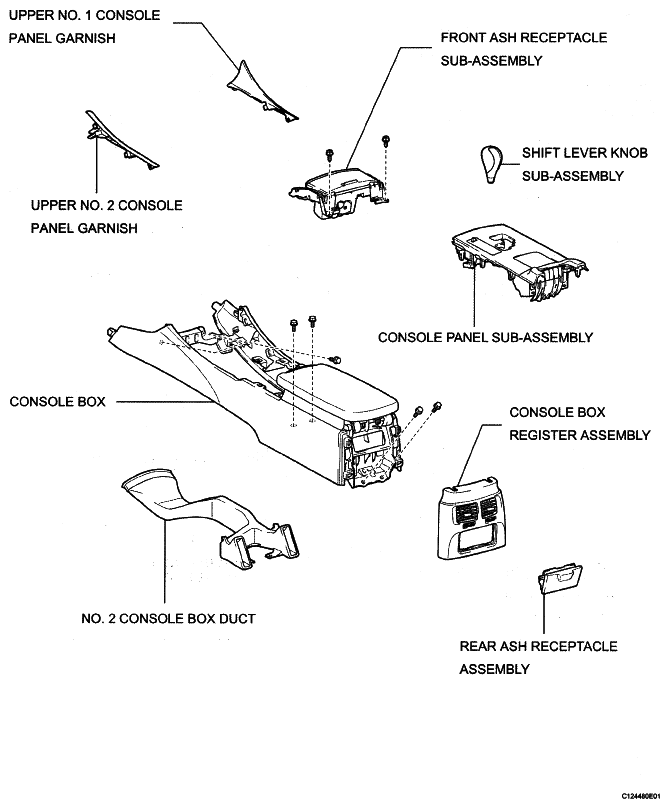

Fig 1: Identifying Shift Lever Assembly Components (1 Of 3)
G05317023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

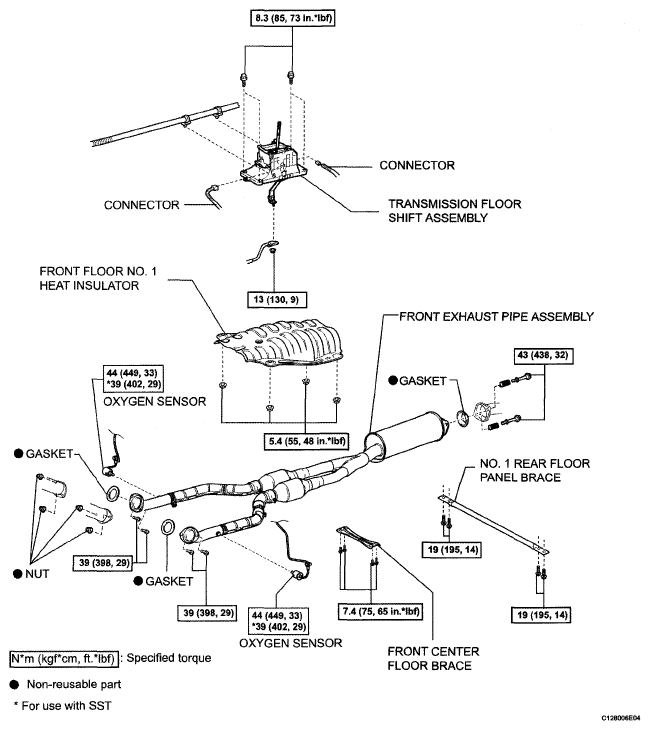

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 3)
G05317024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

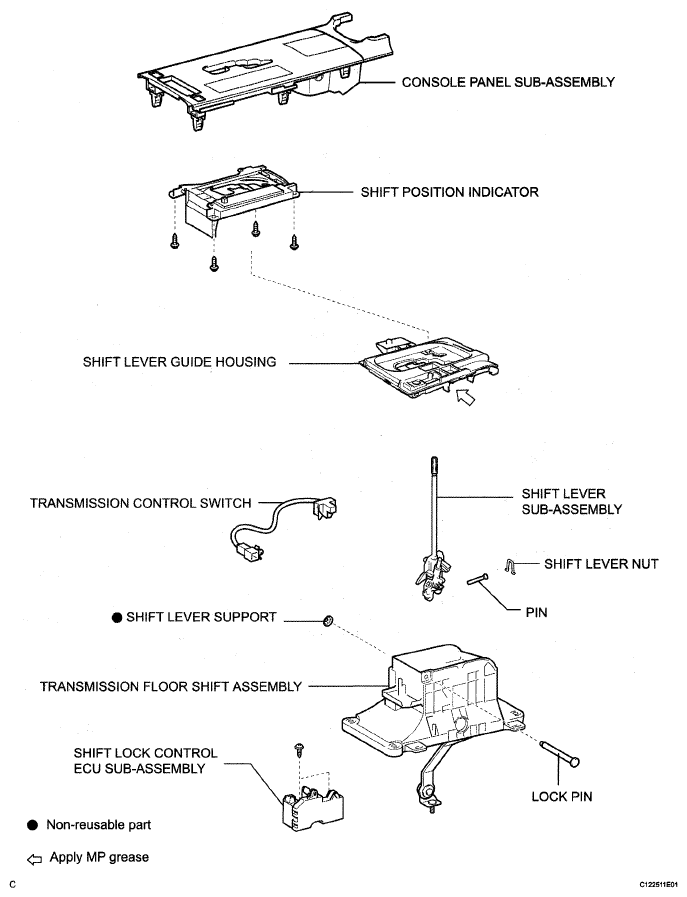

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)
G05317025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
