Front Window Deicer: Notes

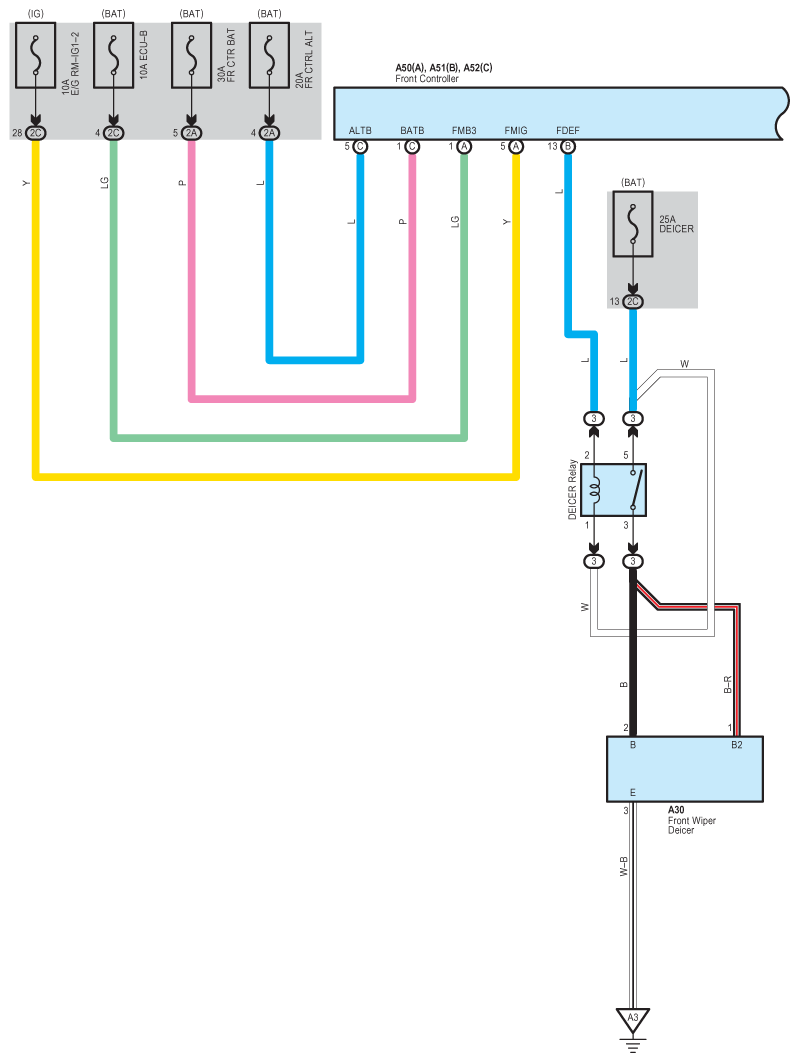

Fig 1: Front Window Deicer System Wiring Diagram (1 Of 2)
G08920870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

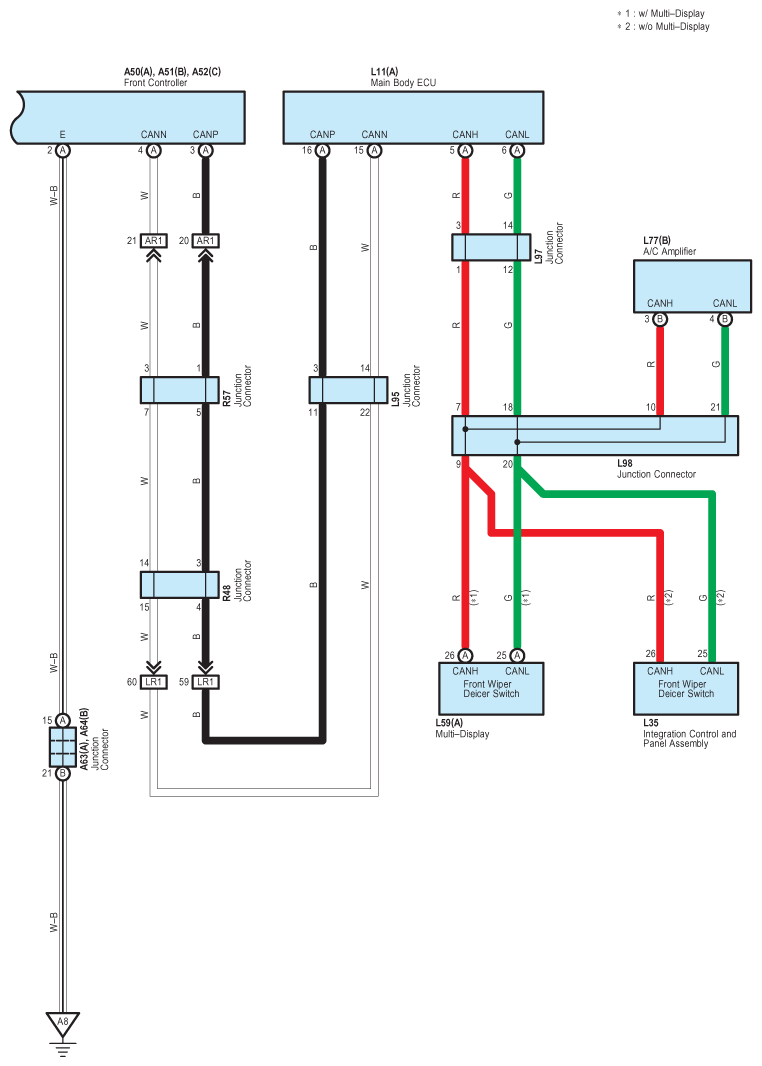

Fig 2: Front Window Deicer System Wiring Diagram (2 Of 2)
G08920871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
