Sliding Roof: Notes

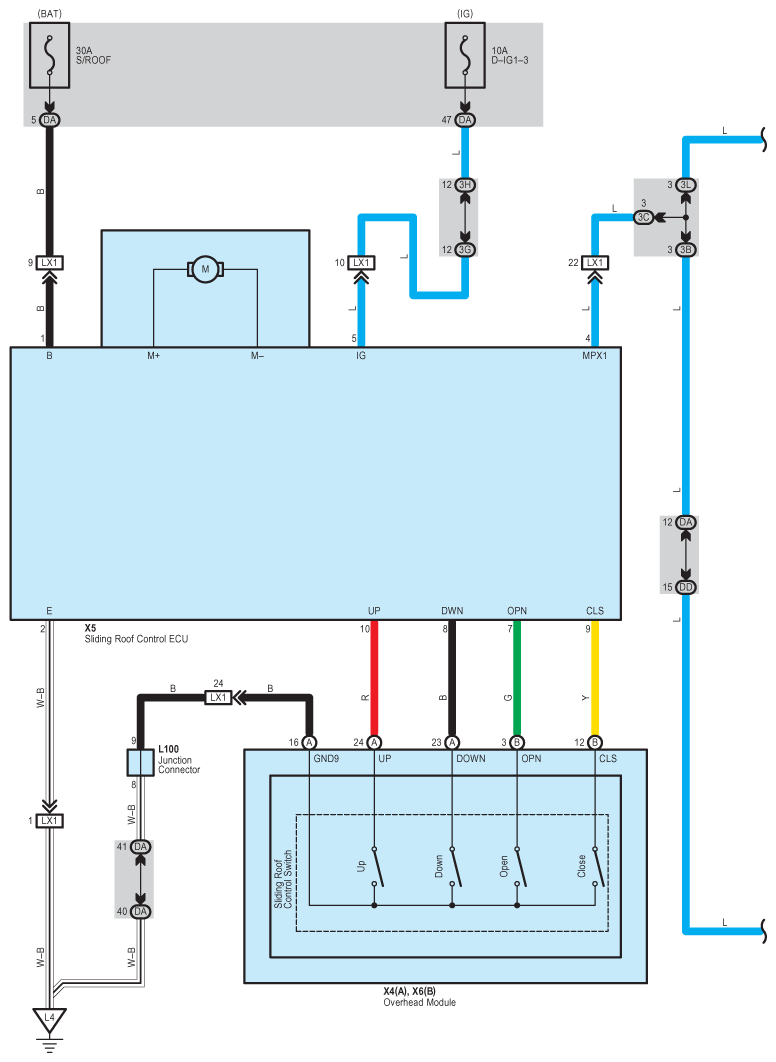

Fig 1: Sliding Roof System Wiring Diagram (1 Of 4)
G08920779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

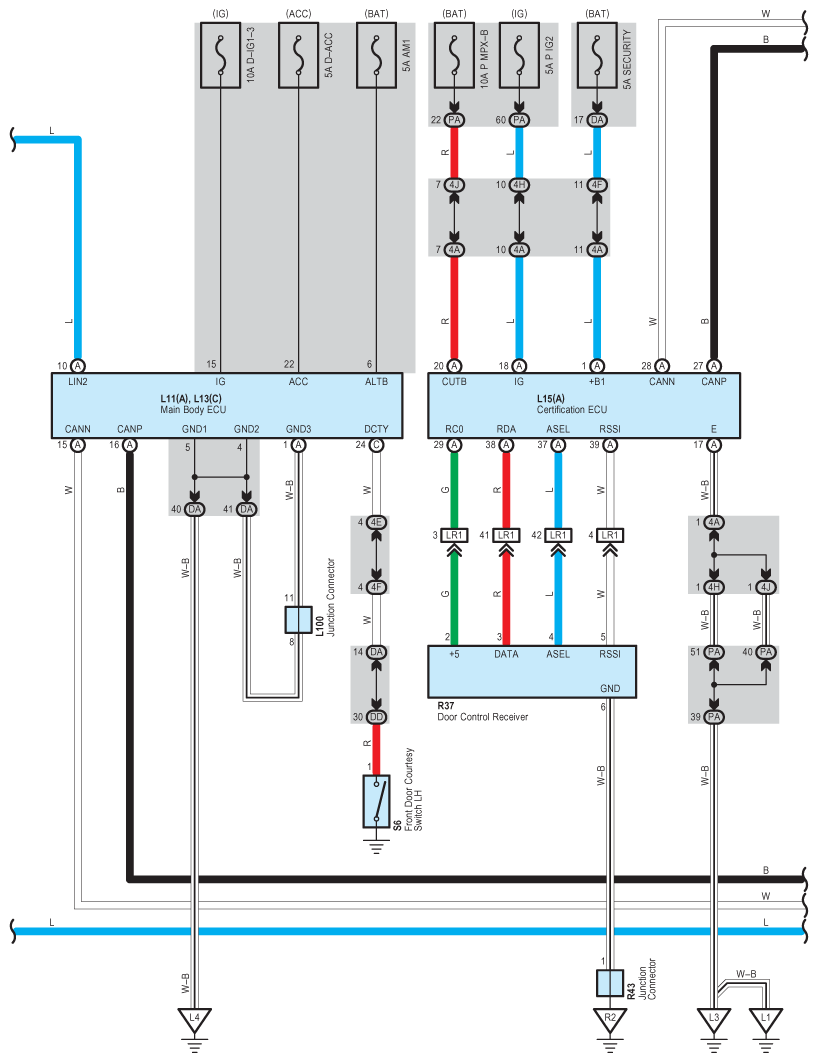

Fig 2: Sliding Roof System Wiring Diagram (2 Of 4)
G08920780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

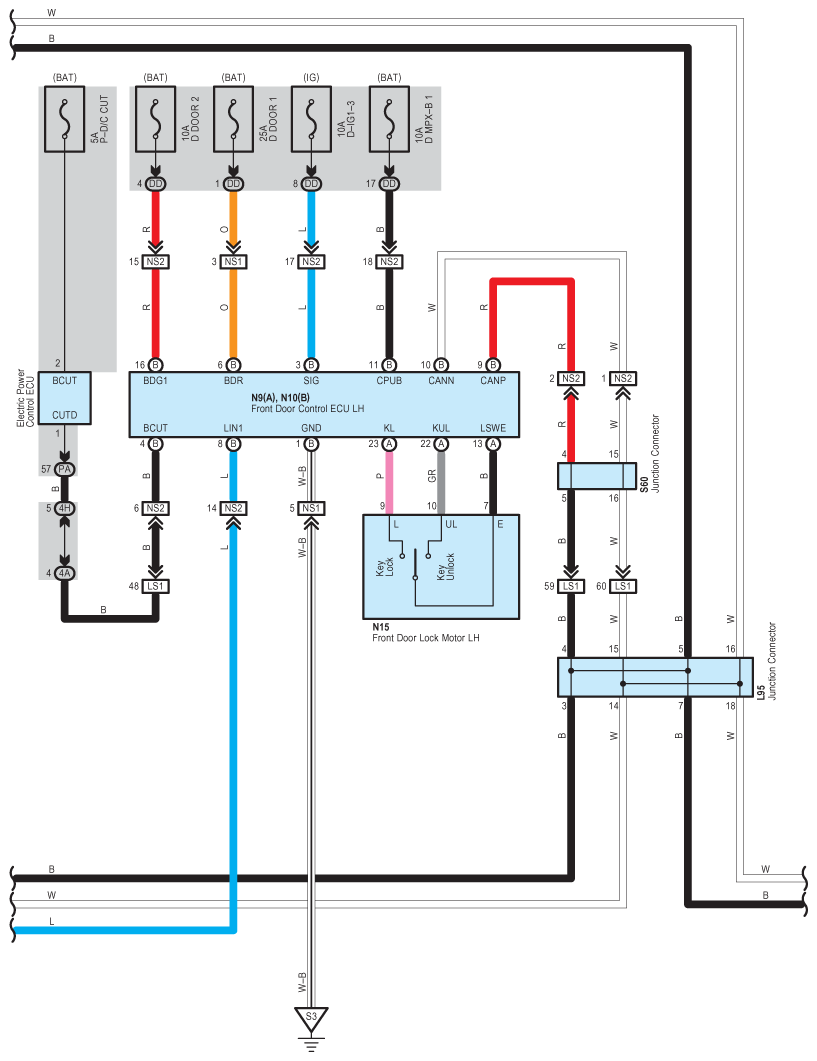

Fig 3: Sliding Roof System Wiring Diagram (3 Of 4)
G08920781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

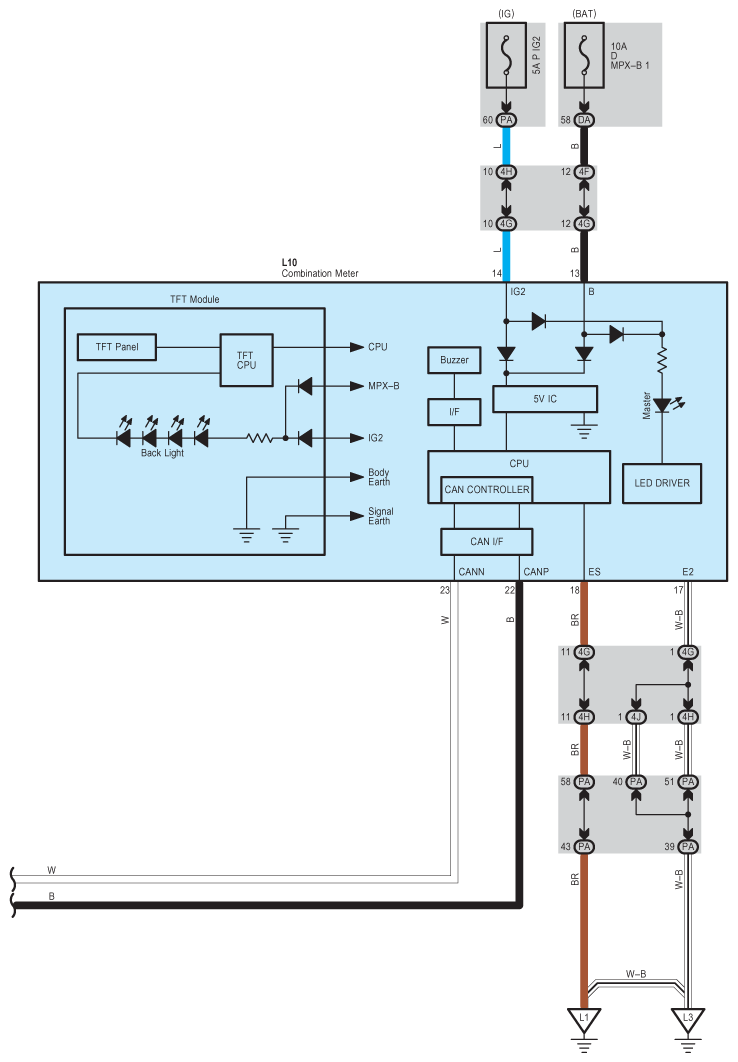

Fig 4: Sliding Roof System Wiring Diagram (4 Of 4)
G08920782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
