Display And Navigation Assembly: Components

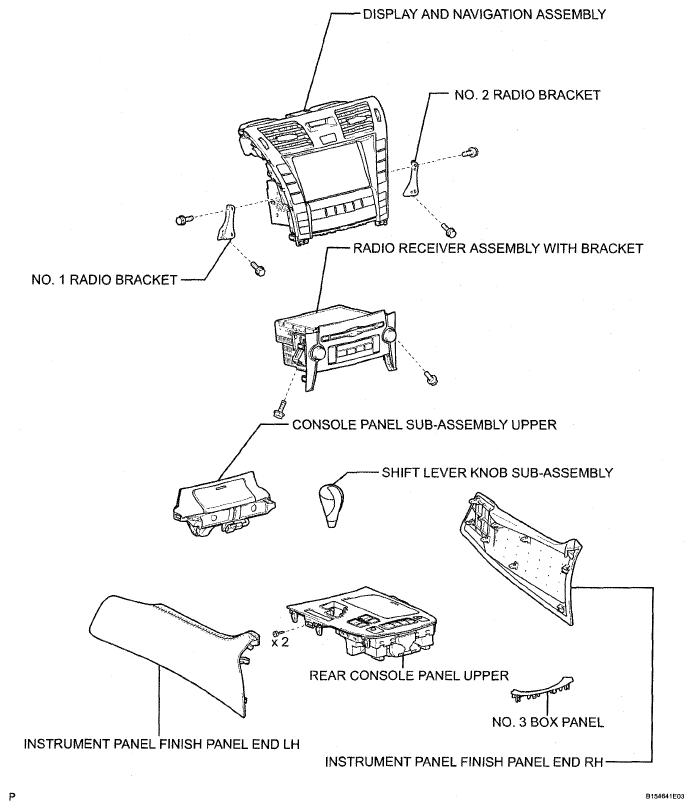

Fig 1: Identifying Display And Navigation Assembly Components (1 Of 2)
G04945694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Display And Navigation Assembly Components (2 Of 2)
G04953989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
