Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior >> Rear Sunshade Assembly >> Components

Rear Sunshade Assembly: Components

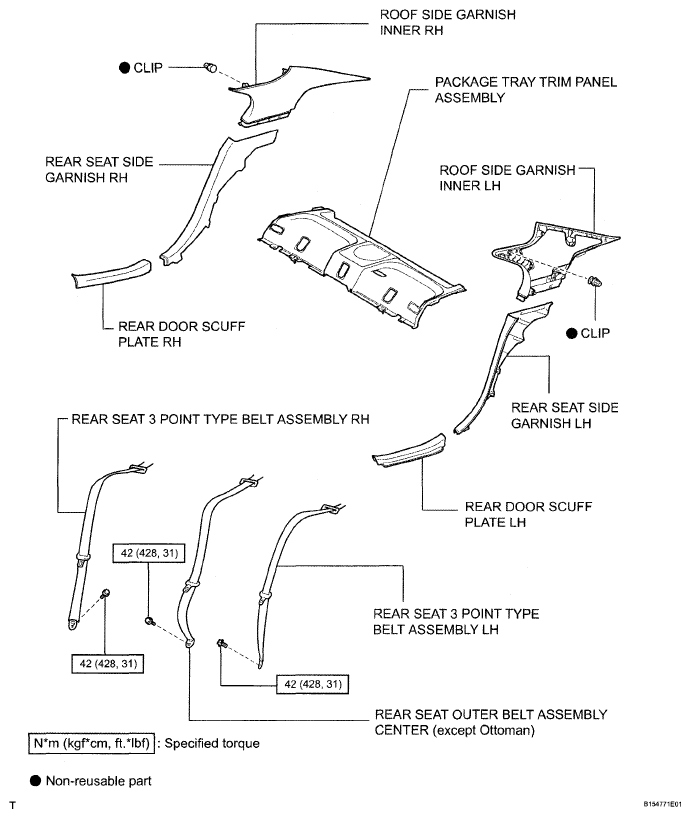

Fig 1: Rear Sunshade Assembly Replacement Components With Torque Specifications (1 Of 2)
G04946663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

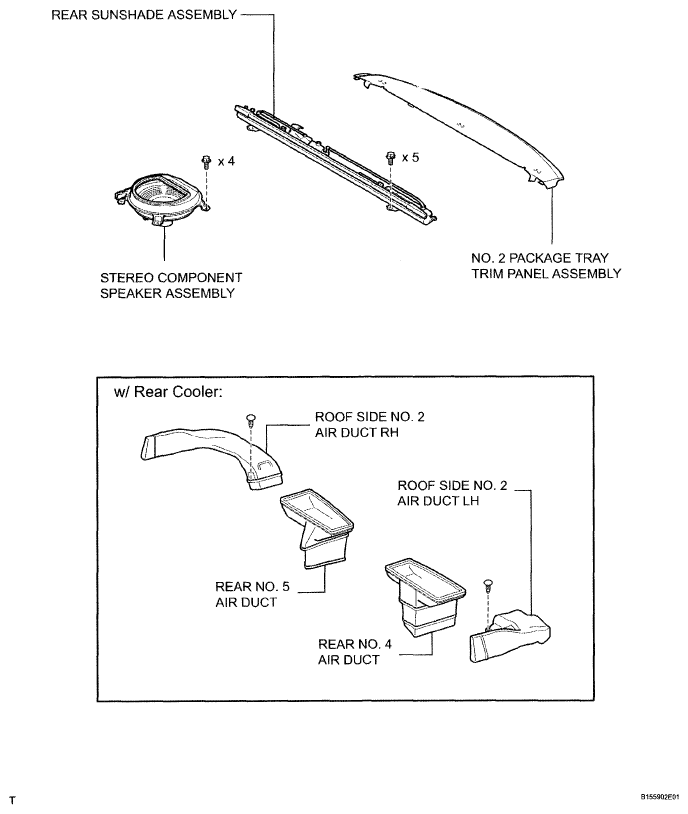

Fig 2: Identifying Rear Sunshade Assembly Components (2 Of 2)
G04946664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
