Auxiliary Emission Control Systems: Canister: Components

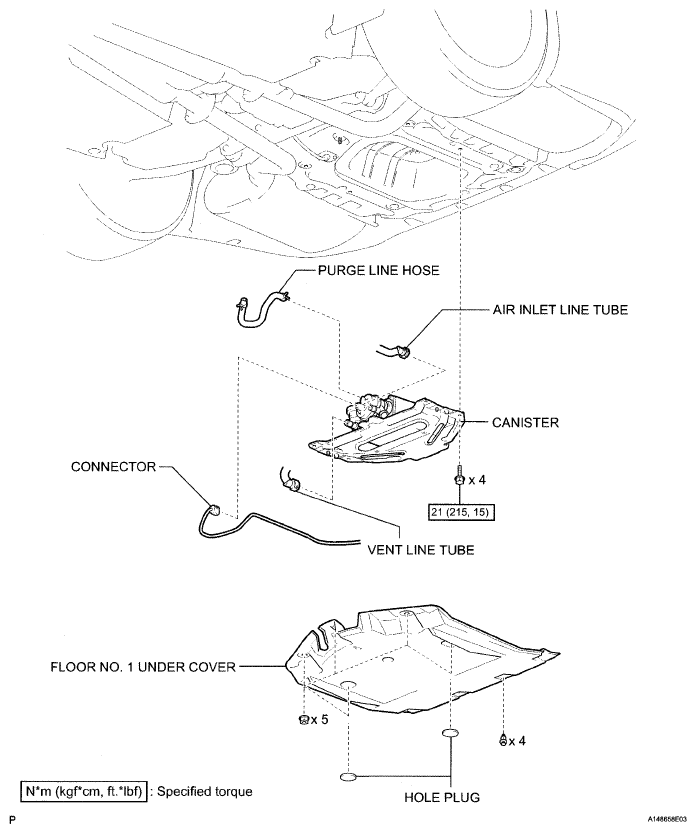

Fig 1: Identifying Canister Components
G04943708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
