System Diagram

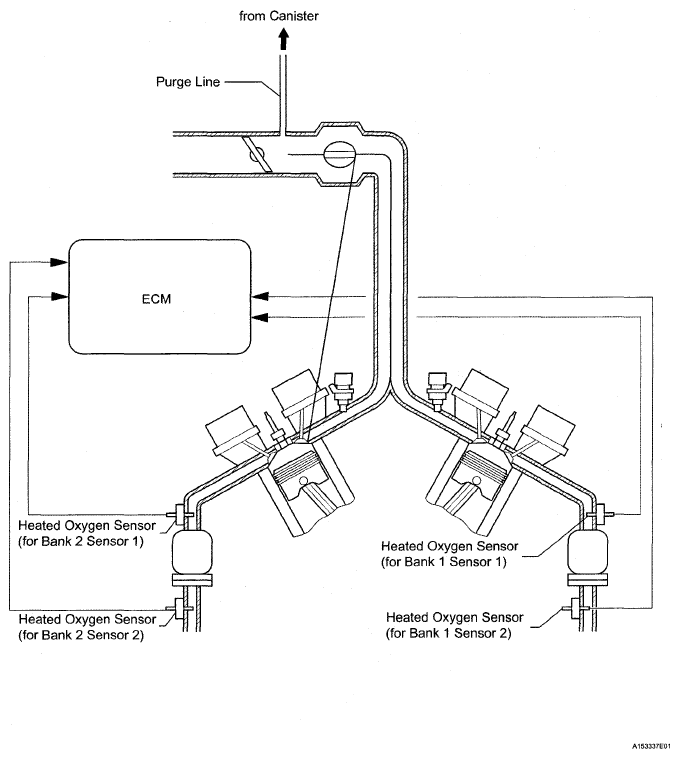

Fig 1: Emission Control System Diagram (1 Of 2)
G04943702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

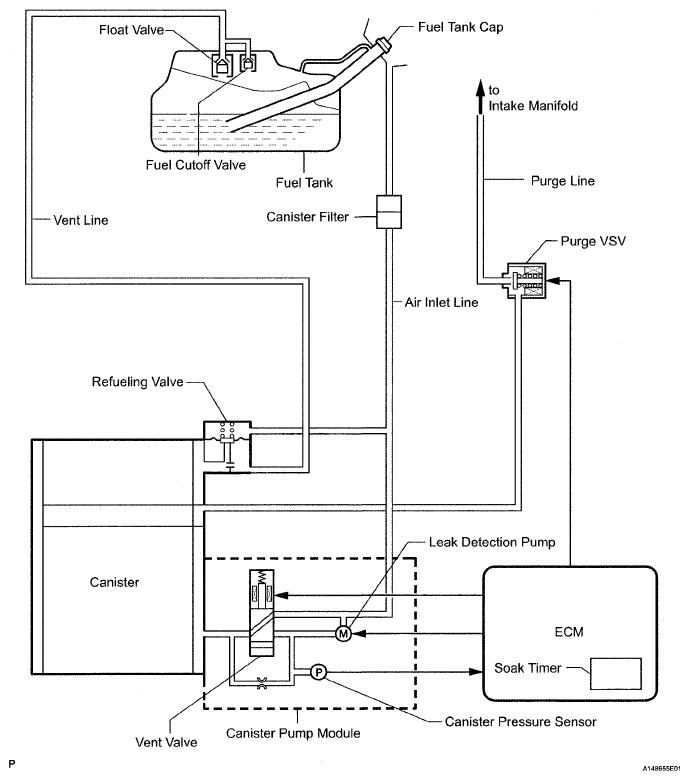

Fig 2: Emission Control System Diagram (2 Of 2)
G04943703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

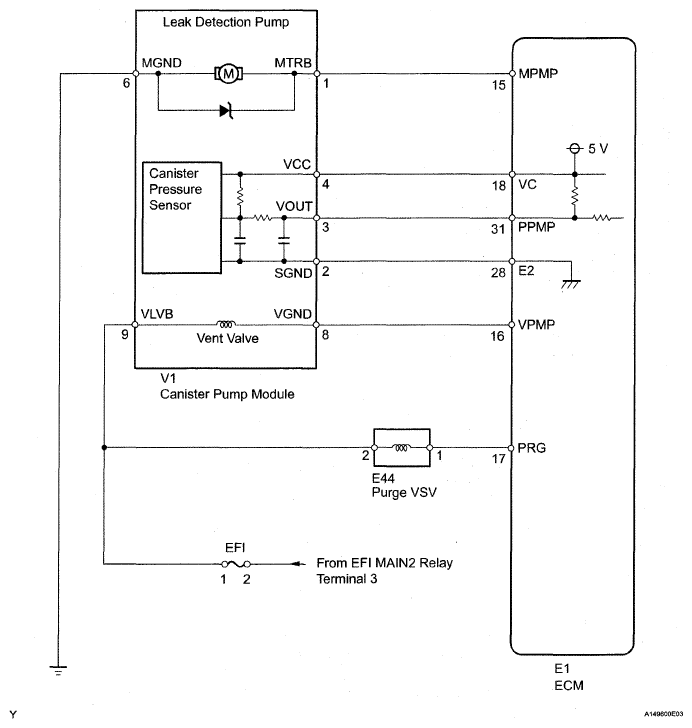

Fig 3: Emission Control System - Circuit Diagram
G04943704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
