Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Intake >> Intake Air Control Valve Actuator >> Components

Intake Air Control Valve Actuator: Components

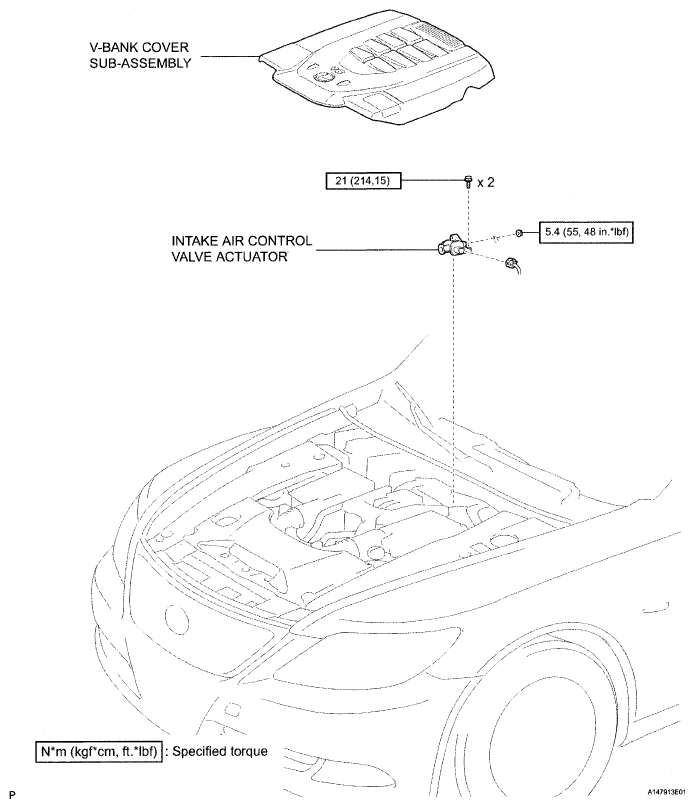

Fig 1: Intake Air Control Valve Actuator Replacement Components With Torque Specifications

G04948153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
