Engine Coolant Temperature Sensor: Components

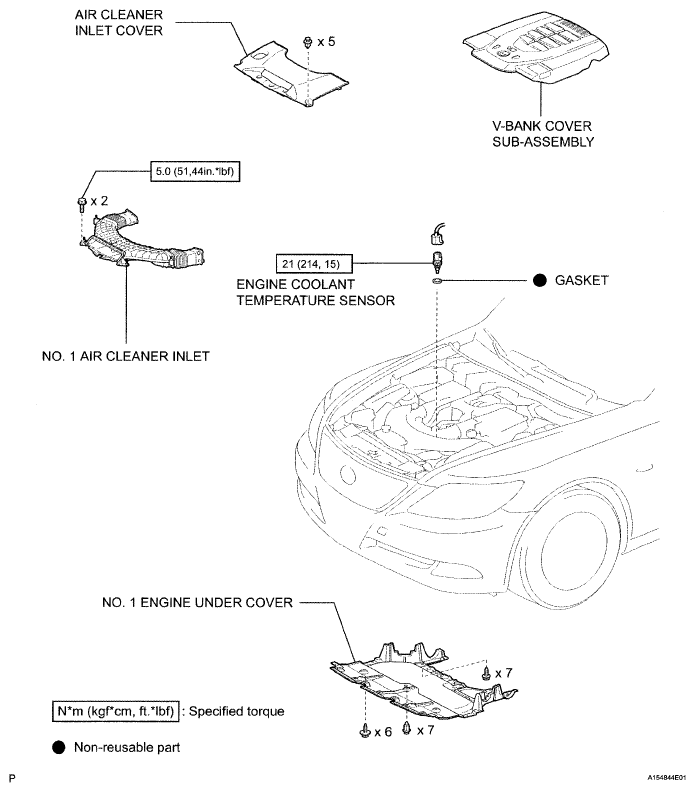

Fig 1: Engine Coolant Temperature Sensor With Torque Specifications

G04943081

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
