Driver Monitor Camera: Installation

INSTALL DRIVER MONITOR CAMERA
1. Attach the claws to install the camera.

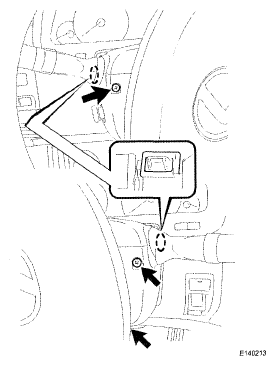

  Fig 1: Identifying Camera Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camera with the 3 screws.
  Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

  Fig 2: Locating Driver Monitor Camera Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVER MONITOR BRACKET
1. Attach the claw to install the bracket.
2. Install the screw.
  Torque: 0.9 N*m (9.0 kgf*cm, 8.0 in.*lbf)

  Fig 3: Locating Driver Monitor Bracket Claw And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (for Upper Side)
1. Connect the connector.
2. Attach the claw and 4 clips to install the cover.

  Fig 4: Locating Steering Column Cover Claw And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (for Lower Side)
1. Attach the 2 claws to install the cover.
2. Install the 3 screws.
Fig 5: Locating Steering Column Cover Screws And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see CHECK MODE PROCEDURE ).
