Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control Ecu >> Components

Suspension Control Ecu: Components

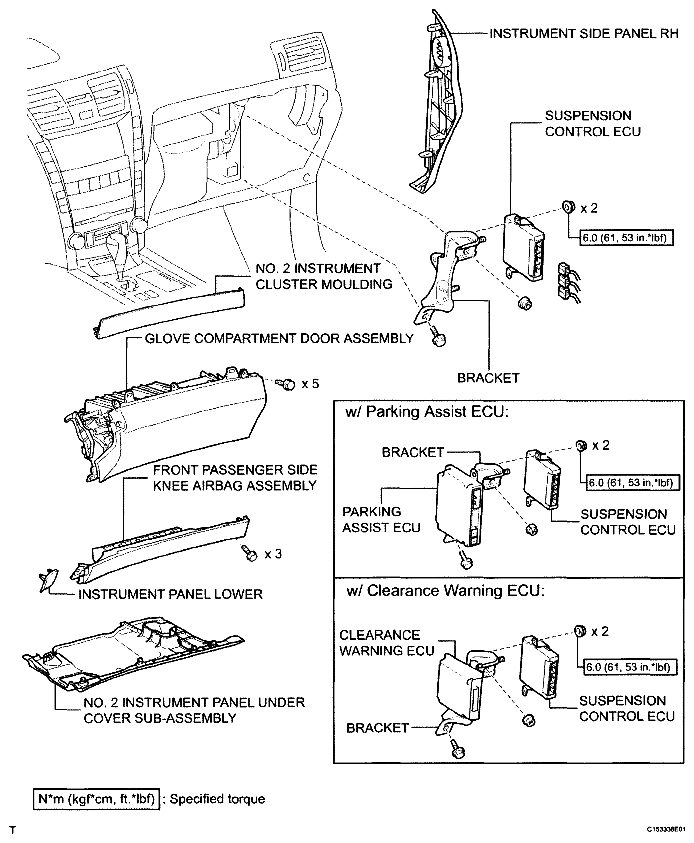

Fig 1: Suspension Control ECU Replacement Components With Torque Specifications
G04944225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
