Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield / WINDOWGLASS >> Quarter Window Glass >> Components

Quarter Window Glass: Components

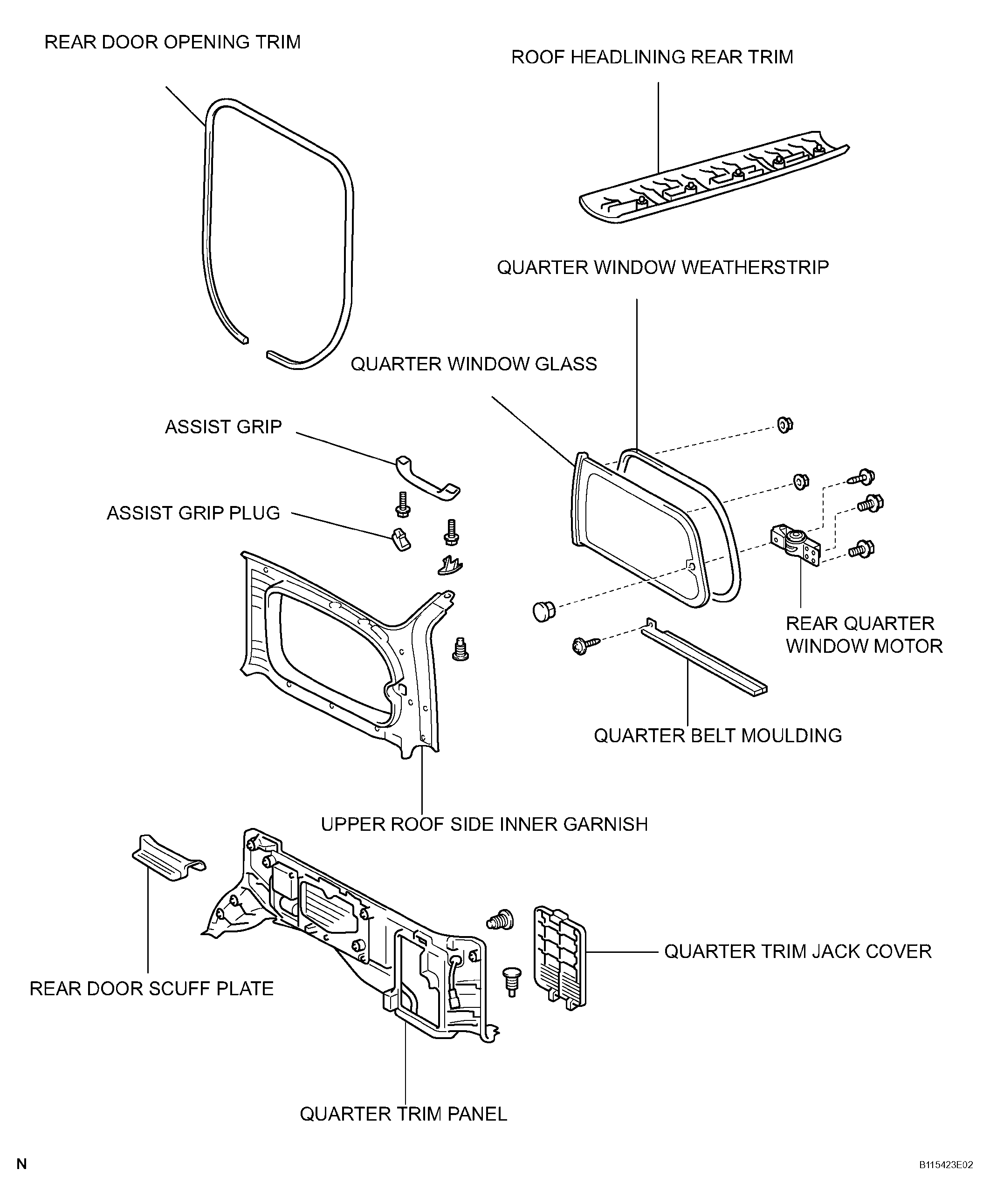

Fig 1: Identifying Quarter Window Glass Components (1 Of 2)
G04065753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Quarter Window Glass Components (2 Of 2)
G04065754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
