Audio System without Navigation System: Notes

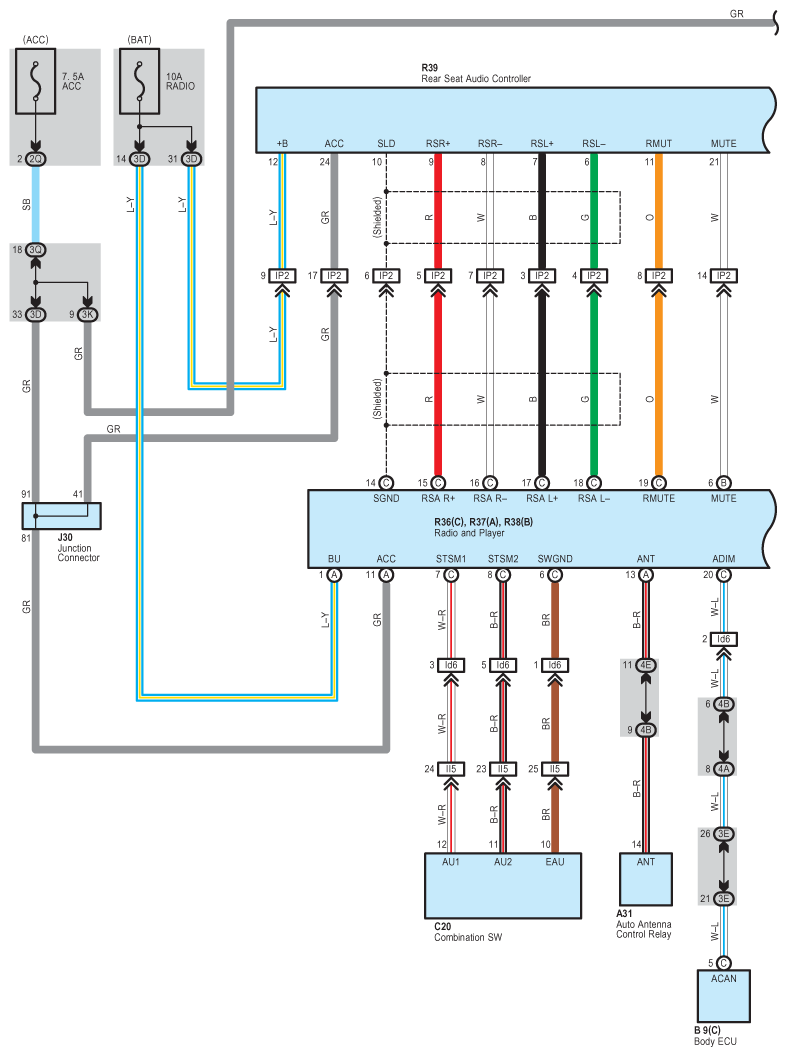

Fig 1: Audio System Without Navigation System - Wiring Diagram (1 Of 3)
G08922904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

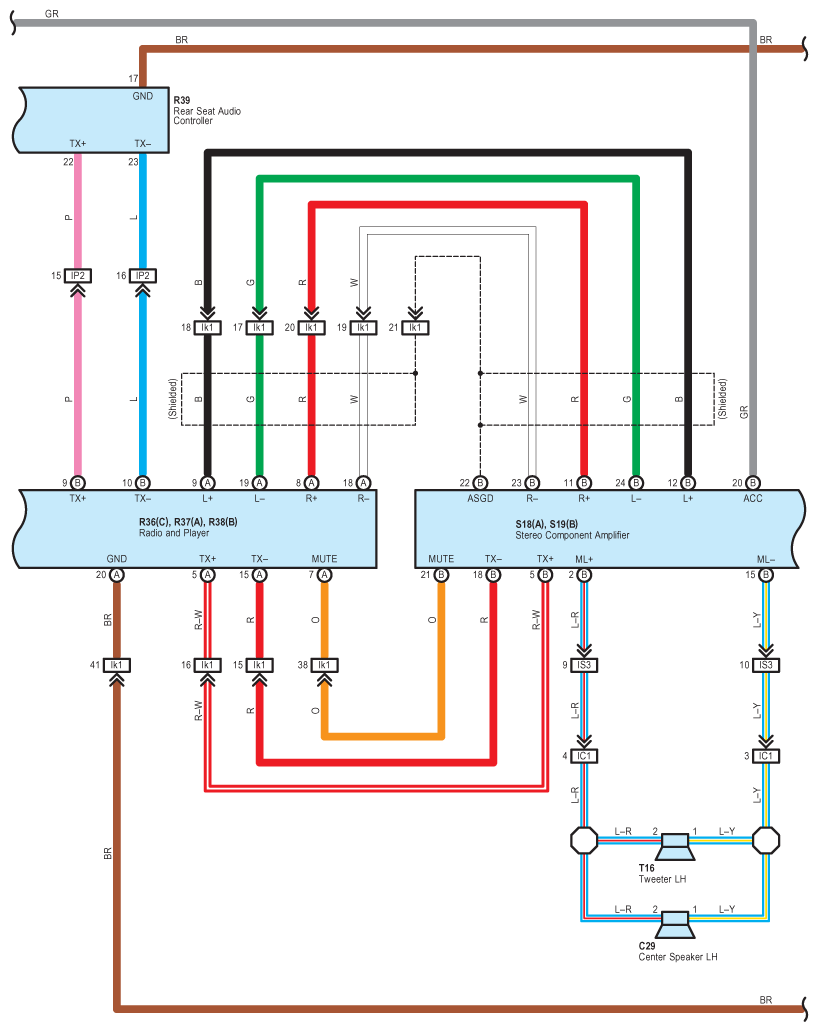

Fig 2: Audio System Without Navigation System - Wiring Diagram (2 Of 3)
G08922905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

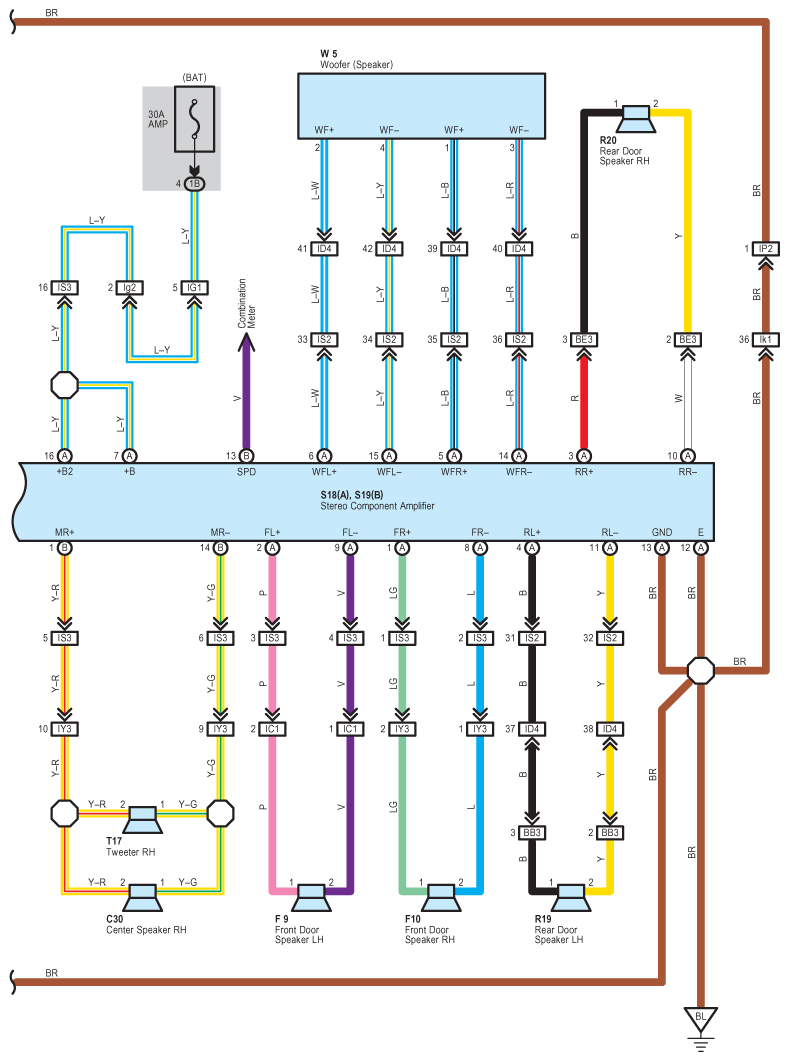

Fig 3: Audio System Without Navigation System - Wiring Diagram (3 Of 3)
G08922906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
