Cruise Control: Notes

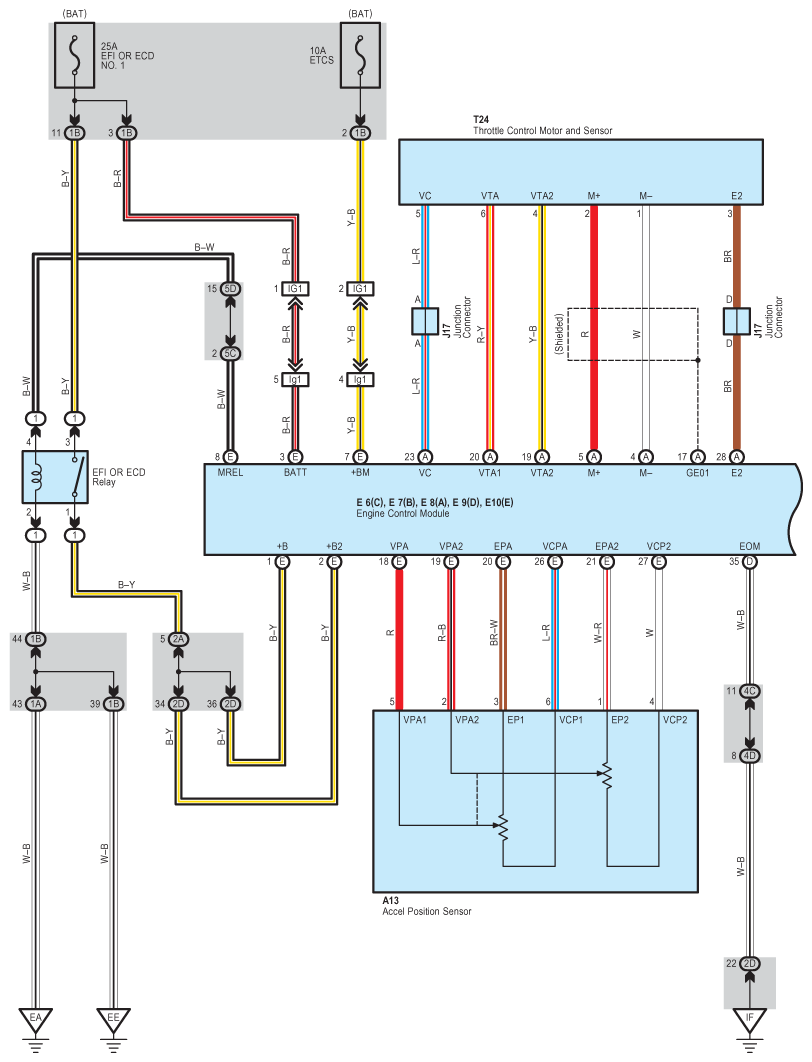

Fig 1: Cruise Control - Wiring Diagram (1 Of 3)
G08922806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

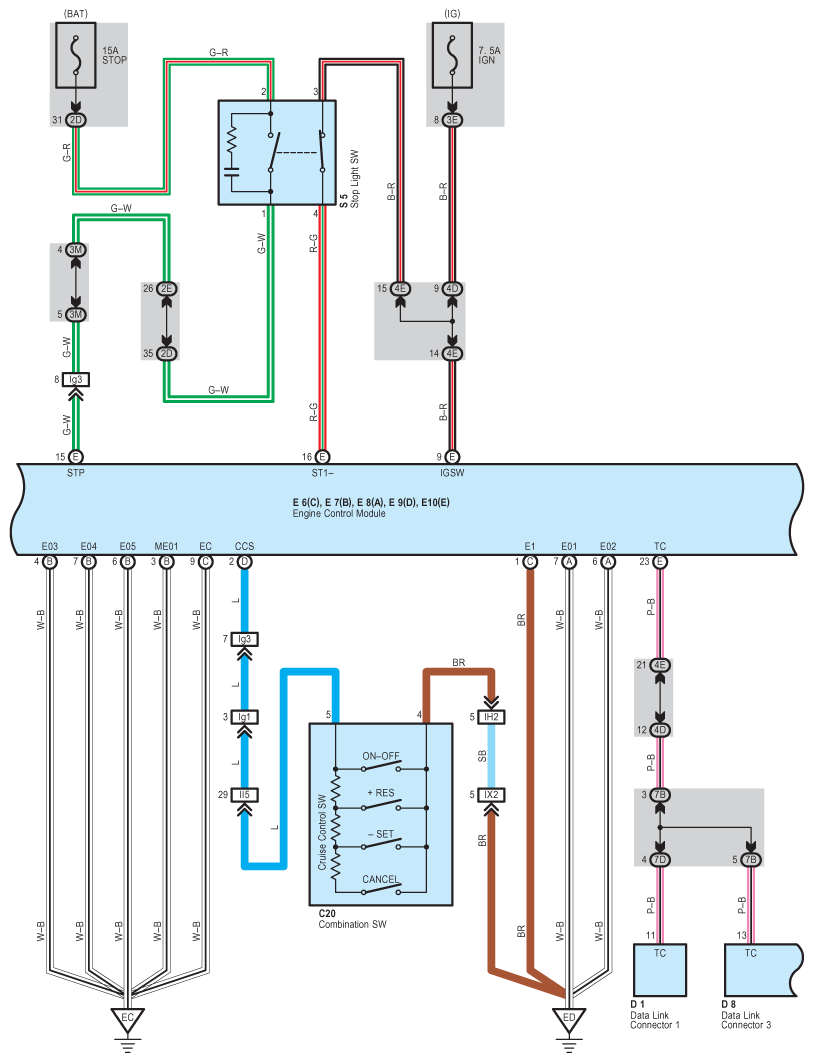

Fig 2: Cruise Control - Wiring Diagram (2 Of 3)
G08922807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

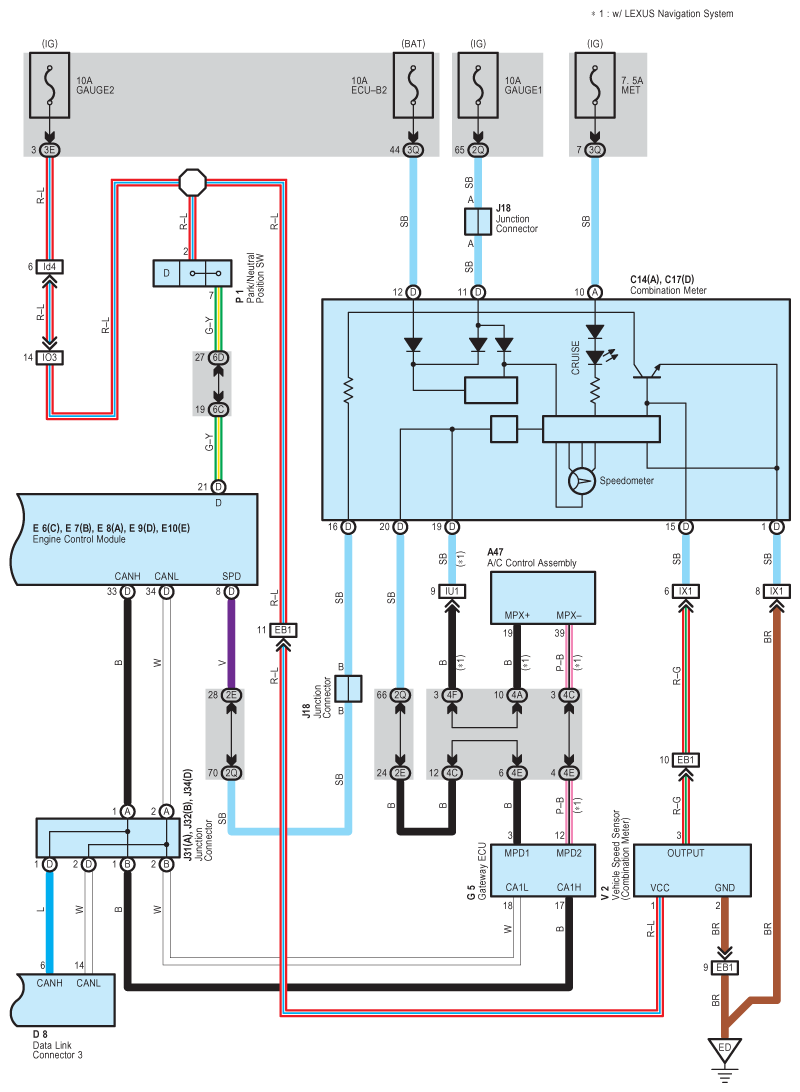

Fig 3: Cruise Control - Wiring Diagram (3 Of 3)
G08922808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
