Headlight with Daytime Running Light: Notes

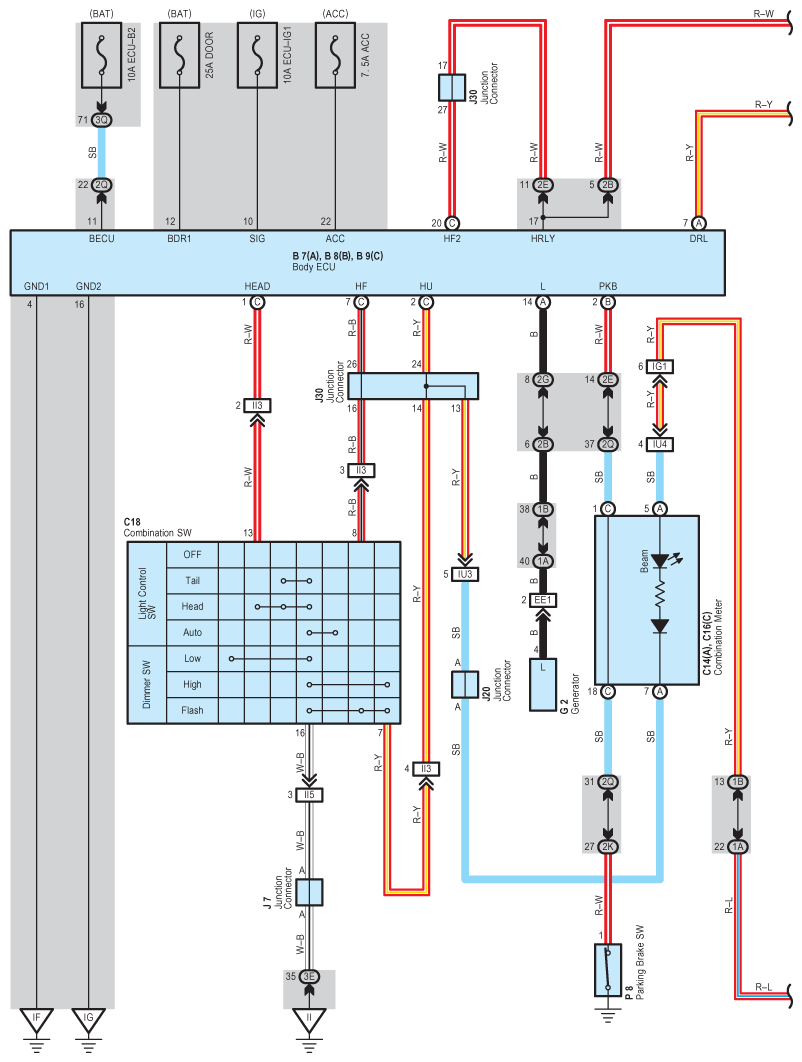

Fig 1: Headlight With Daytime Running Light - Wiring Diagram (1 Of 2)
G08922726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

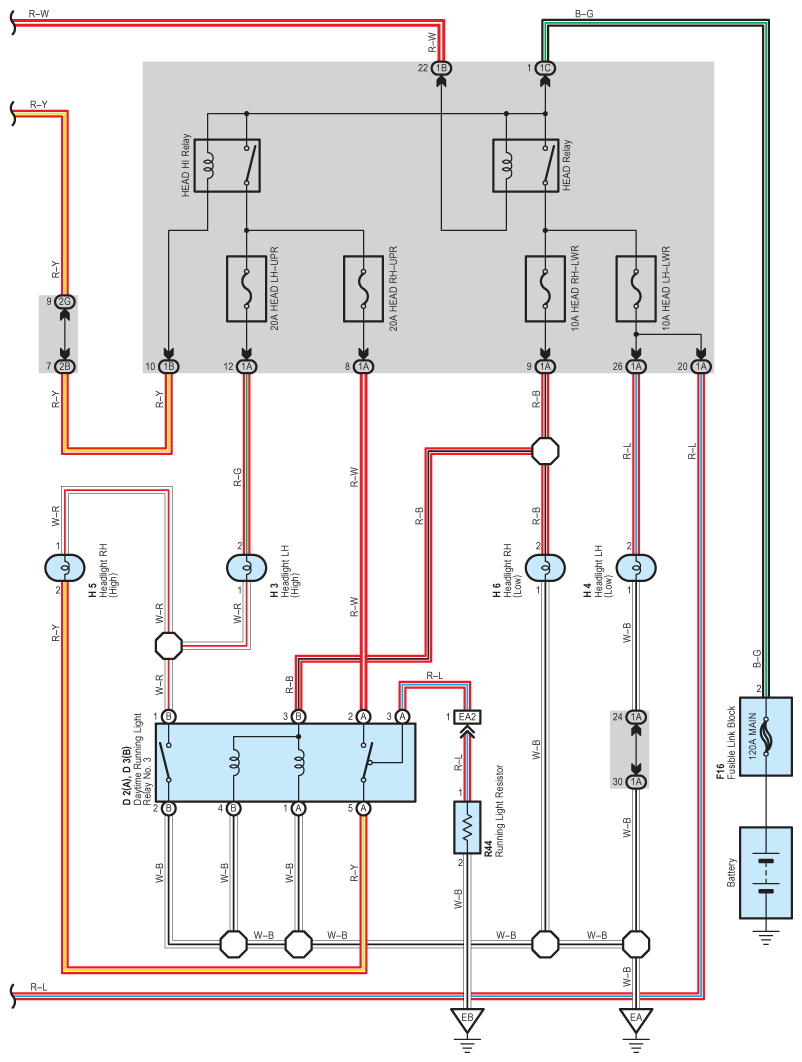

Fig 2: Headlight With Daytime Running Light - Wiring Diagram (2 Of 2)
G08922727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
