Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight without Daytime Running Light >> Notes

Headlight without Daytime Running Light: Notes

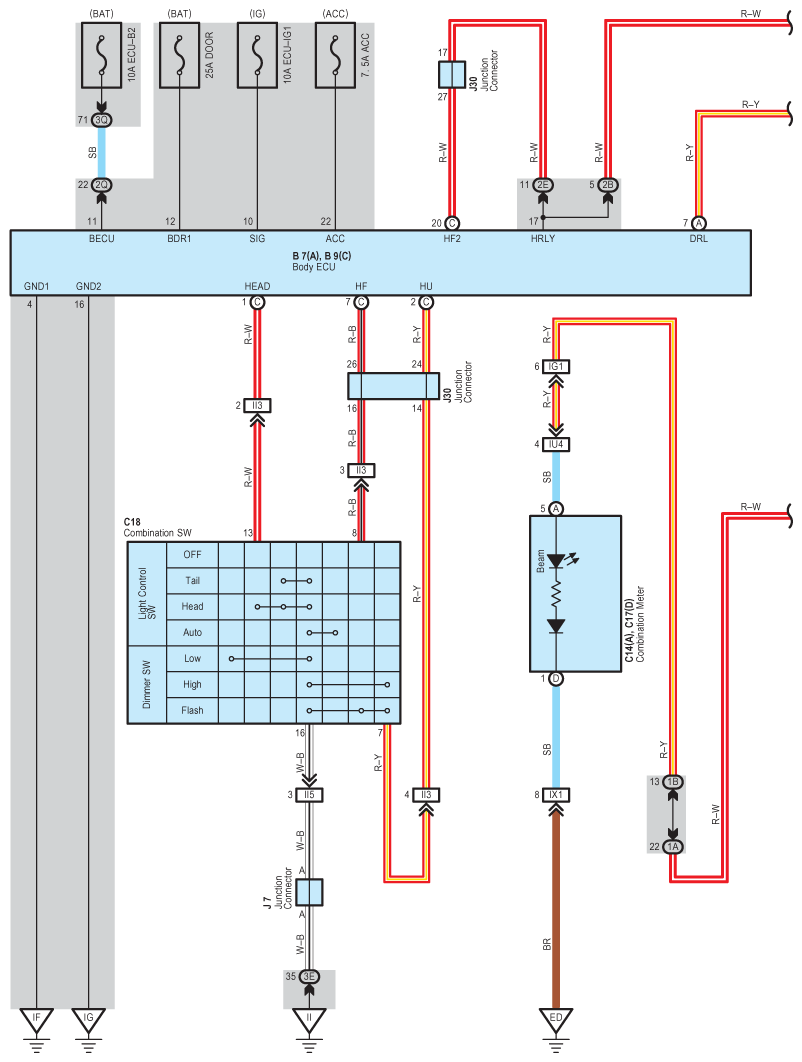

Fig 1: Headlight Without Daytime Running Light - Wiring Diagram (1 Of 2)
G08922728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

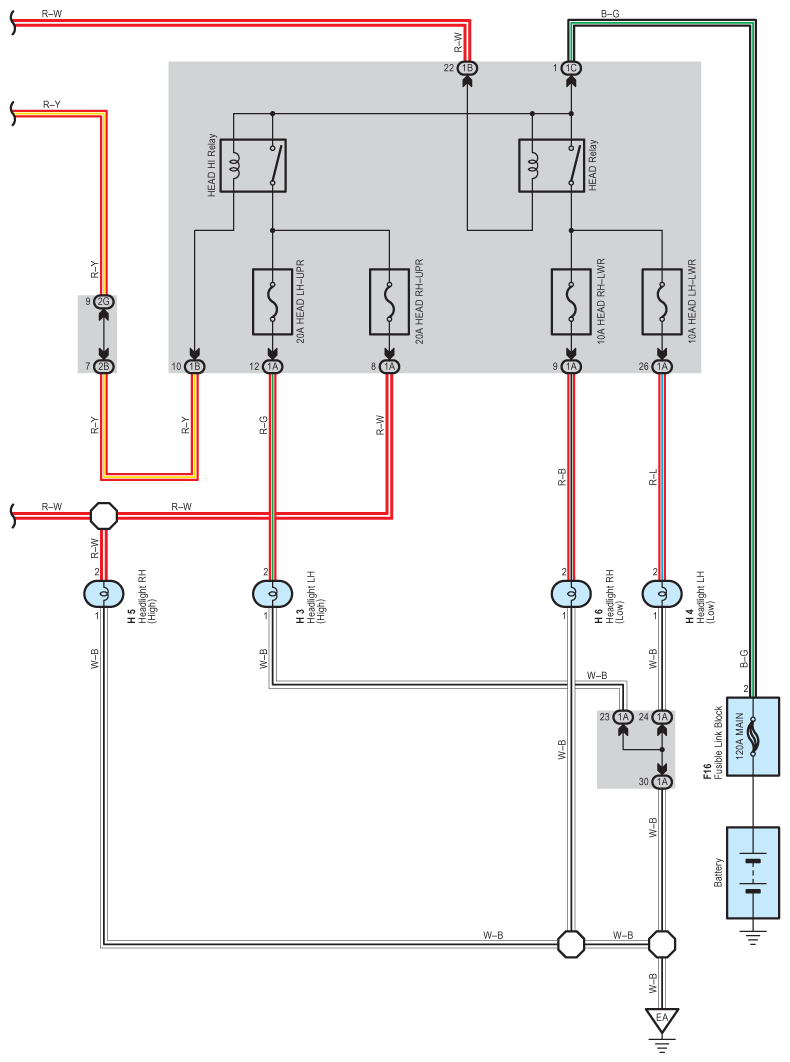

Fig 2: Headlight Without Daytime Running Light - Wiring Diagram (2 Of 2)
G08922729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
