OEM System Circuits: Ignition: Notes

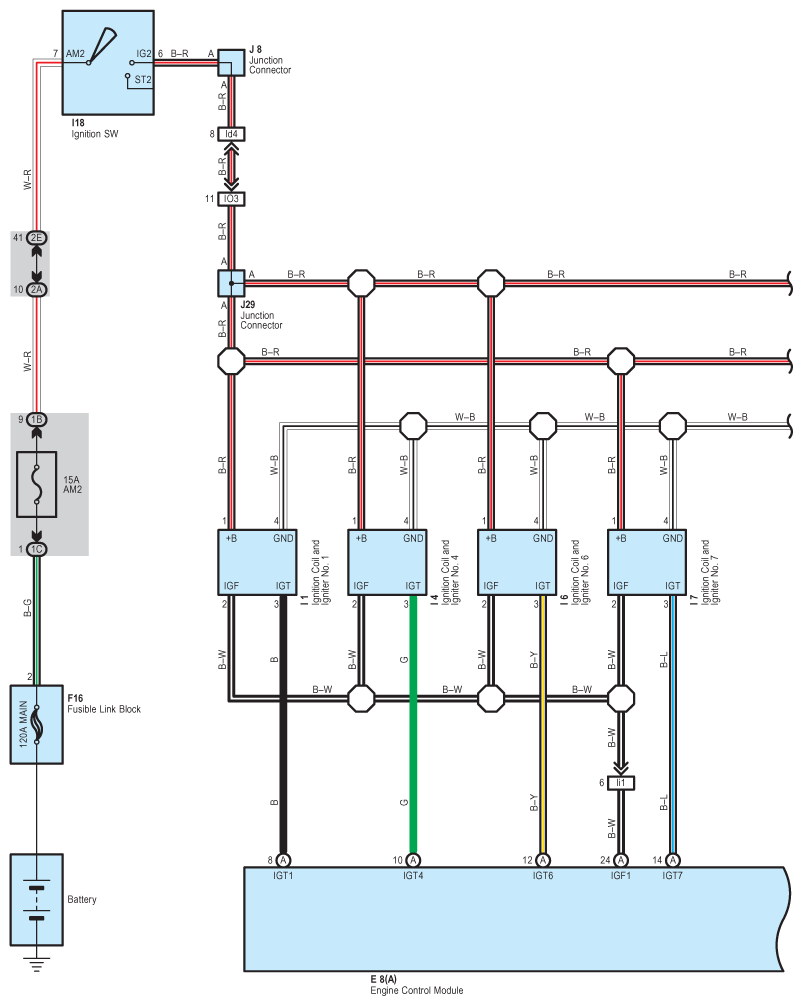

Fig 1: Ignition - Wiring Diagram (1 Of 2)
G08922709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

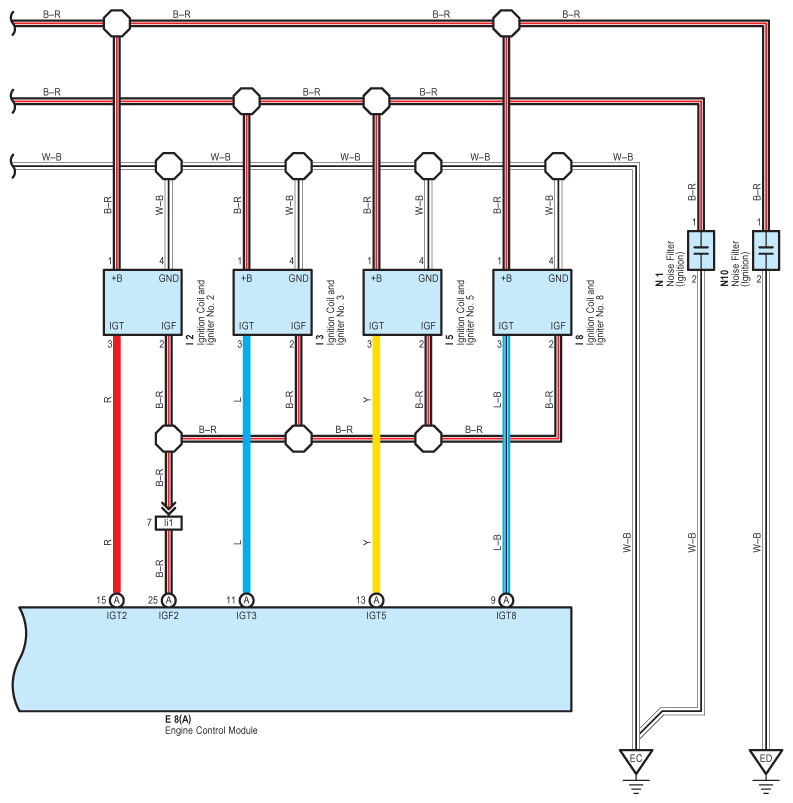

Fig 2: Ignition - Wiring Diagram (2 Of 2)
G08922710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
