Multi-Display without Navigation System: Notes

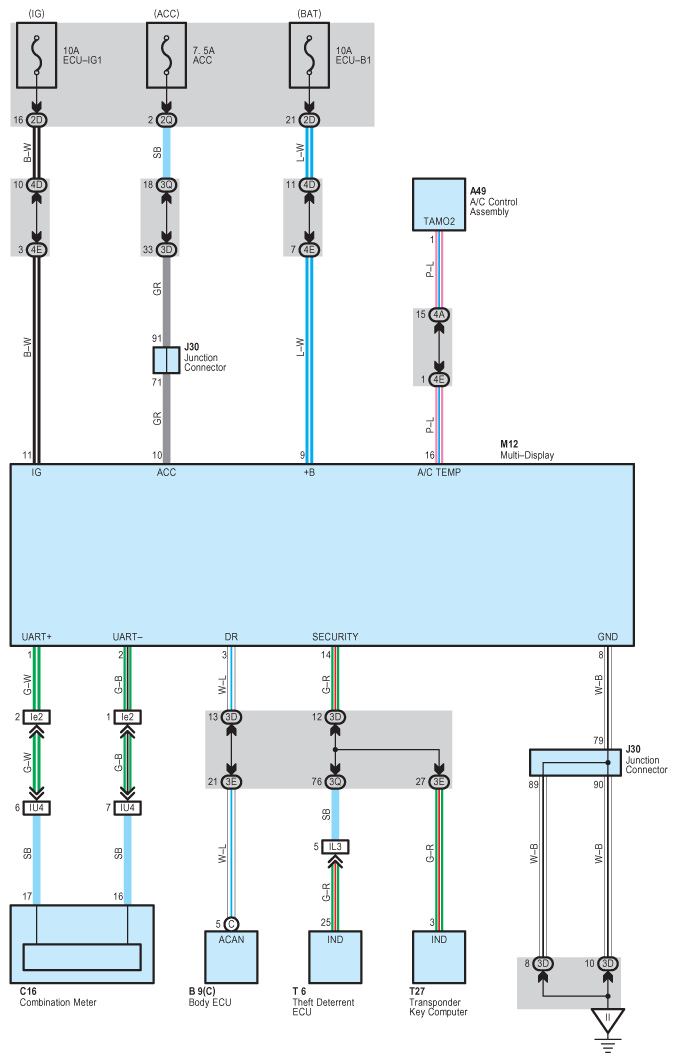

Fig 1: Multi-Display Without Navigation System - Circuit Diagram

G08922897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
