Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Multiplex Communication System - CAN >> Notes

Multiplex Communication System - CAN: Notes

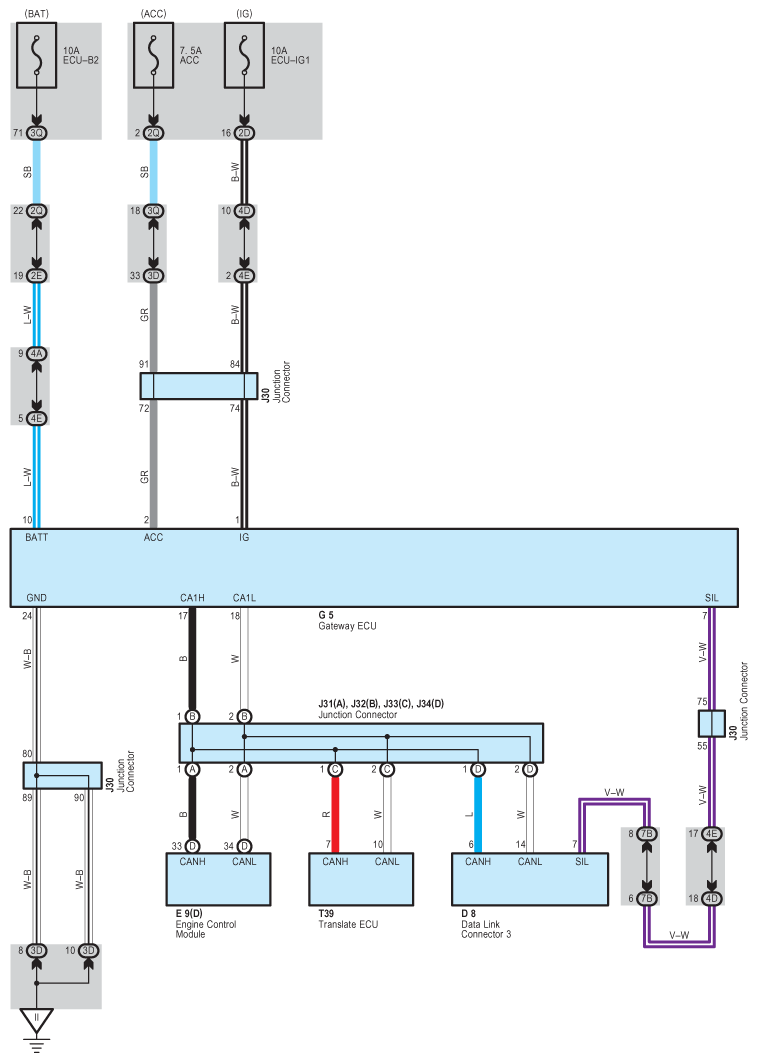

Fig 1: Multiplex Communication System - CAN - Circuit Diagram

G08922788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
