System Diagram

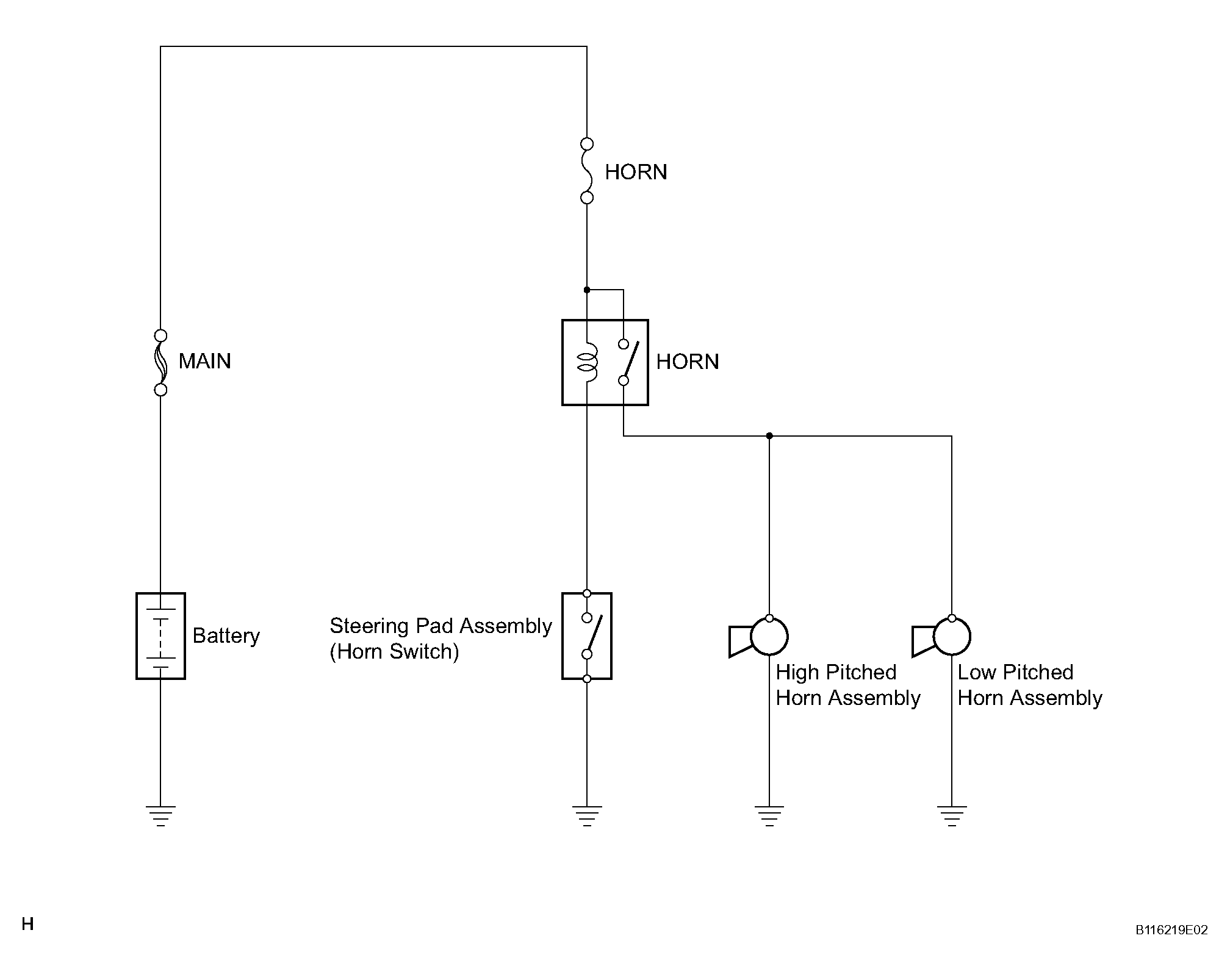

Fig 1: Identifying Horn System Diagram
G04065582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
