Home >> Lexus >> 2007 >> LX 470 >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2UZ-FE) >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

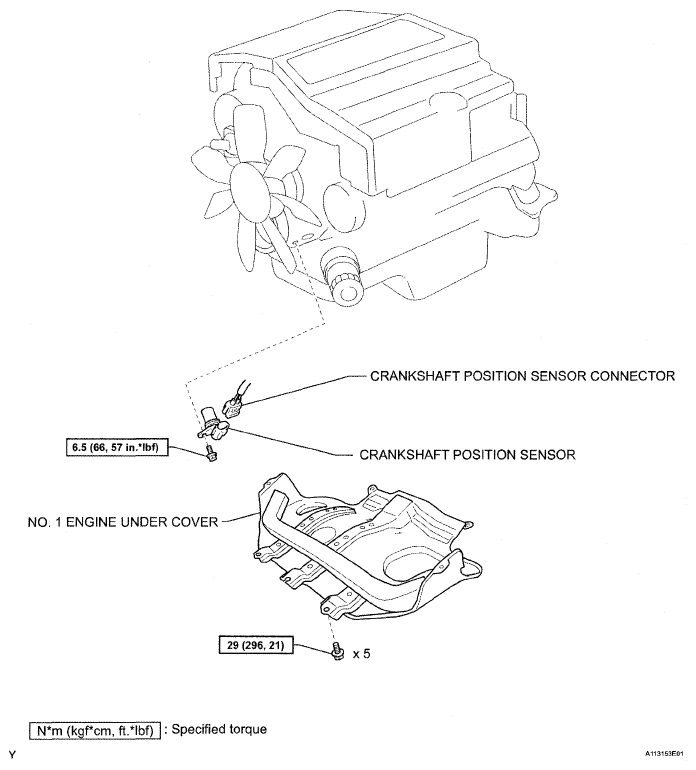

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
G05196916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
