Active Height Control Pump And Motor: Components

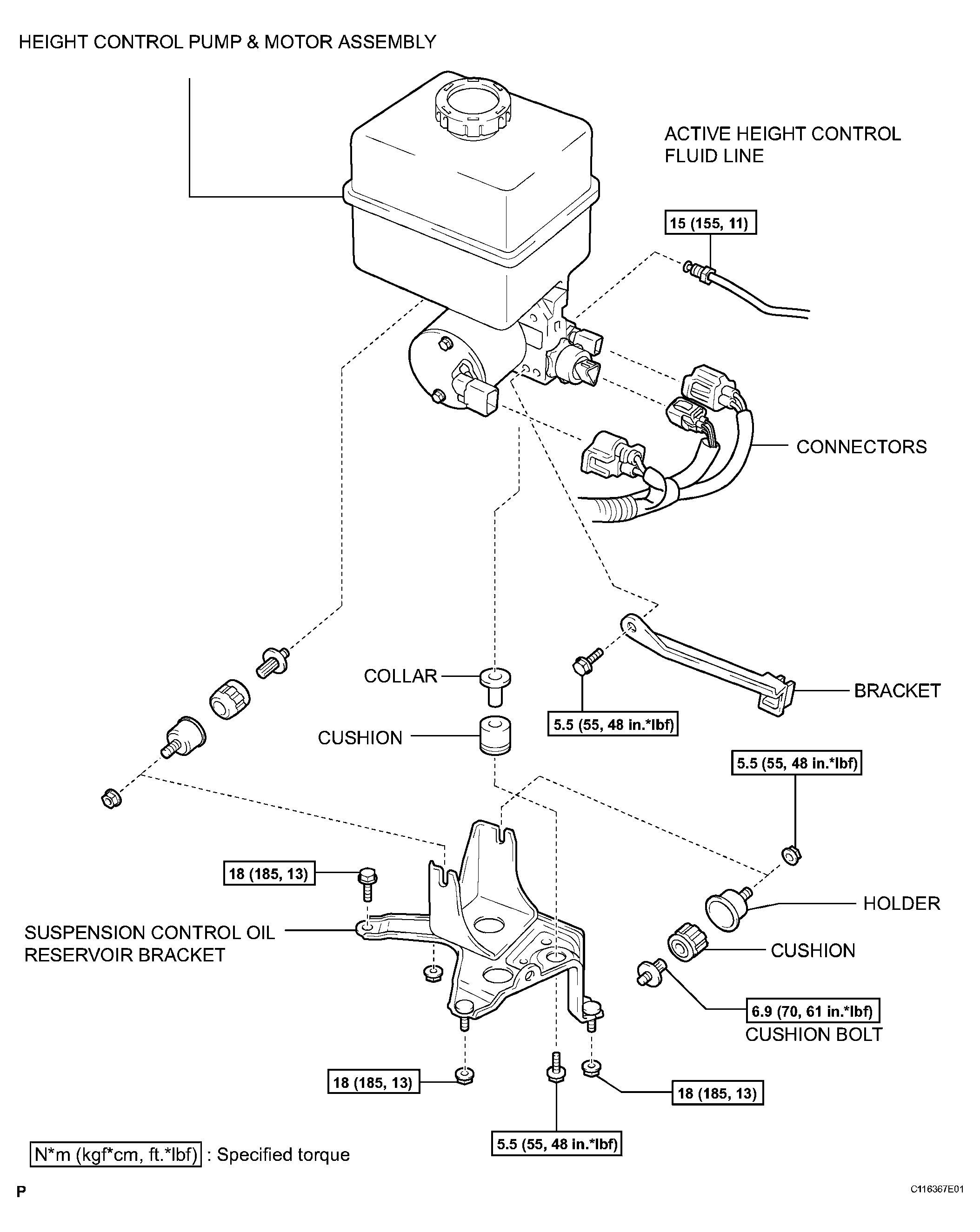

Fig 1: Exploded View Of Active Height Control Pump And Motor With Torque Specifications (1 Of 2)
G04063605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

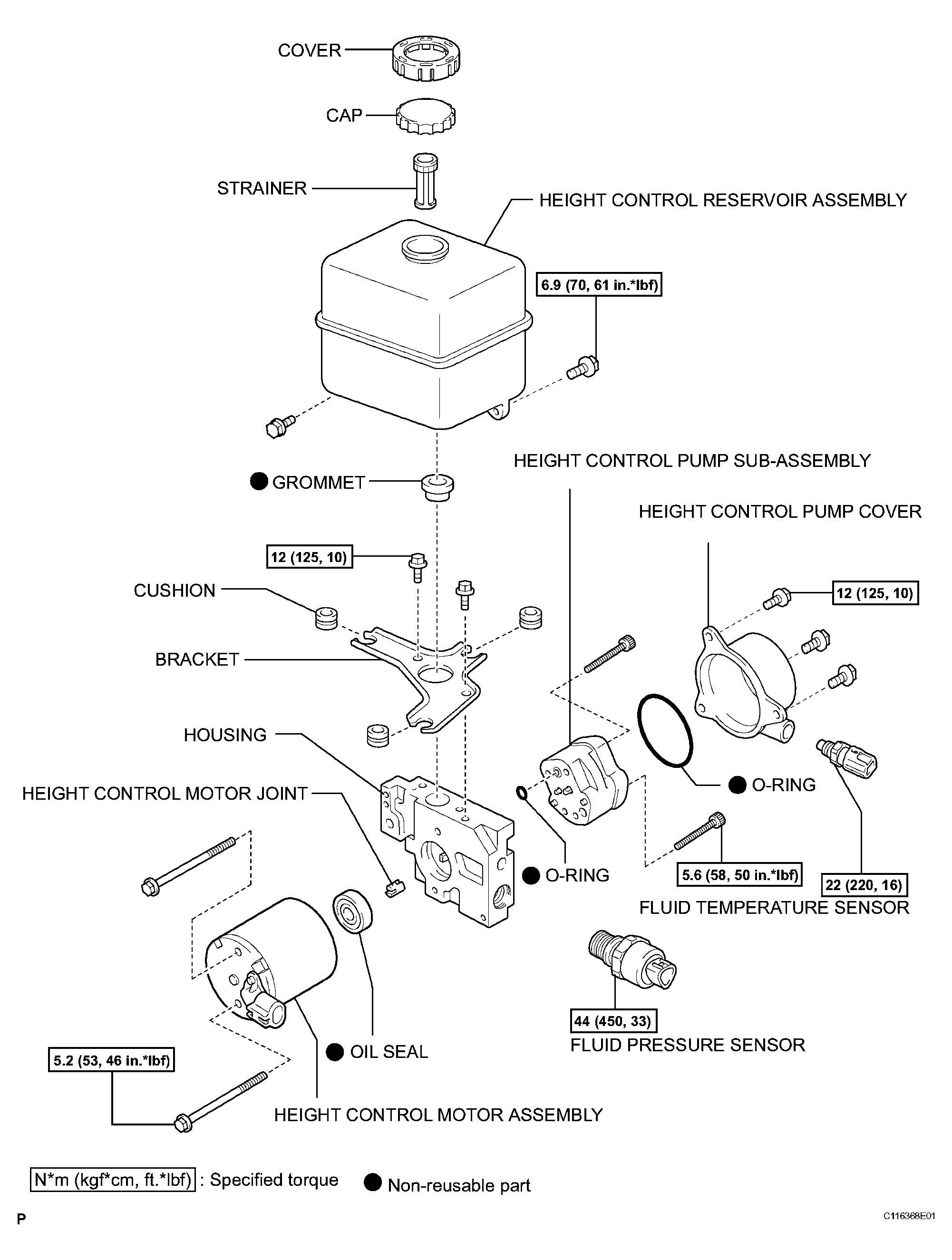

Fig 2: Exploded View Of Active Height Control Pump And Motor With Torque Specifications (2 Of 2)
G04063606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
