Control Valve Assembly: Inspection

  1. INSPECT CONTROL VALVE SOLENOID
    1. Disconnect the control valve assembly connector.
    2. Check continuity between terminals 2 and 1, 3, 4, 5 of the control valve assembly connector.

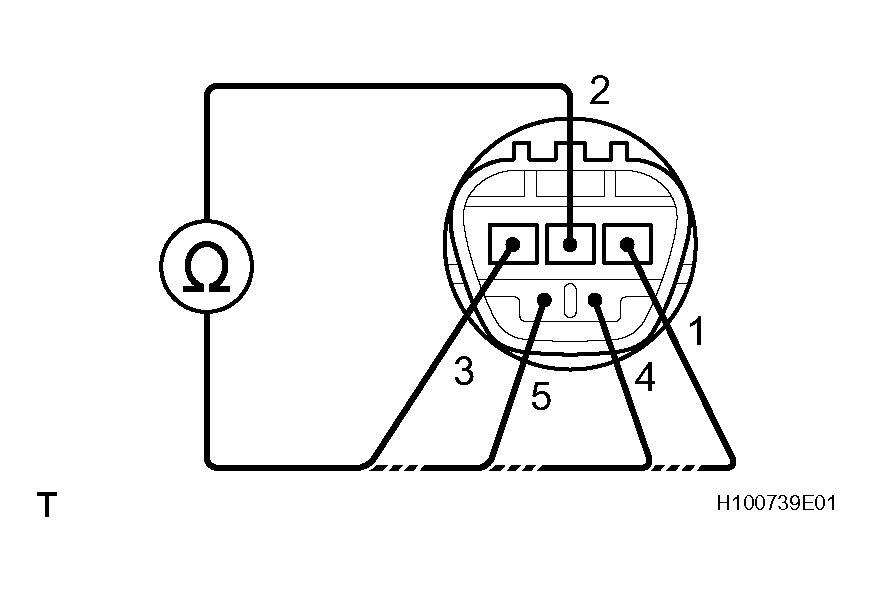

    Fig 1: Checking Continuity Between Terminals 2 And 1, 3, 4, 5 Of Control Valve Assembly Connector
    G04063619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
