Damping Force Control Actuator: Components

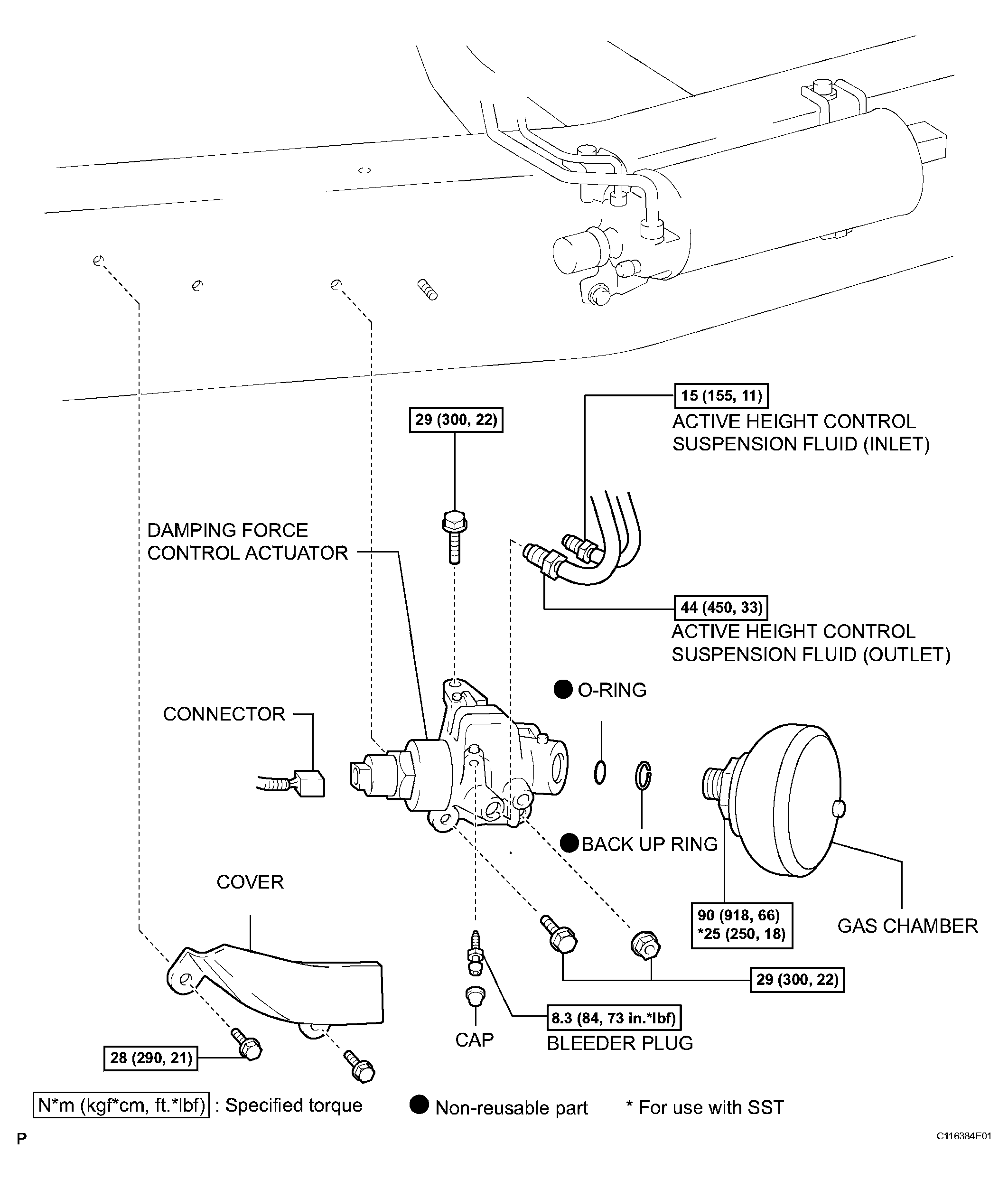

Fig 1: Exploded View Of Damping Force Control Actuator With Torque Specifications
G04063631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
