Home >> Lexus >> 2007 >> RX 350 AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Charging >> Notes

OEM System Circuits: Charging: Notes

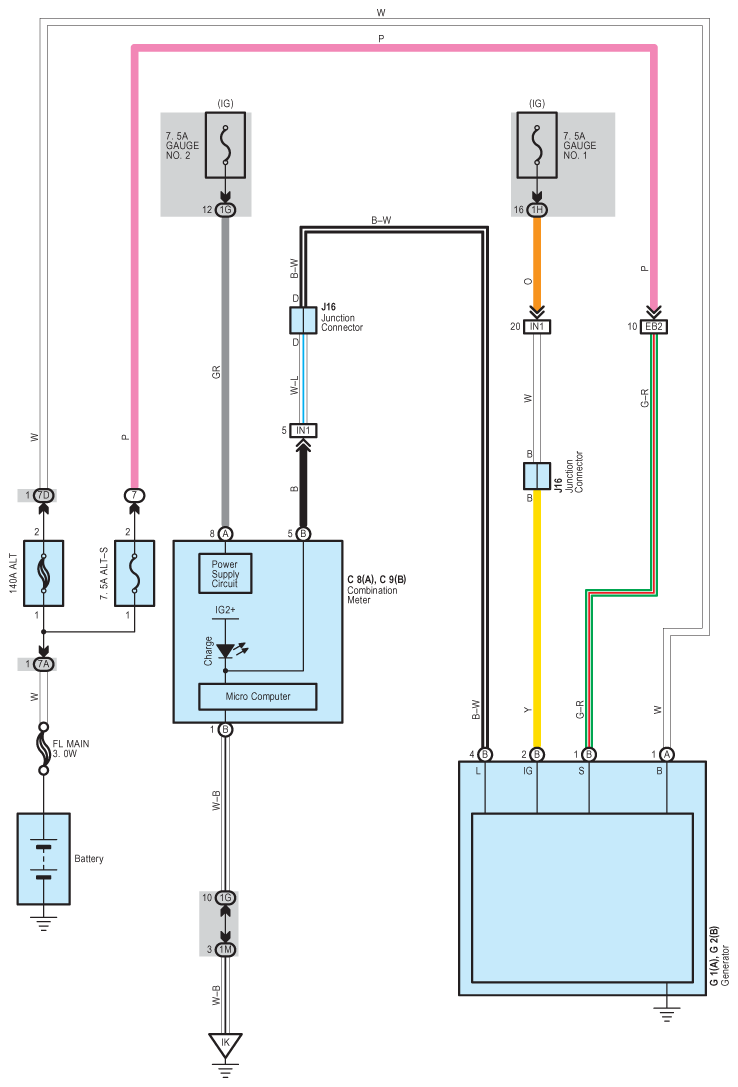

Fig 1: Charging - Circuit Diagram
G08921864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
