Home >> Lexus >> 2007 >> RX 350 AWD >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control >> Height Control Sensor >> Components

Height Control Sensor: Components

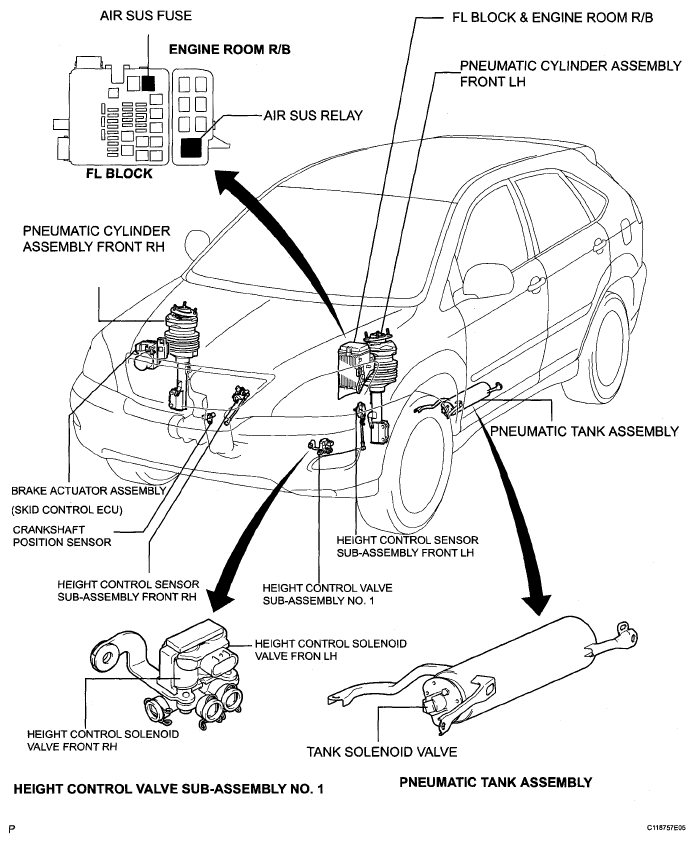

Fig 1: Identifying Height Control Sensor Replacement Components (1 Of 3)
G05269907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

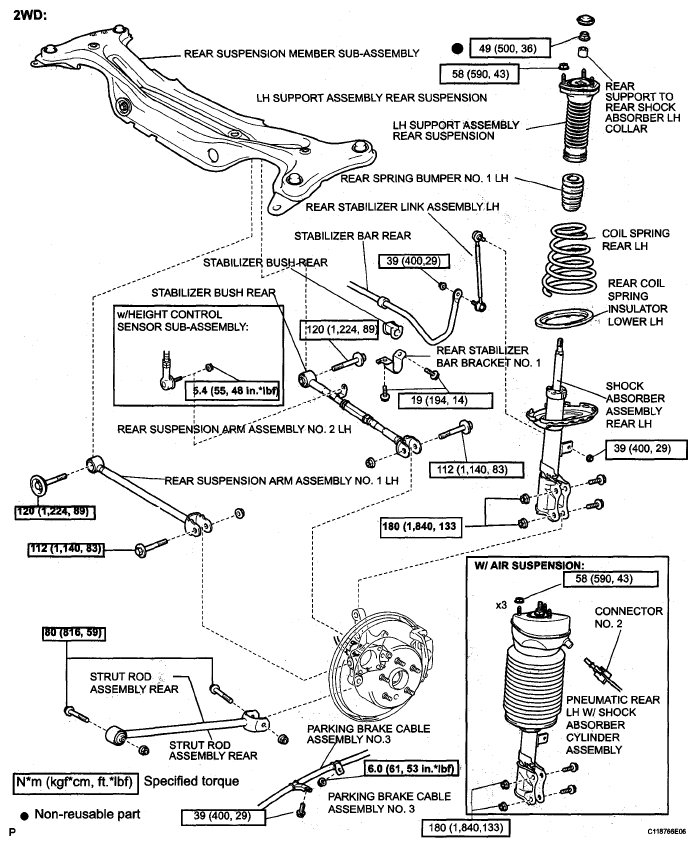

Fig 2: Identifying Height Control Sensor Replacement Components With Torque Specifications (2 Of 3)
G05269908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

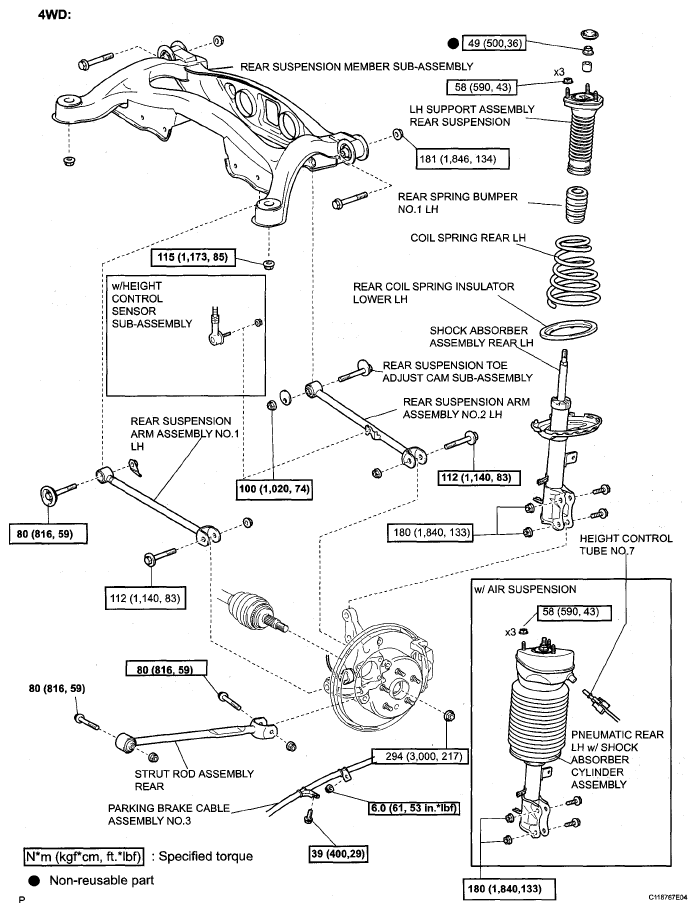

Fig 3: Identifying Height Control Sensor Replacement Components With Torque Specifications (3 Of 3)
G05269909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
