Height Control Valve: Components

Fig 1: Identifying Height Control Valve Replacement Components (1 Of 3)
G05269918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

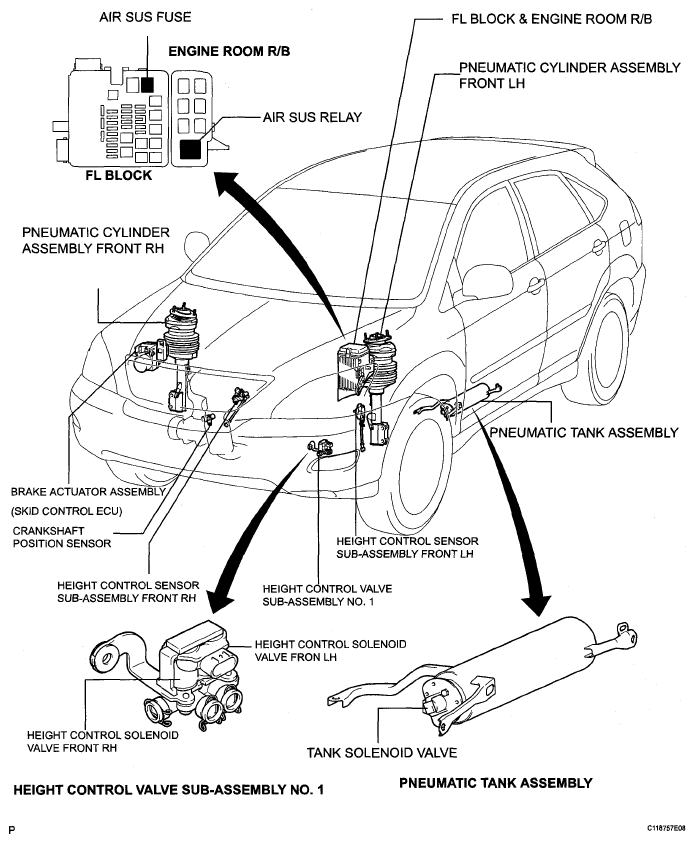

Fig 2: Identifying Height Control Valve Replacement Components (2 Of 3)
G05269919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

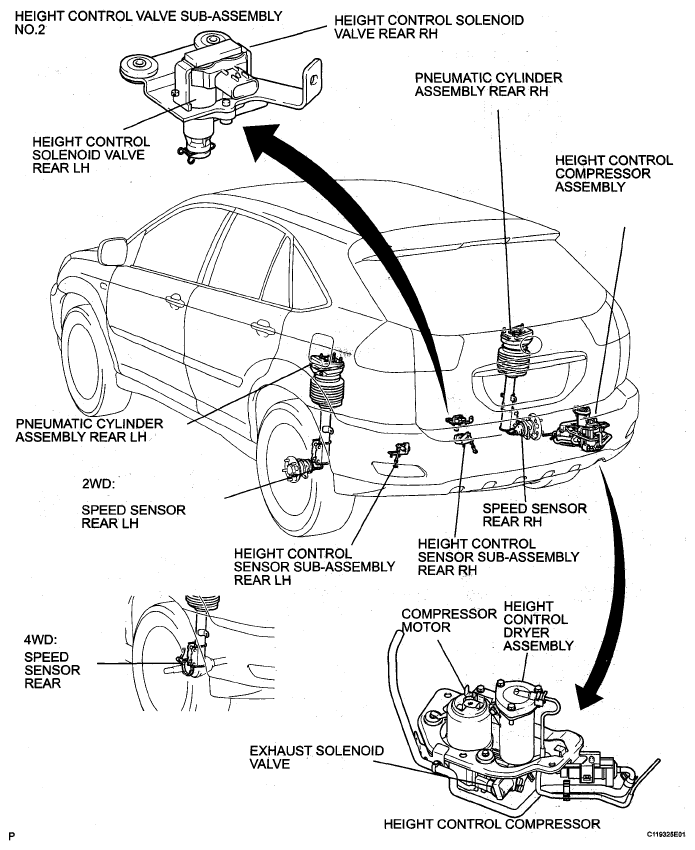

Fig 3: Identifying Height Control Valve Replacement Components (3 Of 3)
G05269920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
